Elecbee Bootloader Programmer Module Test Tool PCB Test Fixture 1x10P Upload for Pro Mini

SKU: EB0046921

Favorites

Key Features

xa0

- Number of Pins: 1X10P

- Pin pitch: 2.54mm

- Probe head type: P75-E3 (cone), gold-plated, durable

- Probe head applicable pad: through pad, surface pad

- Probe receptacle type: R75-3W

- Probe receptacle tail specifications: 0.64X0.64MM, apply to DuPont cable

- Wire slot specifications: width 6mm, height 6mm (can pass through 12 DuPont line)

- Operating current: Each pin 1A (max)

- Operating voltage: 30V (max)

Specifications

Show Similar Products >

Description

Description:

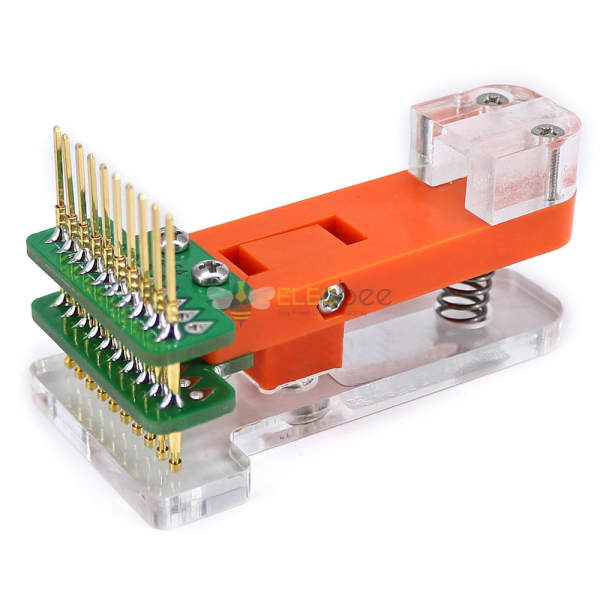

This is a test fixture dedicated to module testing and bootloader burning. It is suitable for modules and boards without soldering pin headers and can be used to upload bootloader and Arduino sketch to Arduino Pro Mini / OPEN-SMART Mini ATmega8 without soldering pin headers.

1 x Bootloader Programmer Module (the pro mini is not included)

OPEN-SMART-Bootloader-Programmer-Module-Test-Tool-PCB-Test-Fixture-1x10P-Upload-for-Pro-Mini-1628572
