Elecbee Test Tool PCB Test Fixture 1x3P 2.54MM Pitch Gold-plated Probe Module

SKU: EB0045860

Favorites

Key Features

- Number of Pins: 1X3P

- Pin pitch: 2.54mm

- Probe head type: P75-E3 (cone), gold-plated, durable

- The probe head applicable pad: through the pad, surface pad

- Probe receptacle type: R75-3W

- Probe receptacle tail specifications: 0.64X0.64MM, apply to DuPont cable

- Wire slot specifications: width 6mm, height 6mm (can pass through 12 DuPont line)

- Operating current: Each pin 1A (max)

- Operating voltage: 30V (max)

Specifications

Show Similar Products >

Attribute

Value

MCU/SoC Model

Test Tool PCB

CPU Architecture

TIONIMAGE0

Memory

Raspberry Pi OS/Linux

Show Similar Products >

Description

Introduction:

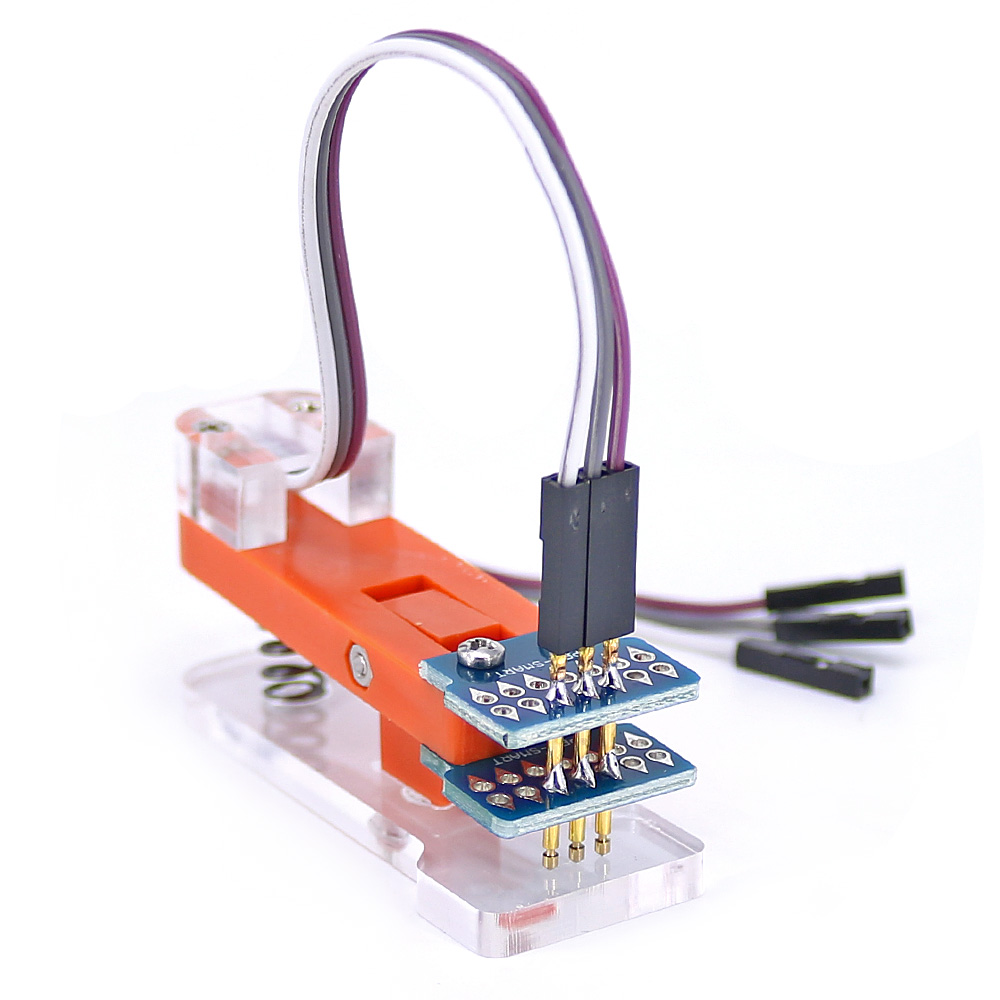

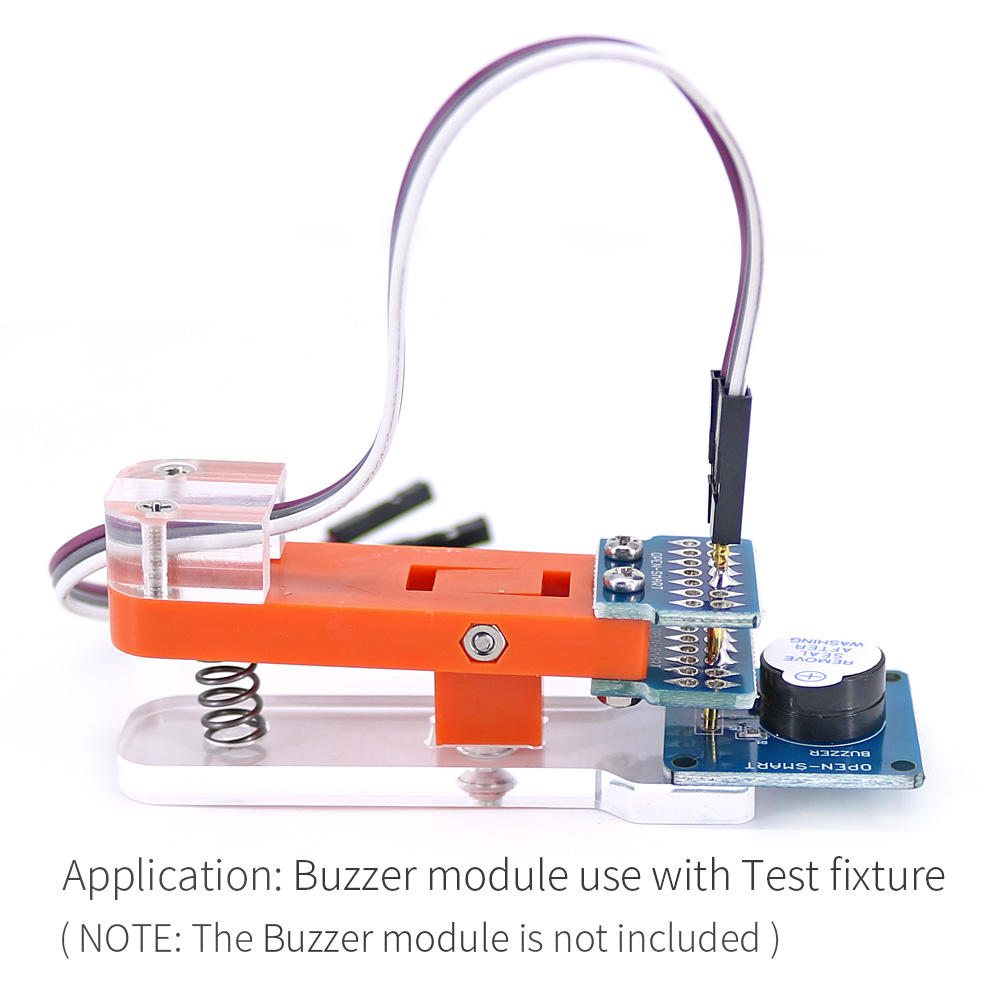

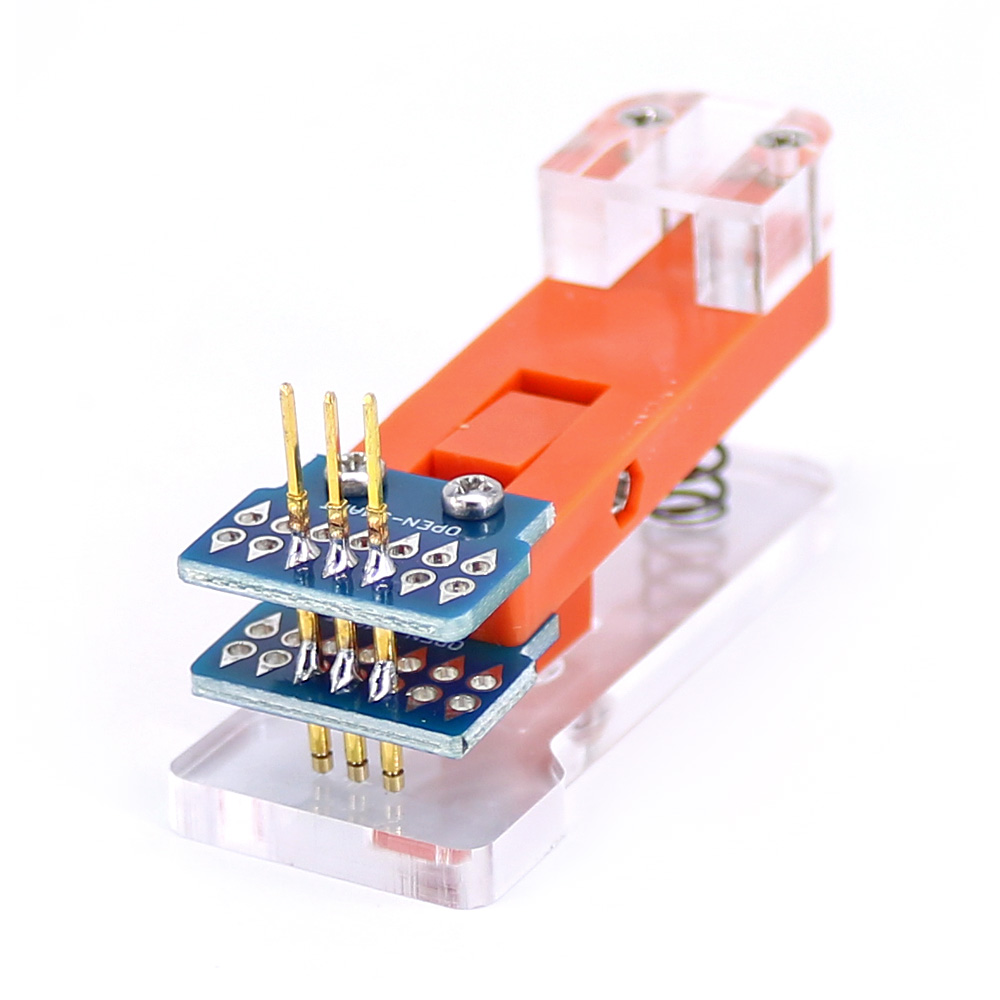

This is a test fixture dedicated to module testing. It is suitable for modules and boards without soldering pin headers.

1 x PCB Test Fixture
1 x 3P Cable

OPEN-SMART-Test-Tool-PCB-Test-Fixture-1x3P-254MM-Pitch-Gold-plated-Probe-Module-1628573
