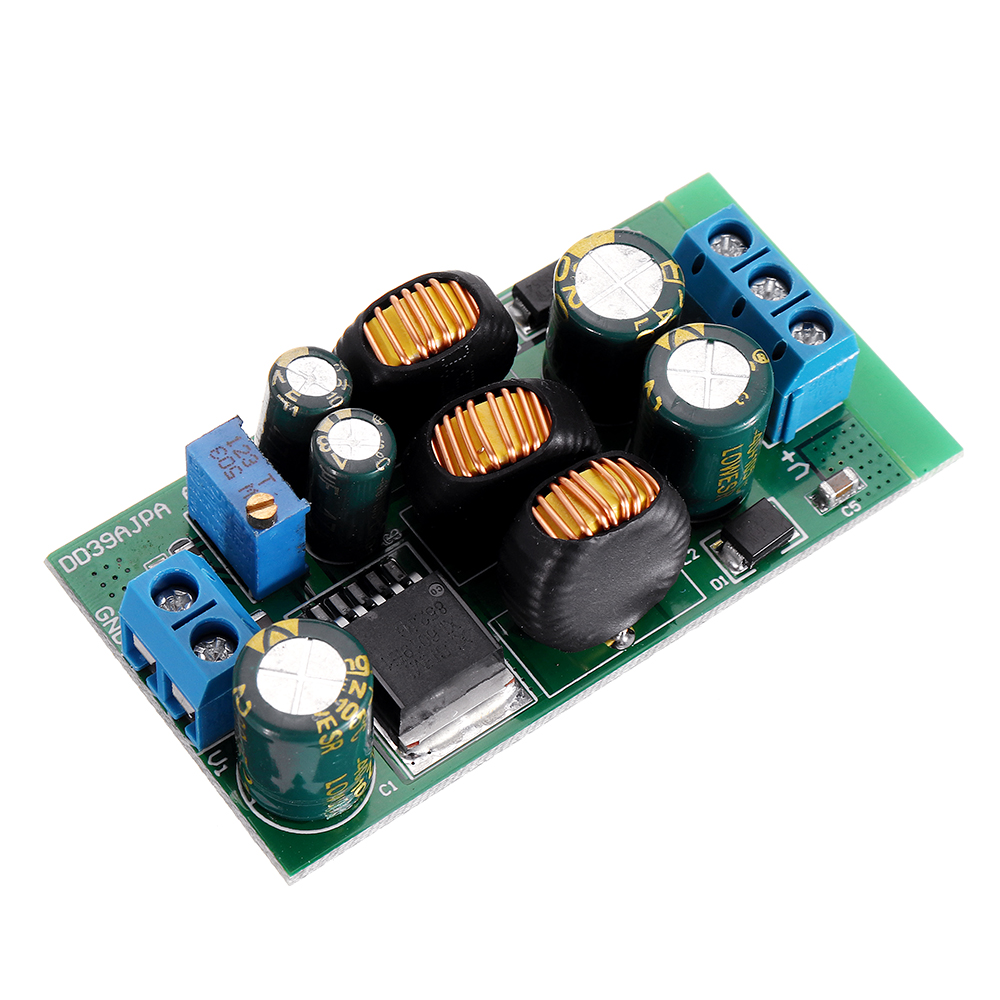

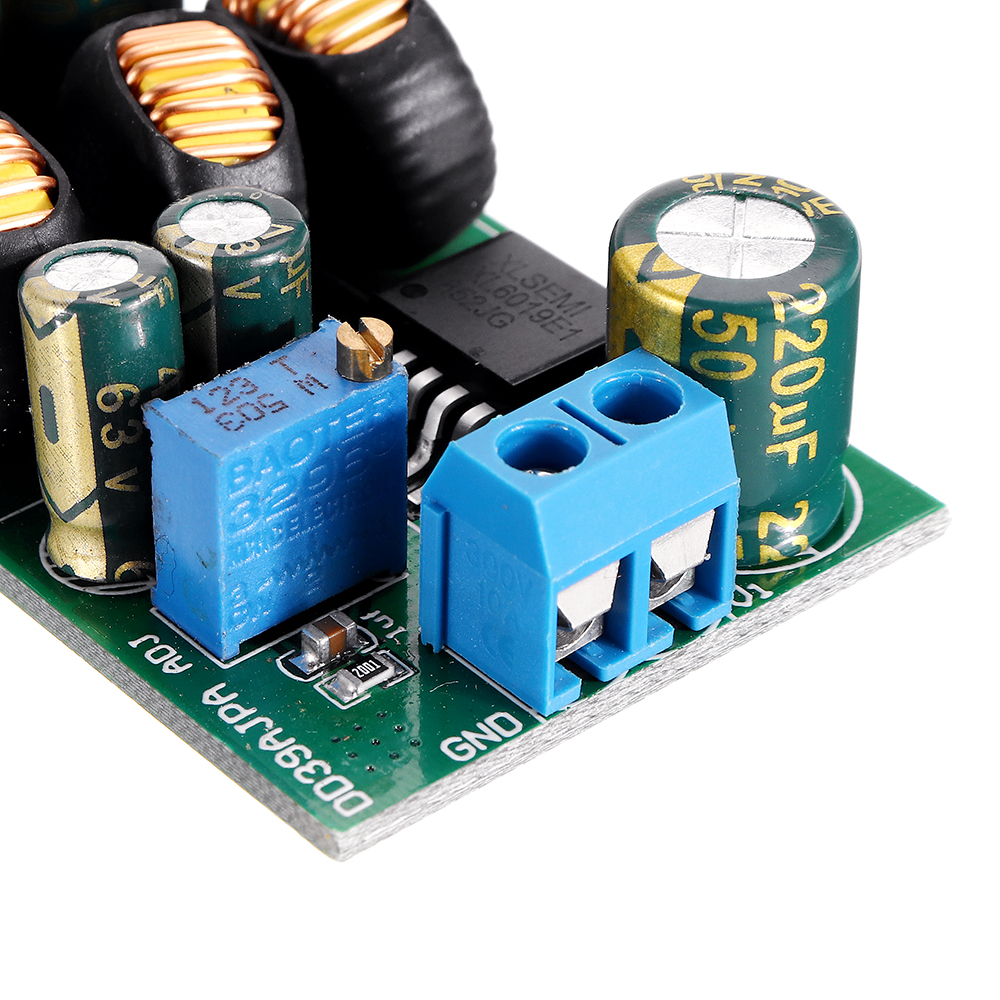

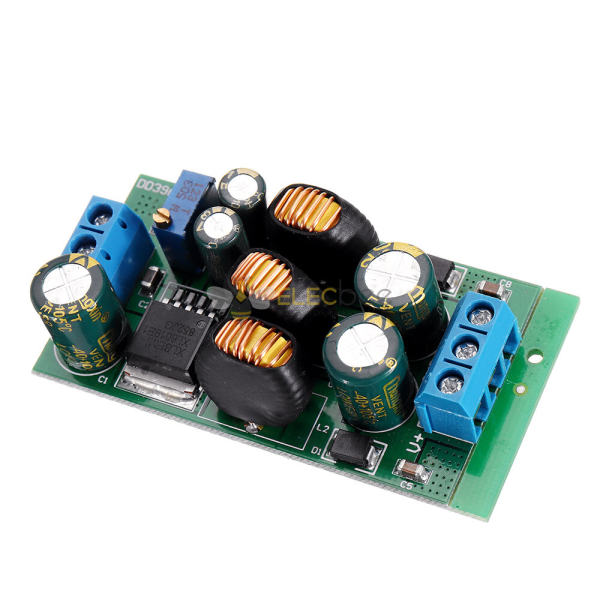

Elecbee DD39AJPA 2 in 1 20W Boost Buck Dual Output Voltage Module 3.6-30V to ±3-30V Adjustable Output DC Step Up Step Down Converter Board
SKU: EB0047736
Favorites
Key Features
xa0
- High efficiency up to 89%
- Built in Frequency Compensation
- Built in Soft-Start Function
- Built in Thermal Shutdown Function
- Built in Current Limit Function
xa0
Applications:
xa0xa0
ADC/DAC/Operational Amplifier Reference voltage
RS232 RS485 RS422 Bus
Audio equipment
Low power audio power supply
Car audio amplifier dual power
LCD power supply
Instrumentation equipment
Instrumentation multimeter
xa0 xa0 xa0 xa0
Note:
xa0
1. In order to obtain a more stable voltage, it is recommended that the output is greater than 15MA.
2. V- cannot be used alone, or no voltage output.But you can just use V+ .
3. The startup current of the module is 2.5-3 times the operating current.
4. Increasing the 1UF-10UF MLCC capacitor reduces the startup current.
xa0
Show More
Specifications
Attribute
Value
Search
Wireless Capability
Bluetooth + Cellular
Model
DD39AJPA
Description
Description:
Input voltage: 3.6~30V
Output voltage: ±3~±30V adjustable
Maximum output power: 20W
Conversion efficiency :69-89%
Quiescent current: 3-4mA
Working frequency 180KHz
Operating temperature : -40 to +85 ℃
Size : 60 x 34 x 15 mm
Weight : 33g
The maximum output power can reach 20W, but the maximum power will vary under different conditions. For details, please refer to the following table(10-80% of the maximum power is the most reliable):
5V/±5V Output

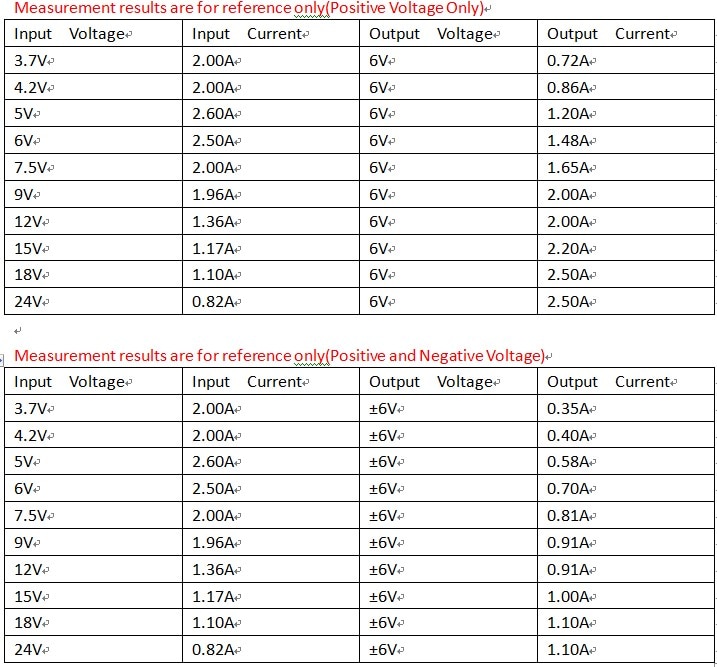

6V/±6V Output

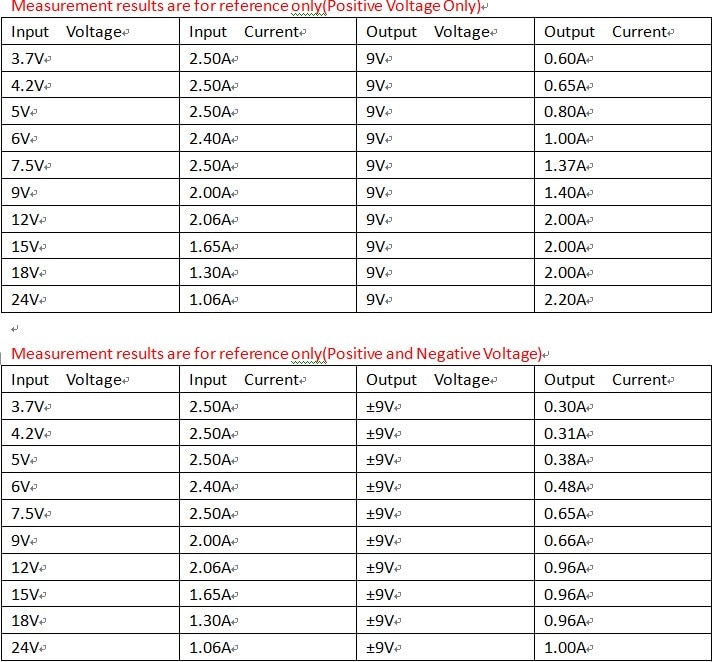

9V/±9V Output

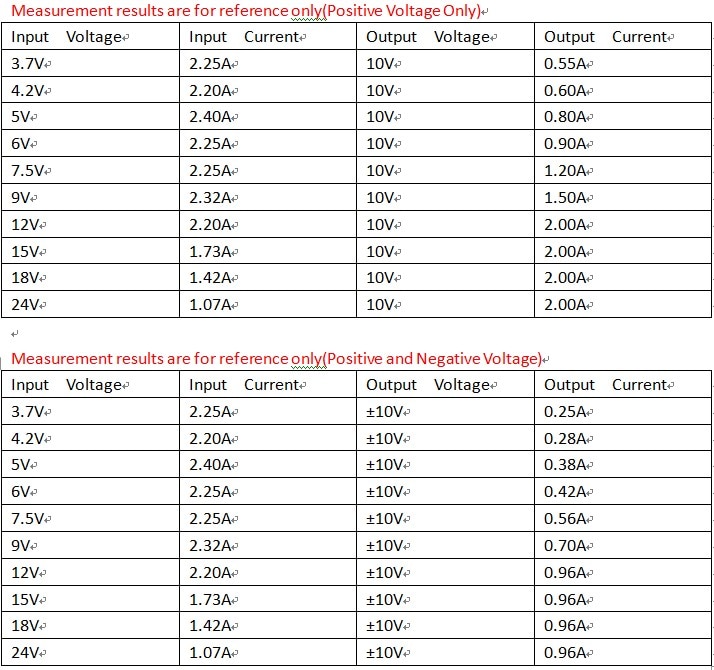

10V/±10V Output

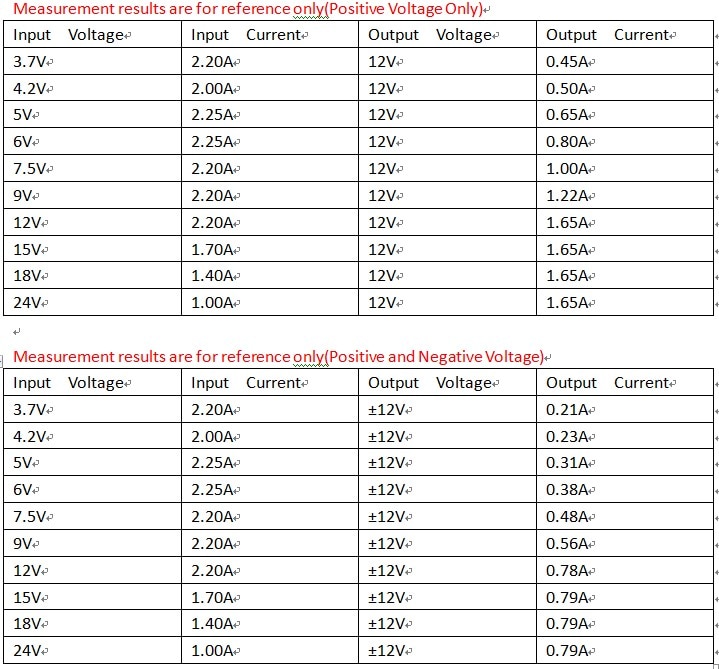

12V/±12V Output

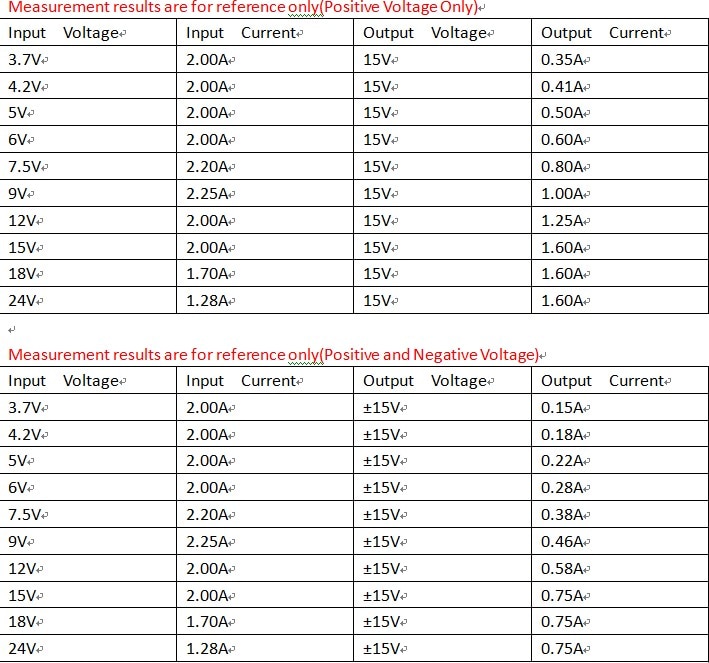

15V/±15V Output

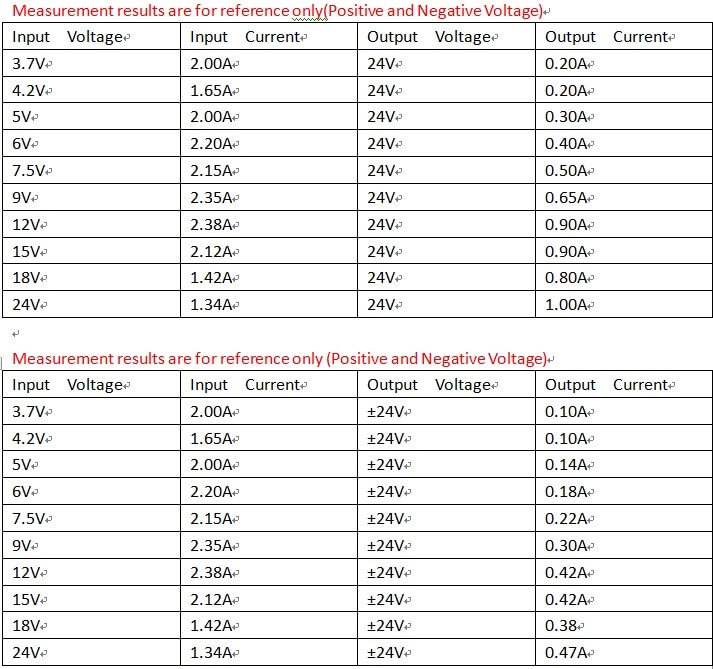

24V/±24V Output
Package Included:
1 x 3.6-30V to ±3-30V Adjustable Output DC Converter Board
