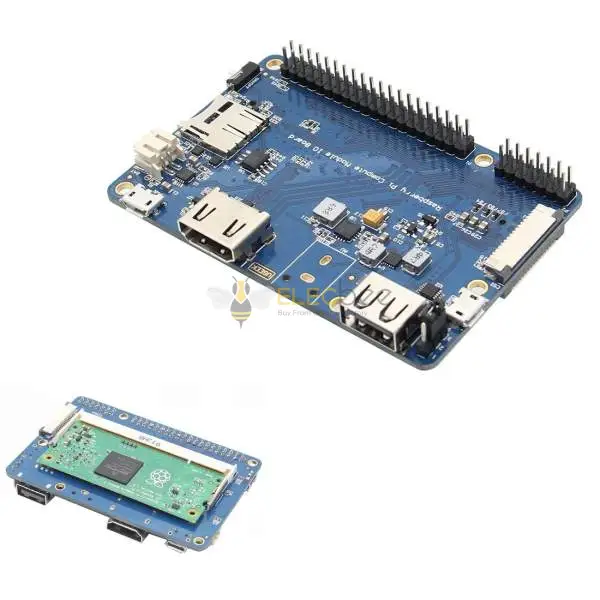

Elecbee Raspberry Pi CM3+ expansion board, CM3 Lite extension board, GPIO expansion for Raspberry Pi, battery-powered IO board, compact Raspberry Pi CM expansion

SKU: EB0049589

Favorites

Key Features

Features:

Can use CM3+, CM3 or CM3L to implement the Raspberry Pi 3B/3B+ function;
More GPIO extensions than Raspberry Pi 3B: include standard HAT 40PIN GPIO output (fully compatible with Raspberry Pi 3B/3B+) and extra extension 14 PIN GPIO;
Compatible with various expansion boards of Raspberry Pi
Support power the board via battery, can read battery capacity by programing
Support RTC (need to power the board via PH2.0 battery port); Support CSI/DSI; Support OTG interface (via Micro USB Port for data); Support CM3+, CM3 (build in 4GB NAND Flash), support CM3L (TF card slot has a place to use)

Specifications

Show Similar Products >

Attribute

Value

MCU/SoC Model

CM3 CM3Lite Expansion

CPU Architecture

TIONIMAGE0

Memory

Raspberry Pi OS/Linux

Debug Interface

CAN

Show Similar Products >

Description

CM IO board is an expansion board designed for Raspberry pi compute model CM3 and CM3 lite,(also support CM1). You can get the more wide range and more flexible application environment, you can get more simpler interface

Indicator light

D1, D2 are battery charge status lights

D1 is on and D2 is off: Charging (red light)

D1 is off and D2 is on: charging is complete (green light)

D1 on and D2 on: Test mode (red and green lights are on together)

D3 & D4

D3: Raspberry Pi ACT Status Light

D4: Power indicator

CM3--CM3Lite-IO-Expansion-Board-For-Raspberry-Pi-Computer-Module-1336679
