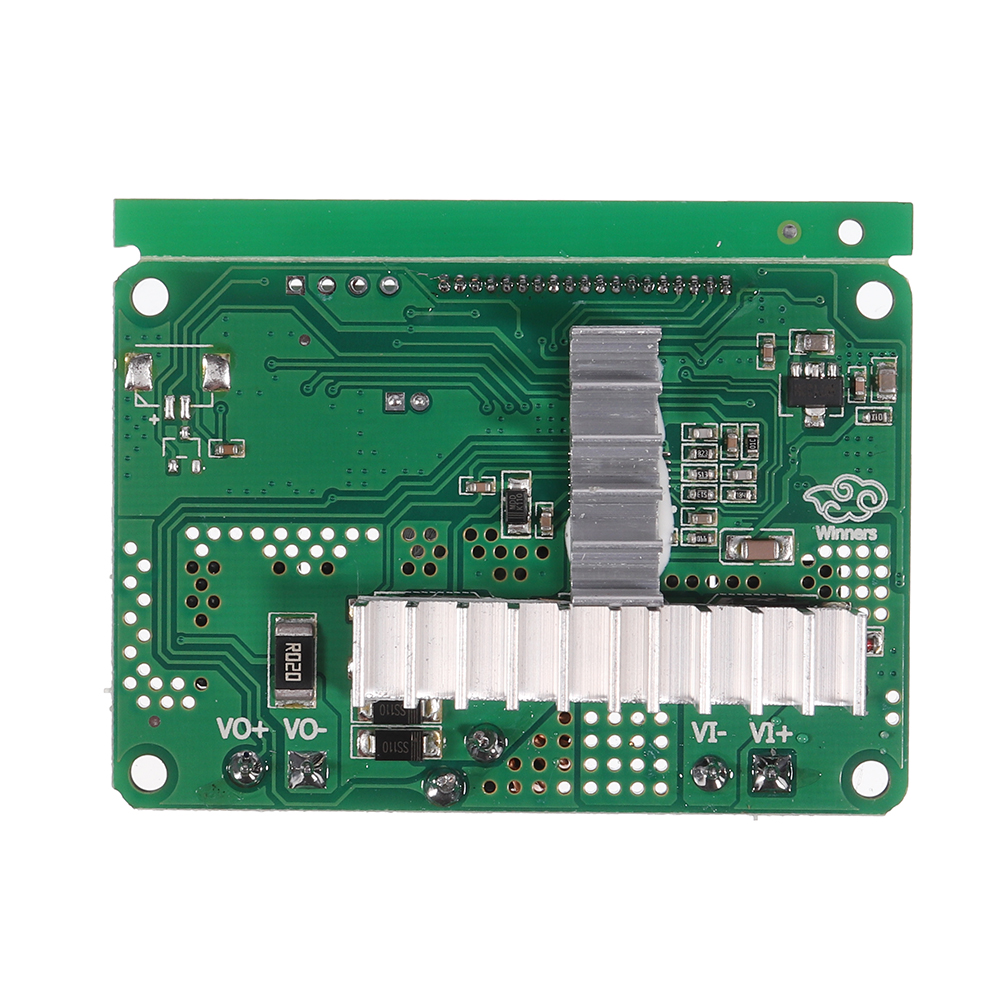

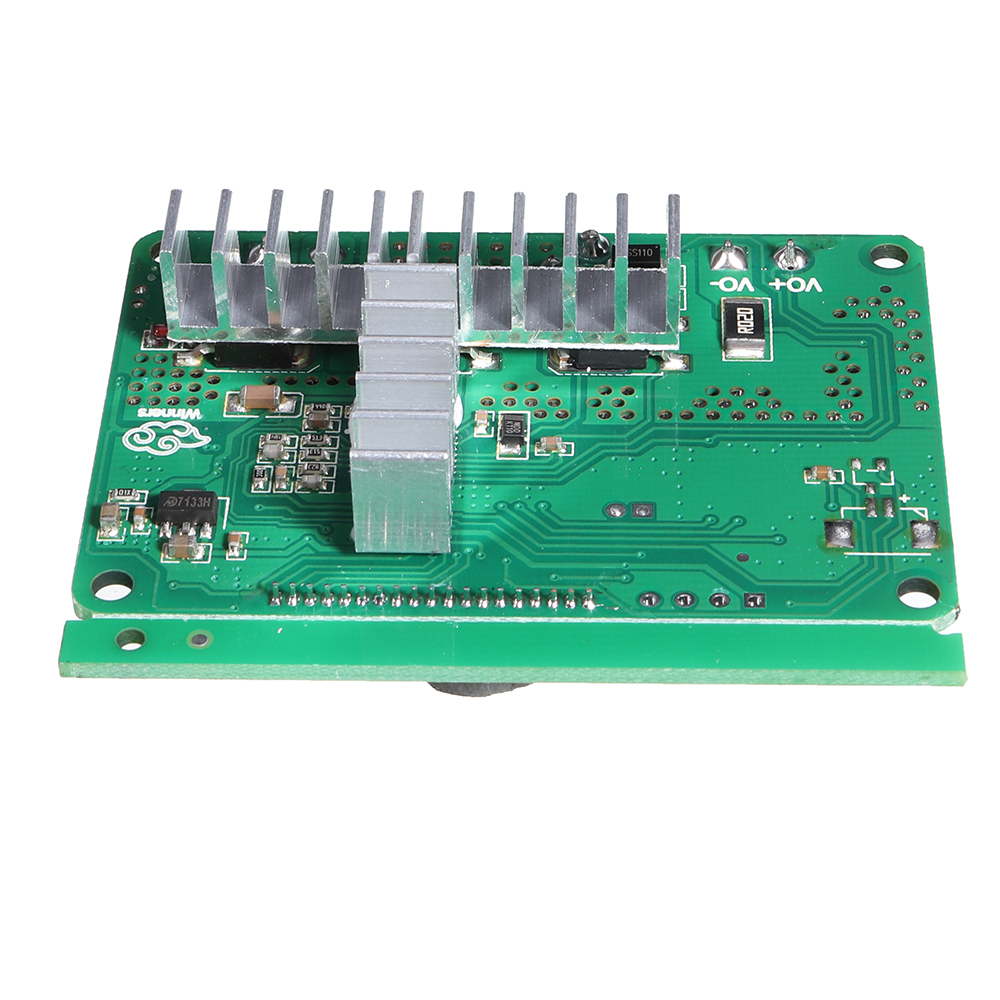

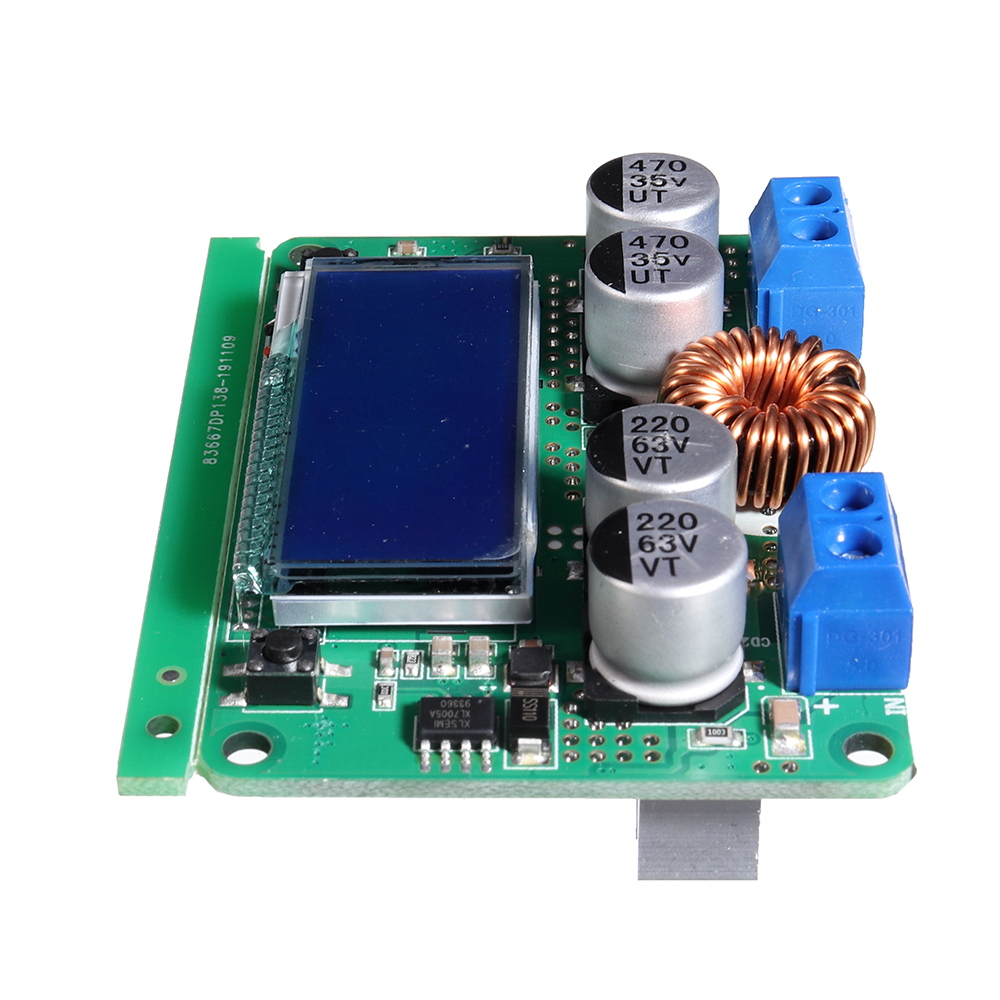

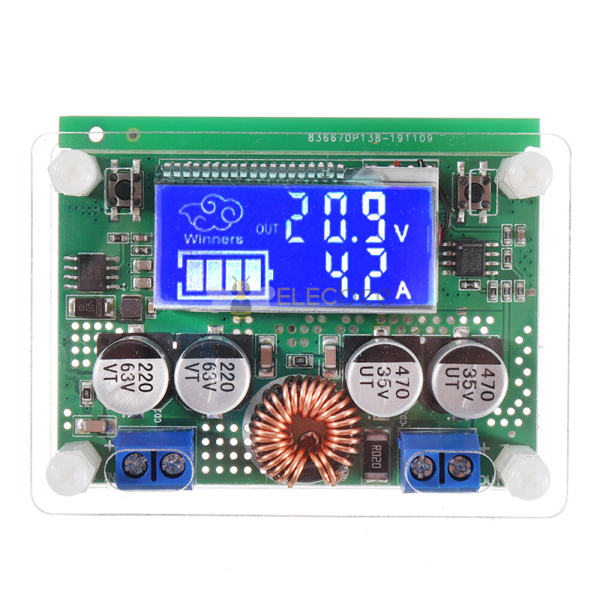

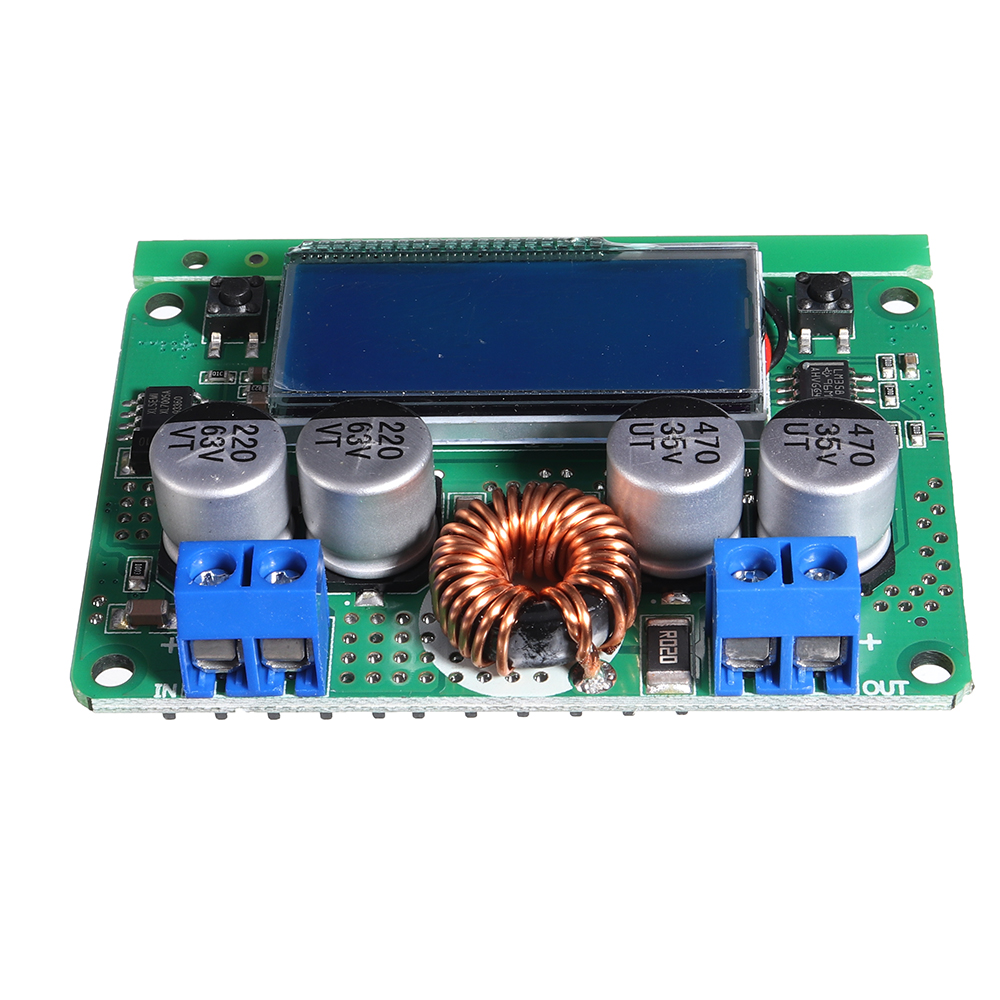

Elecbee 7A DC 60V Adjustable Step Down Regulator NC Power Supply Module Current Voltage Meter Buck Module
SKU: EB0045216
Favorites
Key Features
xa0
Input voltage: 8-60V, please keep the balance, it is recommended to use within 55V.
Output voltage: 3V-32V continuously adjustable, automatically save the last set voltage (input voltage must be higher than the output voltage 1V above).
Output current: maximum 7A, it is recommended to use within 5A, when the heat is big, please solve the heat dissipation problem by yourself. Note: The current size is adaptive to load, not adjustable.
Anti-anti-input: YES
Short circuit protection: YES
Accuracy: 1%, three voltage display, two current display, the unit is A.
Conversion efficiency: up to 95% (efficiency is related to input, output voltage, current and pressure).
Load regulation: S (I) ≤0.8%, voltage regulation: S (u) ≤0.8%
Size: 62mm * 44mm * 18mm
Weight: 45g
If used for charging, when charging is completed, please disconnect the battery terminal first, and then disconnect the input to prevent battery backflow damage to the module! Or add a anti-reflux diode at output.
xa0
Calibration instructions:
xa0
The module with a calibration function, do not worry about the problem of measurement shows inaccurate, if you find that the display is inaccurate or the value of stuck, or left and right buttons can not be mobilized voltage, you can use the following method of calibration.
xa0
Voltage calibration method:
xa0

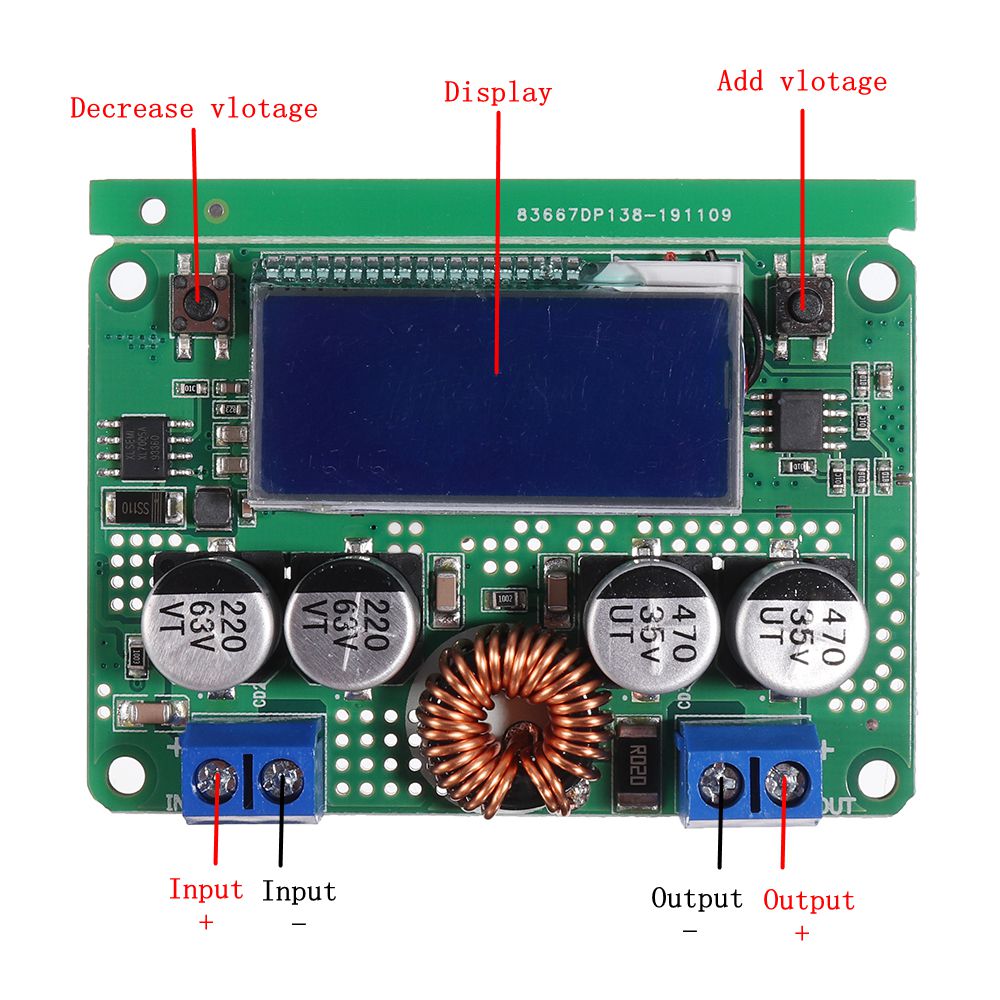

Under no-load condition, press and hold the left button to connect to the power supply, release the left button, the voltage value of the display begins to flash, measure the output voltage with a multimeter, and press the left and right keys to set the same value with the meter, Such as: multimeter measurement is 12.6V, the module set to 12.6V, it can be automatically saved three seconds, re-power voltage calibration is completed. The error can be calibrated within 0.05V, if the error is bigger, you can try again.
xa0
Current calibration method:
xa0
After calibrating the voltage, load, first use a multimeter to measure the actual current value, then power off the board, press and hold the right button to connect to the power, release the right button, the screen current value starts flashing, press the left and right button to adjust value the same with the multimeter, for example: the multimeter measurement value is 1.8A, the module can be adjusted to display 1.8A, three seconds automatically saved, re-power on the current calibration is completed.
xa0
Show More
Specifications
Attribute
Value
Search
Wireless Capability
Bluetooth
Model
DESCRIPTIONIMAGE0
Description

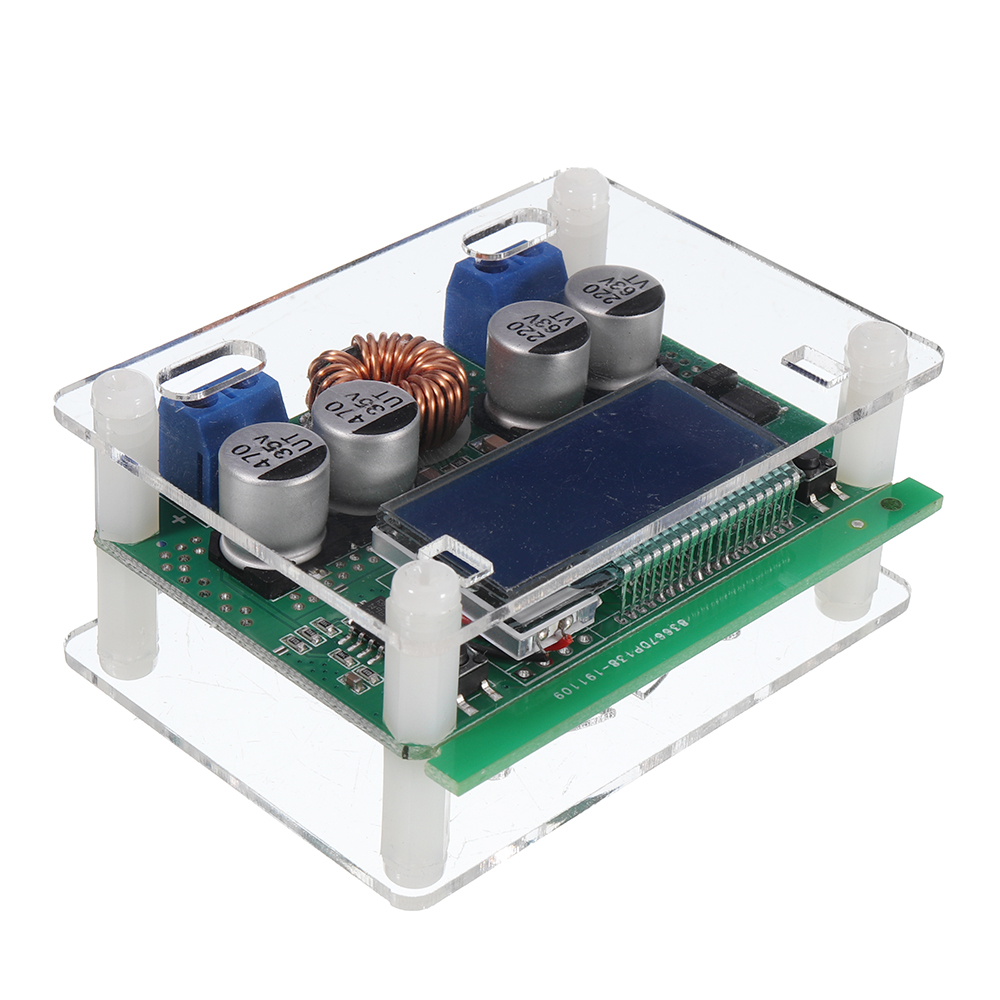

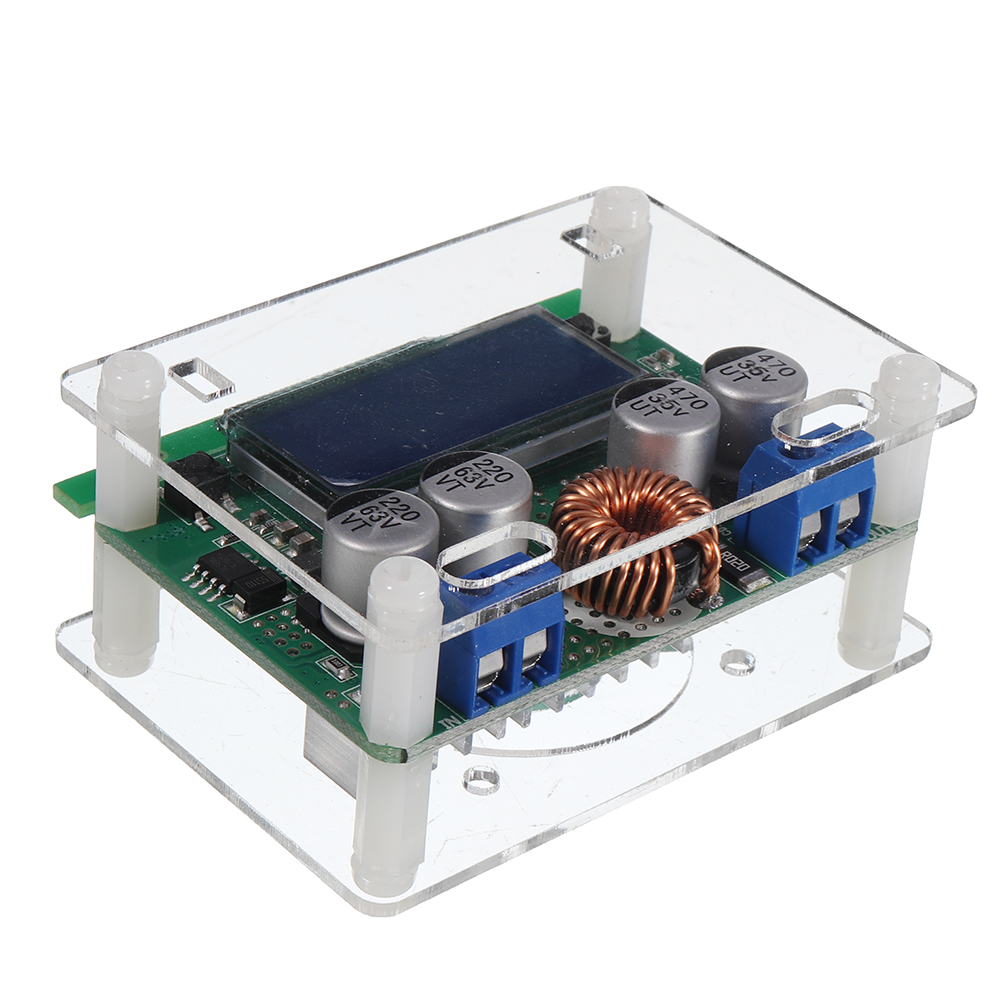

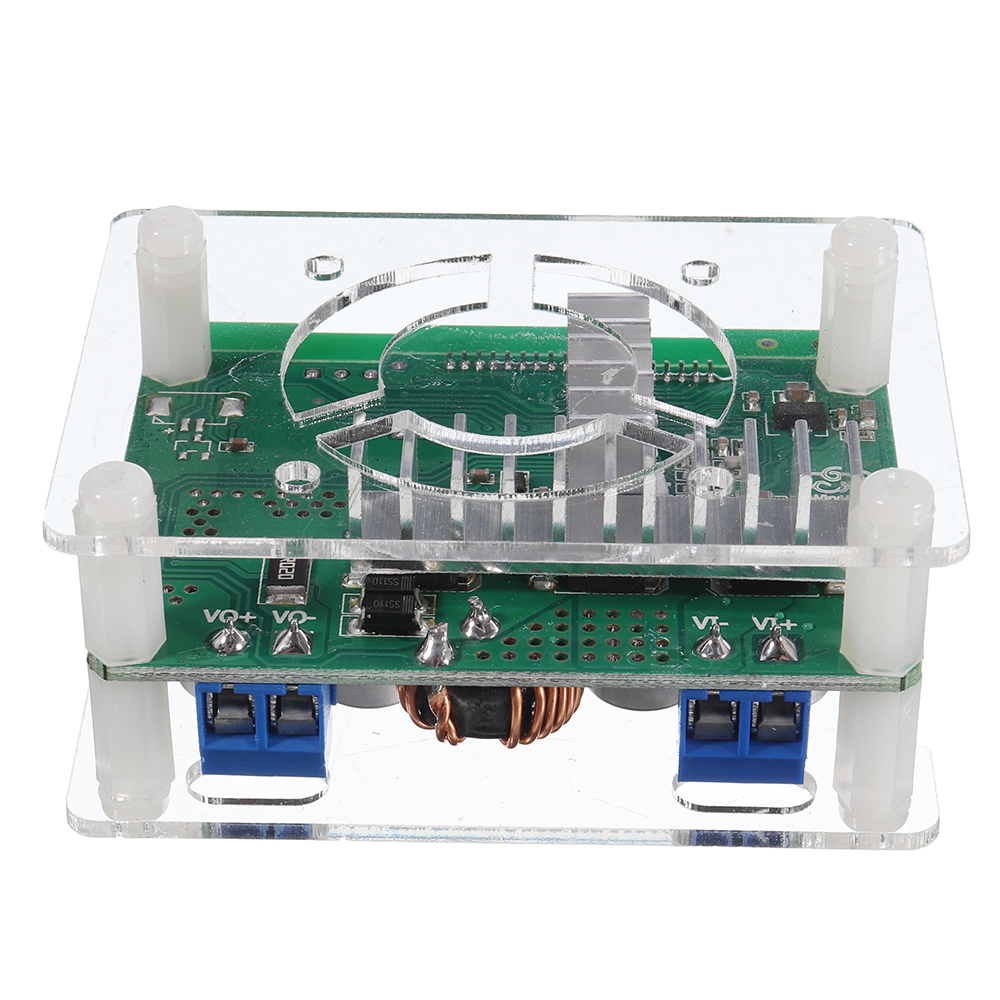

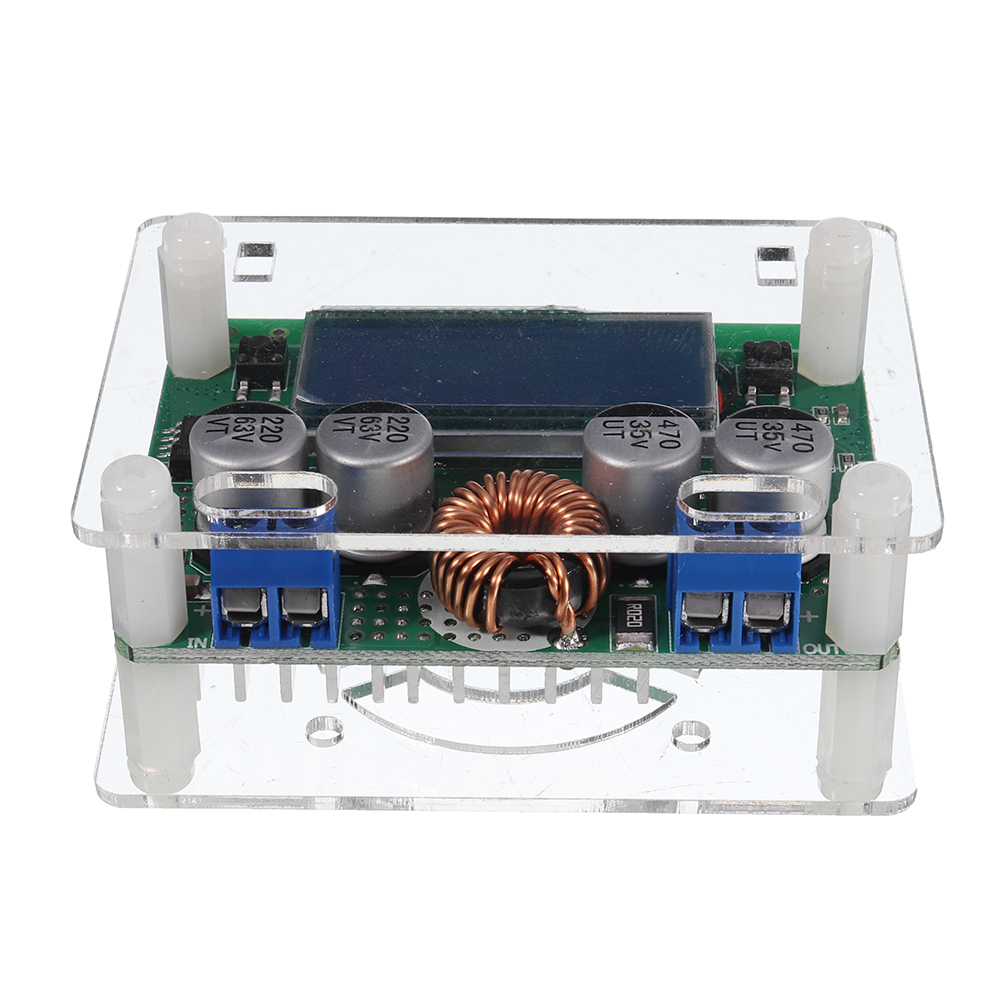

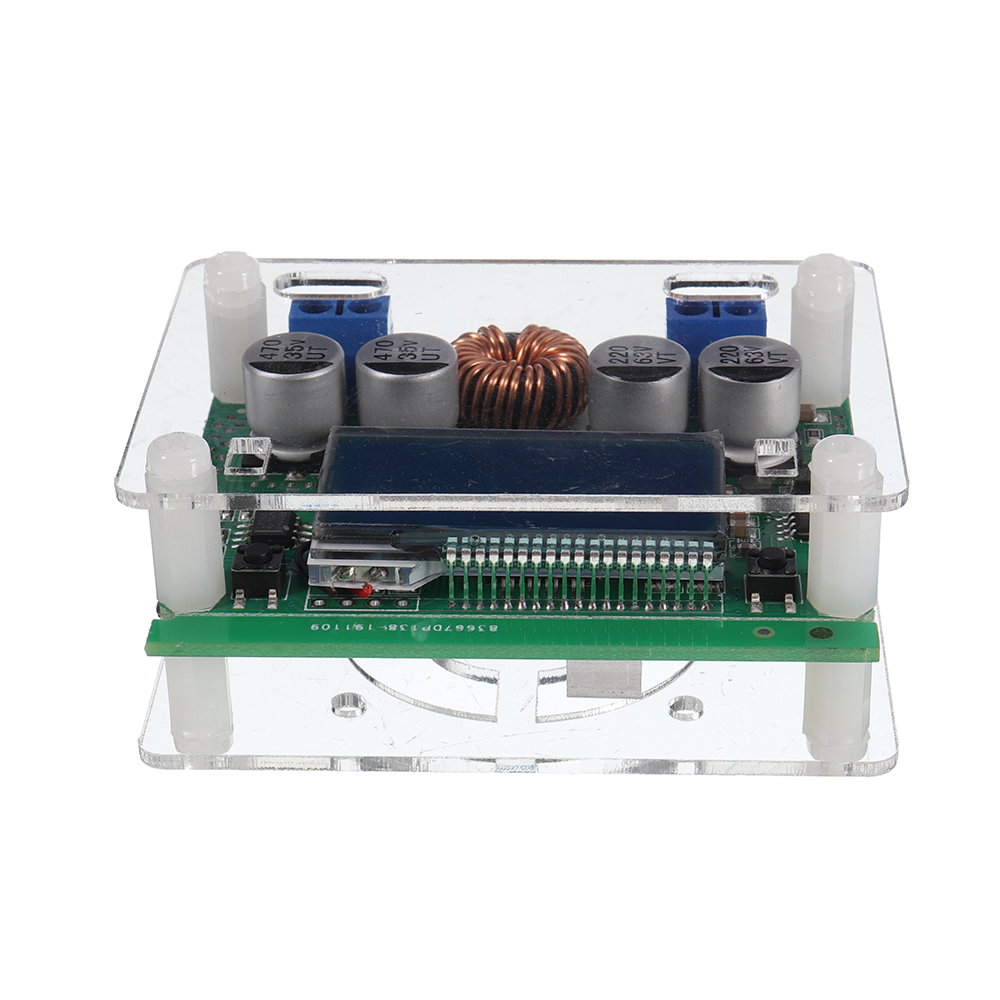

1 x Power Supply Module with housing
