Elecbee RD6006/RD6006-W LED Switching Power Supply S-400W-48V/DC12/24/36/60V 8.3A-33.3A Support Monitoring Transformer Lighting

SKU: EB0045197

Favorites

Key Features

Note: This power supply can be used with Product ID: 1587151 (RD6006/RD6006-W), S06A Case Product ID 1587330 (If you need to use with RD6006/RD6006-W, please select 60V)

Model: S-400-xx

Output power: 400W

Output voltage: DC12/24/36/48/60V (Optional)

Input voltage: 110V/220V AC

Ambient temperature: -10 ° C ~ +50 ° C

Adjustable voltage: ±10%

Product size: 215 x 115 x 50mm

Item		Technical Specifications
Output	DC voltage	12V	24V	36V	48V	60V
	Rated current	33.3A	16.6A	11.1A	8.3A	6.6A
	Rated power	399.6W	398.4W	399.6W	398.4W	396W
	Ripple and noise ①	<150mV	<150mV	<240mV	<240mV	<240mV
	Voltage accuracy	±1%
	Output voltage adjustment range	±10%
	Load Regulation	<±1.2%	<±1%	<±0.5%	<±0.5%	<±0.5%
	Linear adjustment rate	<±1%
Input	Voltage range	90-132VAC/180-264VAC 47Hz~63Hz; 254VDC~370VDC
	Efficiency (typical) ②	>82%	>84%	>86%	>86%	>86%
	Working current	<5.2A 115VAC, <2.8A 230VAC
	Electric shock	110VAC: 25A, 220VAC: 50A
	Start, rise, hold time	200ms, 50ms, 20ms: 230VAC
Protection	Overload protection	105%-135% type: constant current output, +V0 falls to undervoltage point to cut off output, reset: power on again
	Overvoltage protection	Turn off output when >=115%-145%
	Undervoltage protection	Turn off output when <10%-45%
	Short circuit protection	Close output

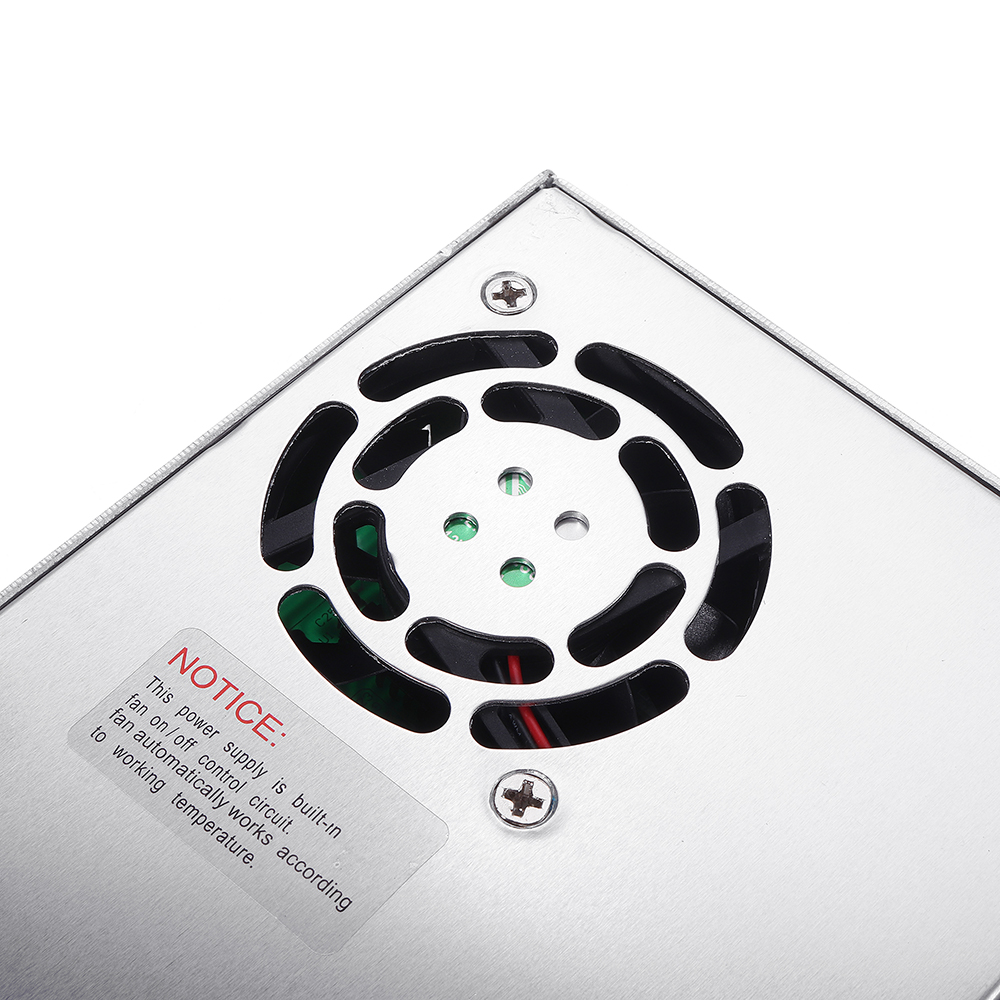

	Over temperature protection	RTH3:>=65°C fan starts, <=55°C fan off, >=80°C off output (5V-15V) RTH3:>=70°C fan starts, <=60°C fan off, >=85°C off output (18V-48V)
Environment	Working temperature, humidity	-10°C ~+50°C, 20% ~90%RH
	Storage temperature, humidity	-20°C ~+85°C, 10%~95%RH
Safety	Withstand voltage	Input-Output: 1.5KVAC Input - Enclosure: 1.5KVAC Output - Enclosure: 0.5KVAC for 1 minute
	Leakage current	Input-output <6mA at 1.5KVAC
	Leakage current	Input-output <1.5mA at 220VAC
	Isolation resistance	Input-output, input-housing, output-housing: 500VDC/100MΩ
Other	Size	21511550mm
	Net reset / gross reset	874.1/936.3g

①Ripple and noise measurement method: Use a 12mm twisted pair cable, and the terminal should be connected with 0.1uF and 47uF capacitors in parallel and measure at 20MHz bandwidth.

②Efficiency is tested at an input voltage of 230VAC, rated load, and ambient temperature of 25°C.

Accuracy: Includes setting error, linear adjustment rate and load adjustment rate.

Linear Rate Test Method: Test from low voltage to high voltage at rated load.

Load regulation test method: from 0% to 100% of rated load.

The startup time is measured in the cold start state. The fast and frequent switching machine may increase the startup time. When the operating altitude is higher than 2000M, the operating environment temperature should be reduced by 5°C/1000M.

Note: This power supply can be used with Product ID: 1587151 (RD6006/RD6006-W), S06A Case Product ID 1587330 (If you need to use with RD6006/RD6006-W, please select 60V)

Model: S-400-xx

Output power: 400W

Output voltage: DC12/24/36/48/60V (Optional)

Input voltage: 110V/220V AC

Ambient temperature: -10 ° C ~ +50 ° C

Adjustable voltage: ±10%

Product size: 215 x 115 x 50mm

Item		Technical Specifications
Output	DC voltage	12V	24V	36V	48V	60V
	Rated current	33.3A	16.6A	11.1A	8.3A	6.6A
	Rated power	399.6W	398.4W	399.6W	398.4W	396W
	Ripple and noise ①	<150mV	<150mV	<240mV	<240mV	<240mV
	Voltage accuracy	±1%
	Output voltage adjustment range	±10%
	Load Regulation	<±1.2%	<±1%	<±0.5%	<±0.5%	<±0.5%
	Linear adjustment rate	<±1%
Input	Voltage range	90-132VAC/180-264VAC 47Hz~63Hz; 254VDC~370VDC
	Efficiency (typical) ②	>82%	>84%	>86%	>86%	>86%
	Working current	<5.2A 115VAC, <2.8A 230VAC
	Electric shock	110VAC: 25A, 220VAC: 50A
	Start, rise, hold time	200ms, 50ms, 20ms: 230VAC
Protection	Overload protection	105%-135% type: constant current output, +V0 falls to undervoltage point to cut off output, reset: power on again
	Overvoltage protection	Turn off output when >=115%-145%
	Undervoltage protection	Turn off output when <10%-45%
	Short circuit protection	Close output
	Over temperature protection	RTH3:>=65°C fan starts, <=55°C fan off, >=80°C off output (5V-15V) RTH3:>=70°C fan starts, <=60°C fan off, >=85°C off output (18V-48V)
Environment	Working temperature, humidity	-10°C ~+50°C, 20% ~90%RH
	Storage temperature, humidity	-20°C ~+85°C, 10%~95%RH
Safety	Withstand voltage	Input-Output: 1.5KVAC Input - Enclosure: 1.5KVAC Output - Enclosure: 0.5KVAC for 1 minute
	Leakage current	Input-output <6mA at 1.5KVAC
	Leakage current	Input-output <1.5mA at 220VAC
	Isolation resistance	Input-output, input-housing, output-housing: 500VDC/100MΩ
Other	Size	21511550mm
	Net reset / gross reset	874.1/936.3g

①Ripple and noise measurement method: Use a 12mm twisted pair cable, and the terminal should be connected with 0.1uF and 47uF capacitors in parallel and measure at 20MHz bandwidth.

②Efficiency is tested at an input voltage of 230VAC, rated load, and ambient temperature of 25°C.

Accuracy: Includes setting error, linear adjustment rate and load adjustment rate.

Linear Rate Test Method: Test from low voltage to high voltage at rated load.

Load regulation test method: from 0% to 100% of rated load.

Show Less

Specifications

Show Similar Products >

Attribute

Value

Wireless Capability

Bluetooth

Show Similar Products >

Description

Package includes:

1 x Power Supply

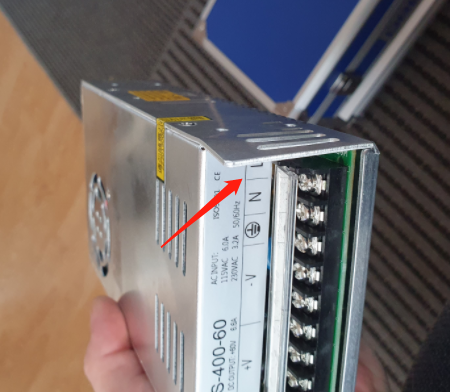

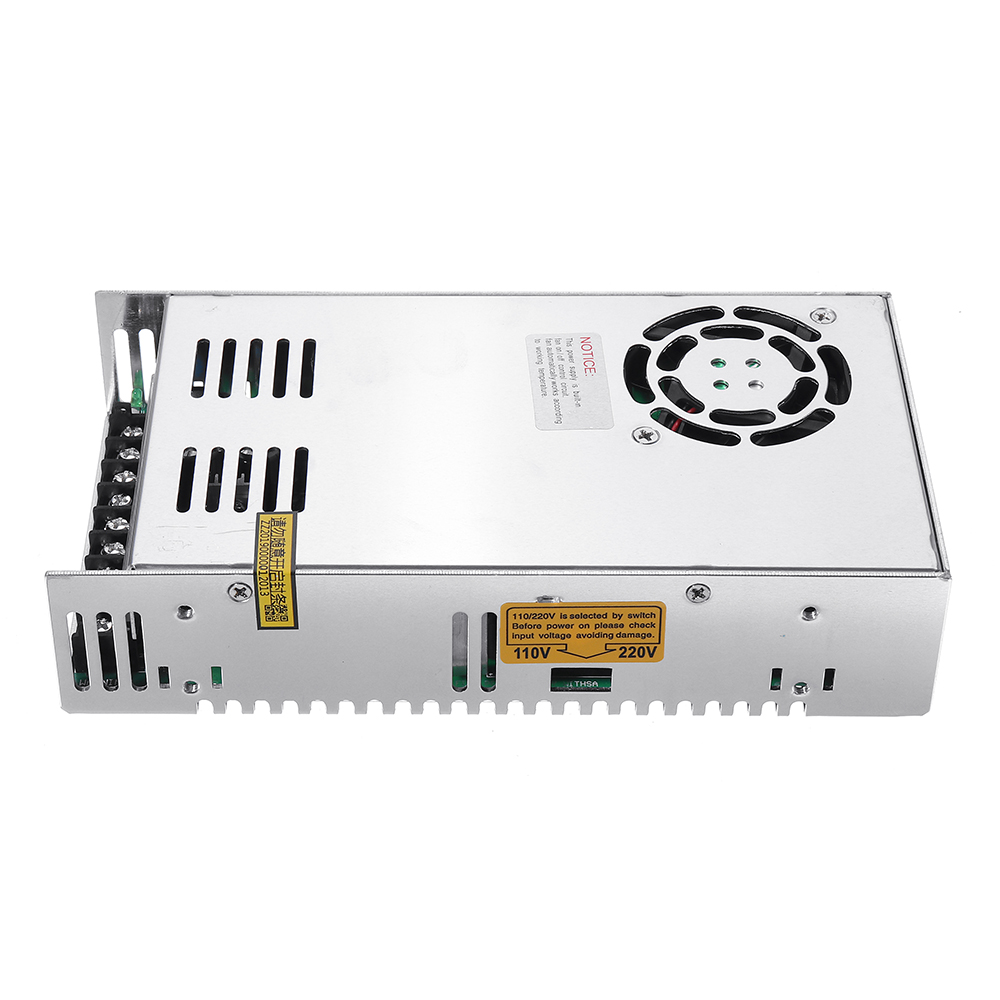

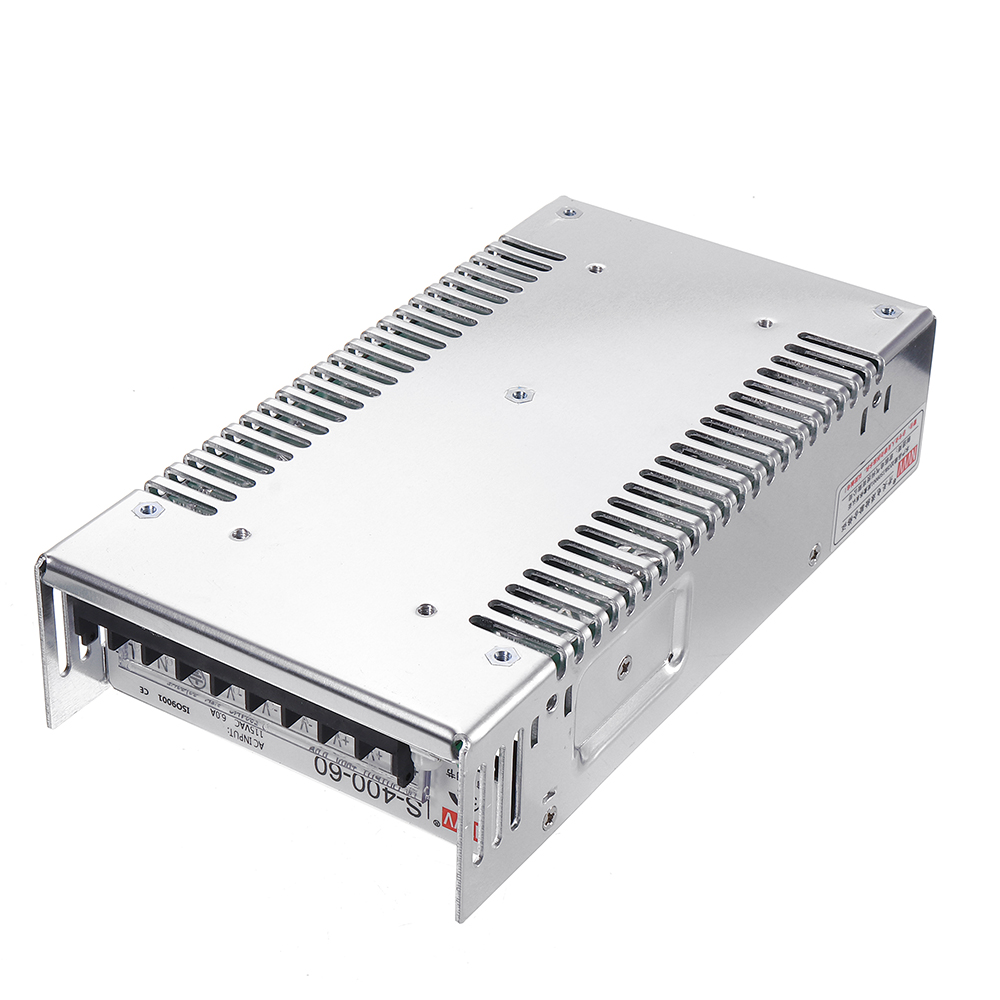

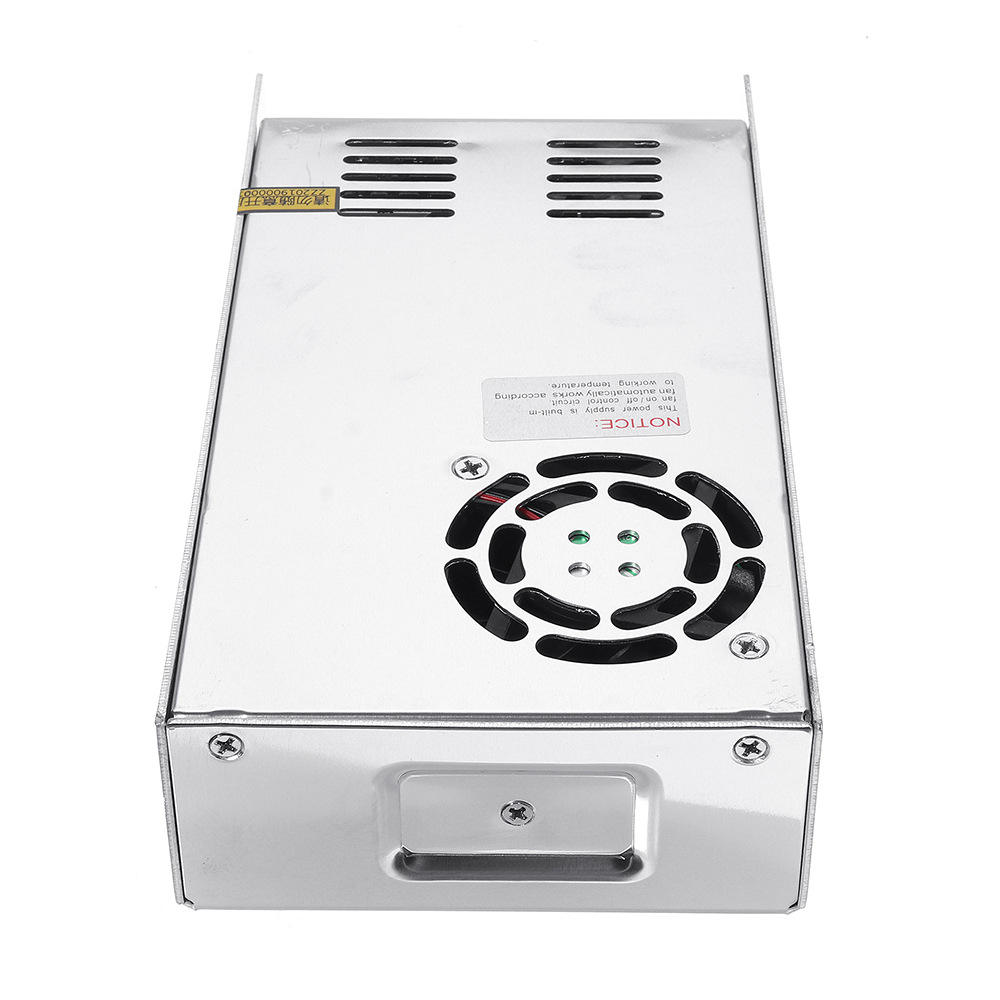

Note: Due to logistics reasons, the following problems may occur after you receive the goods (just like the picture), you can use your hand to adjust, that's ok, if you mind this, please stop buying.

RIDENreg-RD6006RD6006-W-LED-Switching-Power-Supply-S-400W-48VDC12V24V36V60V-83A-333A-Support-Monitor-1594324

RIDENreg-RD6006RD6006-W-LED-Switching-Power-Supply-S-400W-48VDC12V24V36V60V-83A-333A-Support-Monitor-1594324
