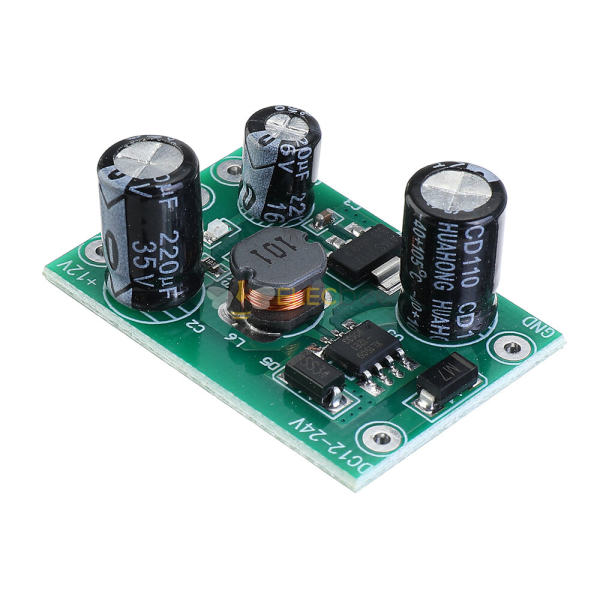

Elecbee DC to DC Input DC12-24V Dual Output 5V/12V DC-DC Switching Power Supply Module

SKU: EB0044708

Favorites

Key Features

Specifications

Show Similar Products >

Attribute

Value

Model

DC12

Show Similar Products >

Description

Overview:

DC to DC power module. Features a wide power input, dual output, etc. Input and output can be used directly with pad connection, or can be used with pin headers and other boards for soldering.

Specifications:

Input voltage: DC12-24V

Dual output: DC5V/DC12V

Maximum output current: 100mA/500mA

Maximum power: 0.5W / 6W

Note:

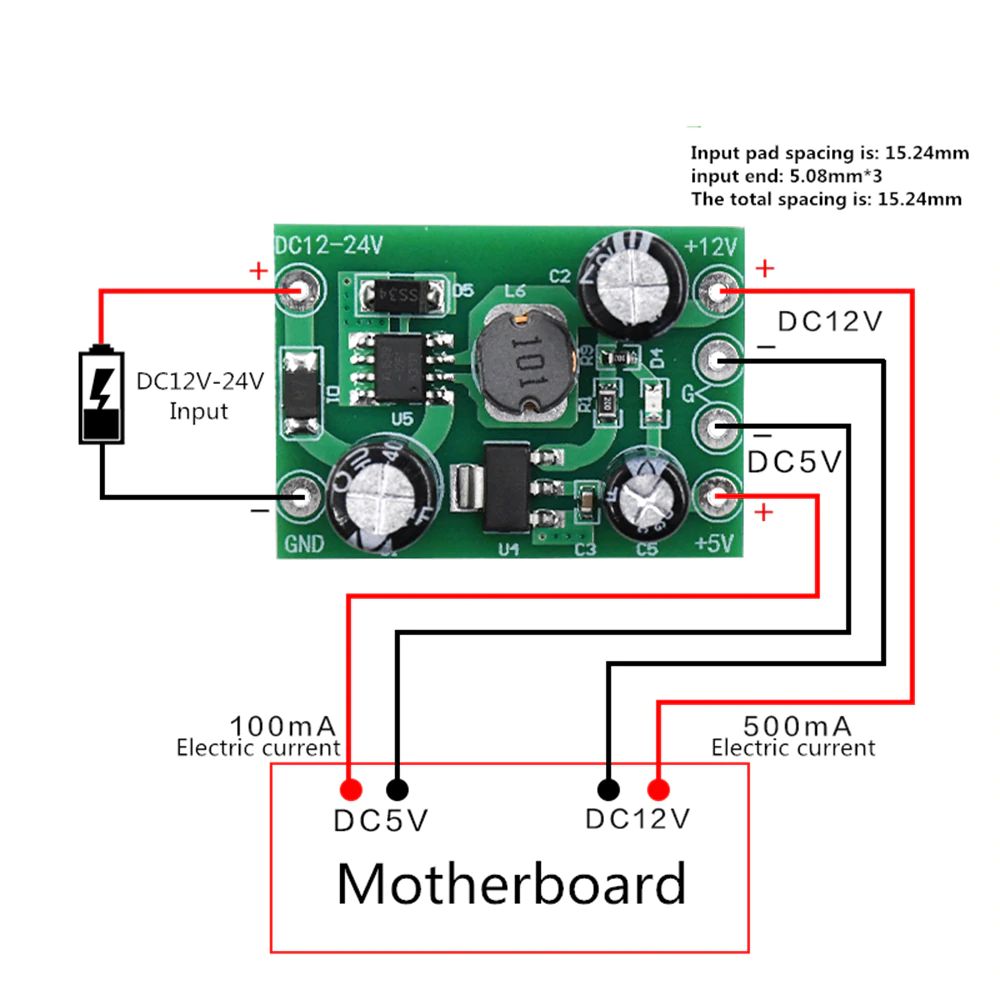

1. Connect DC12-24V at the power input end, pay attention to distinguish between positive and negative power supply.

2. Dual output, 5V and 12V respectively, can connect the load matching the output voltage at the same time, pay attention to distinguish the positive and negative poles of the power supply.

1 x Dual Output 5V/12V DC-DC Switching Power Supply Module
