Elecbee 5pcs IO15B01 6A DC 3V 3.3V 3.7V 5V Electronic Switch Latch Bistable Self-locking Trigger Module Board
SKU: EB0044596
Favorites
Key Features
Show More
Specifications
Attribute
Value
Search
MCU/SoC Model
ESP8266
CPU Architecture
Xtensa L106
Wireless Capability
Wi-Fi + Bluetooth
Model
IO15B01
Clock Speed
80
Description
Description:
Falling edge - triggered. Initial state after power no voltage output, once triggered, output terminal output the power supply votage, after once again trigger the output terminal no voltaged output, and so on.
Low standby power consumption, high output power.
Specifications:
Power supply voltage: DC 2.5V-6V
Standby current: less than 10uA

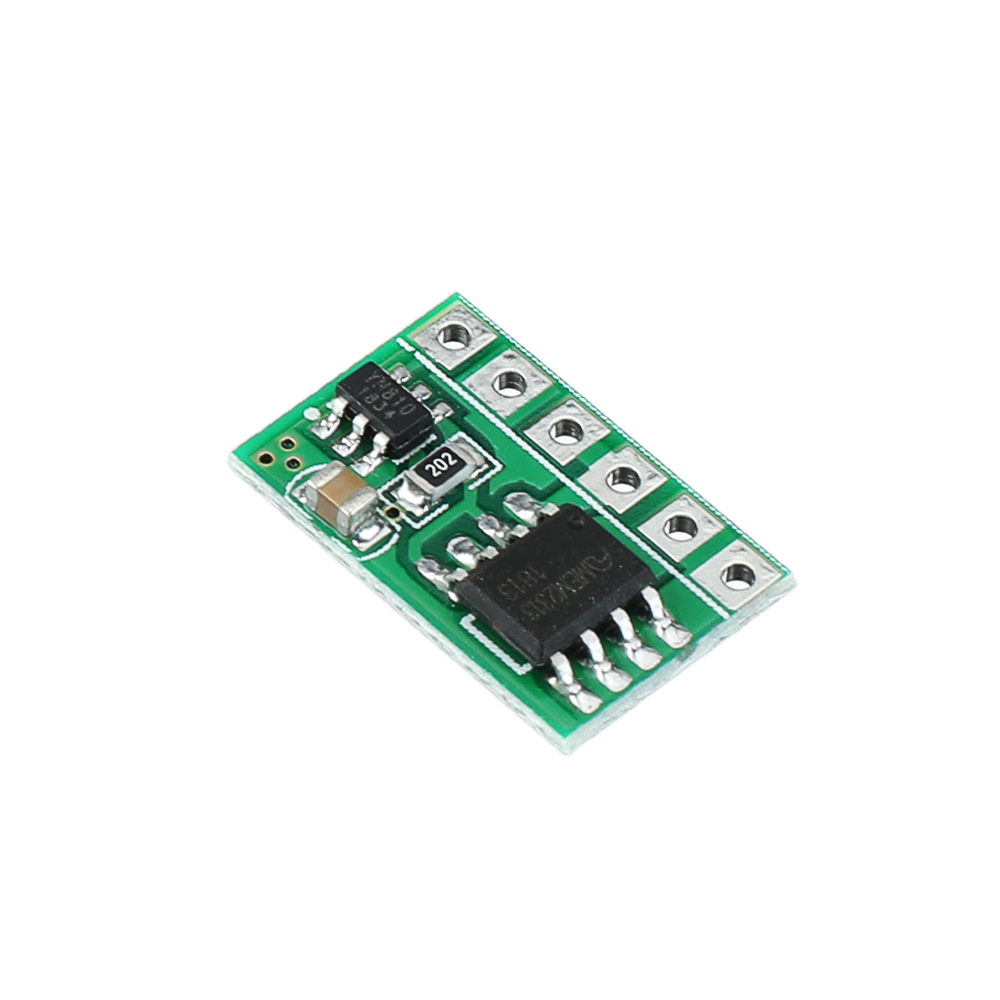

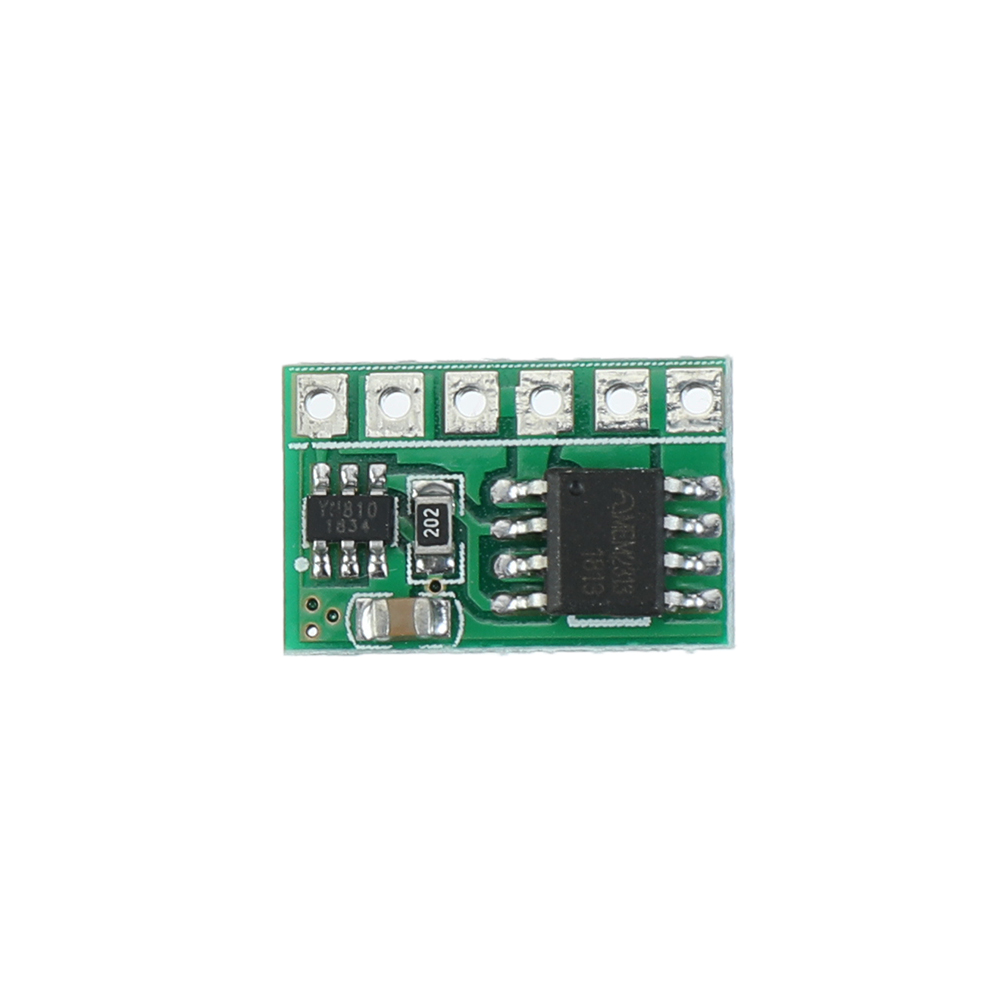

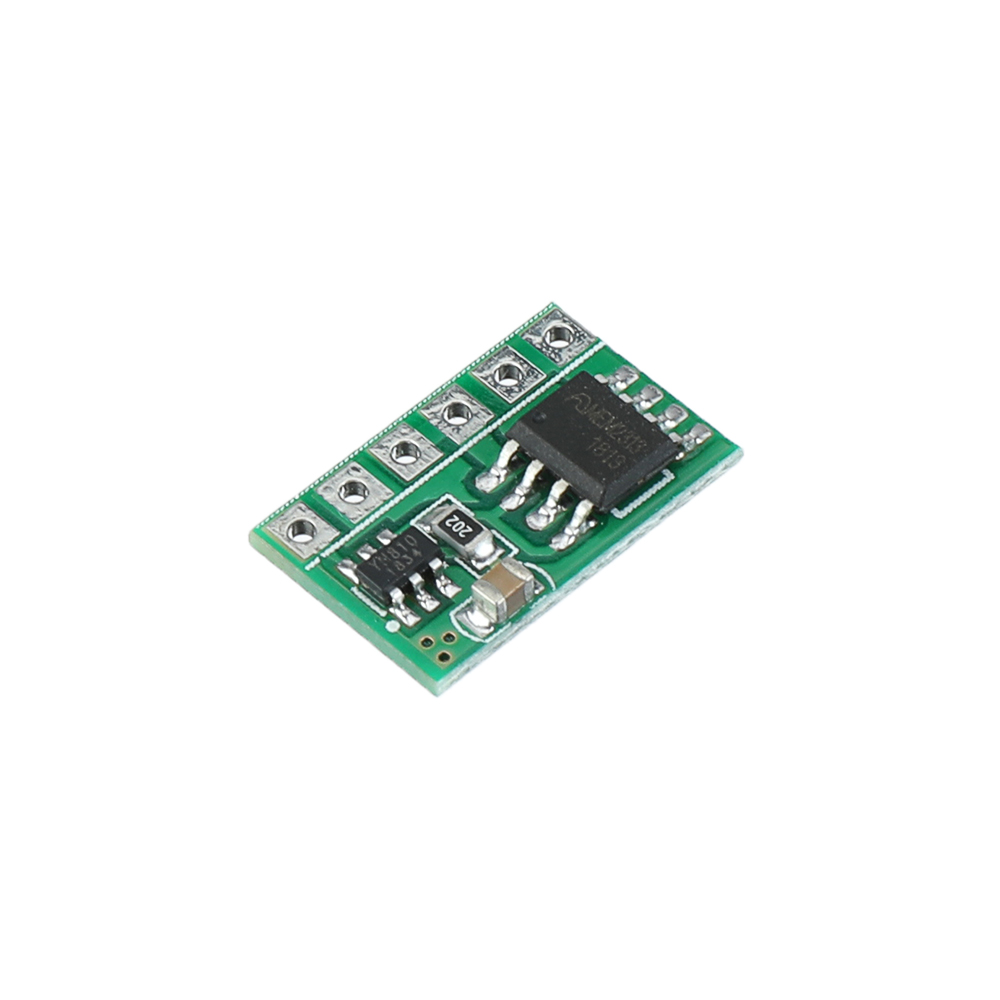

Driver IC is Dual P-channel MOSFET MEM2313,Maximum drive current is 6A
Allowing continuous output current:
5A(5V-6V)
4A(3.7V-5V)
2A(2.5V-3.7V)
Pin pitch: 2.54mm.

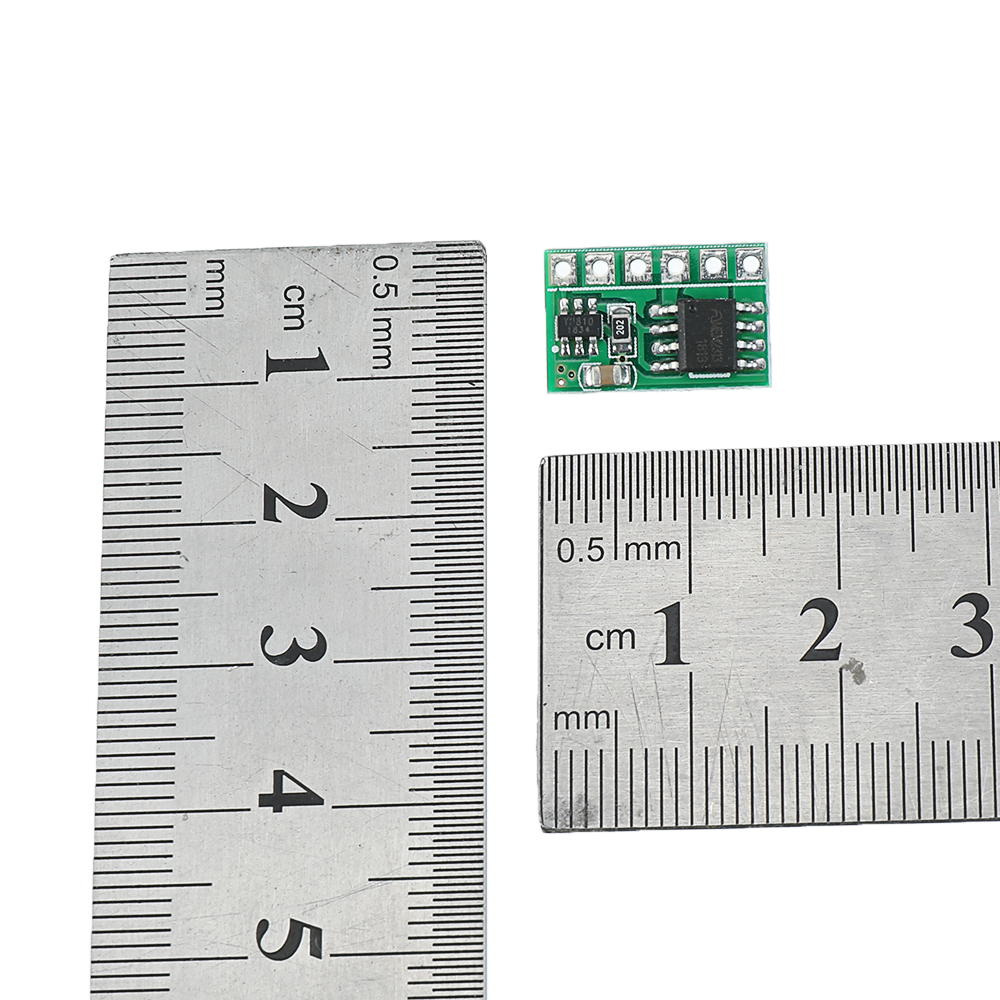

Size: 15.5 x 10 x 2.5mm
Note:

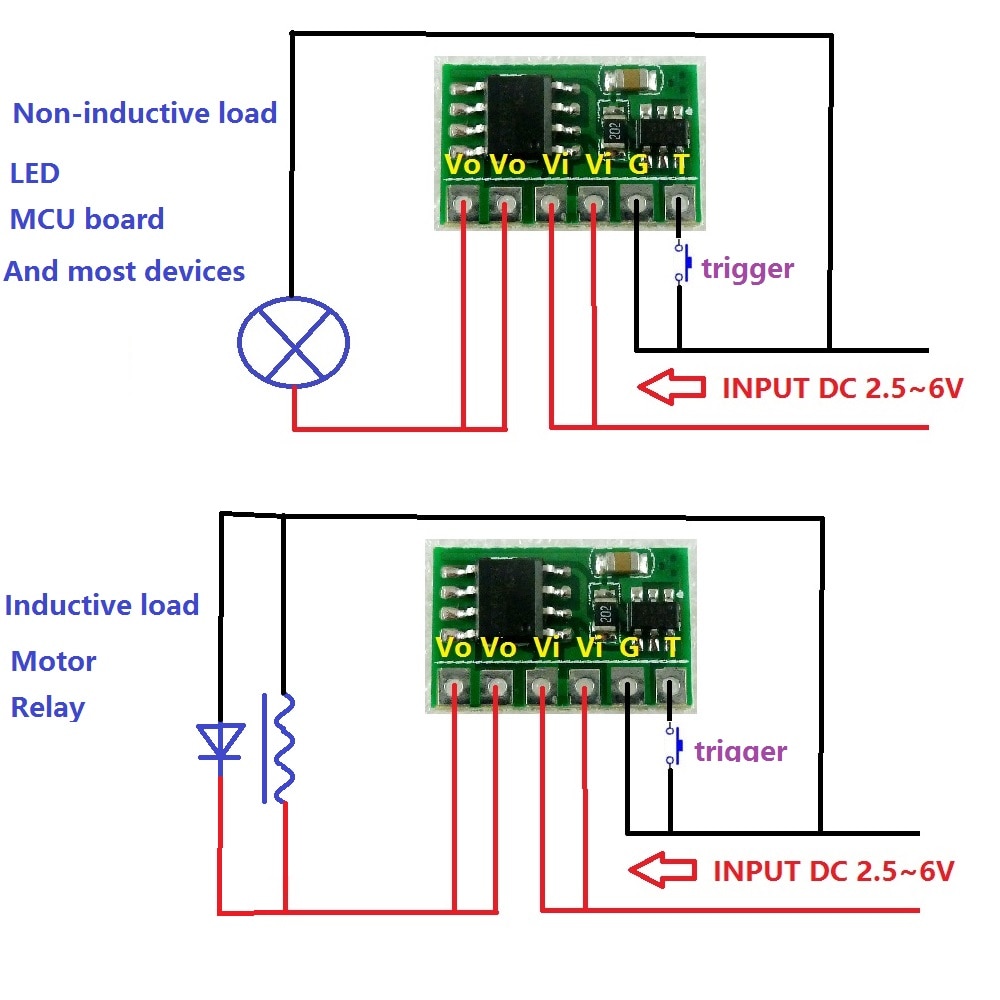

Inductive load, the load to the appropriate freewheeling diode in parallel to avoid damaged to the switching elements of the circuit.

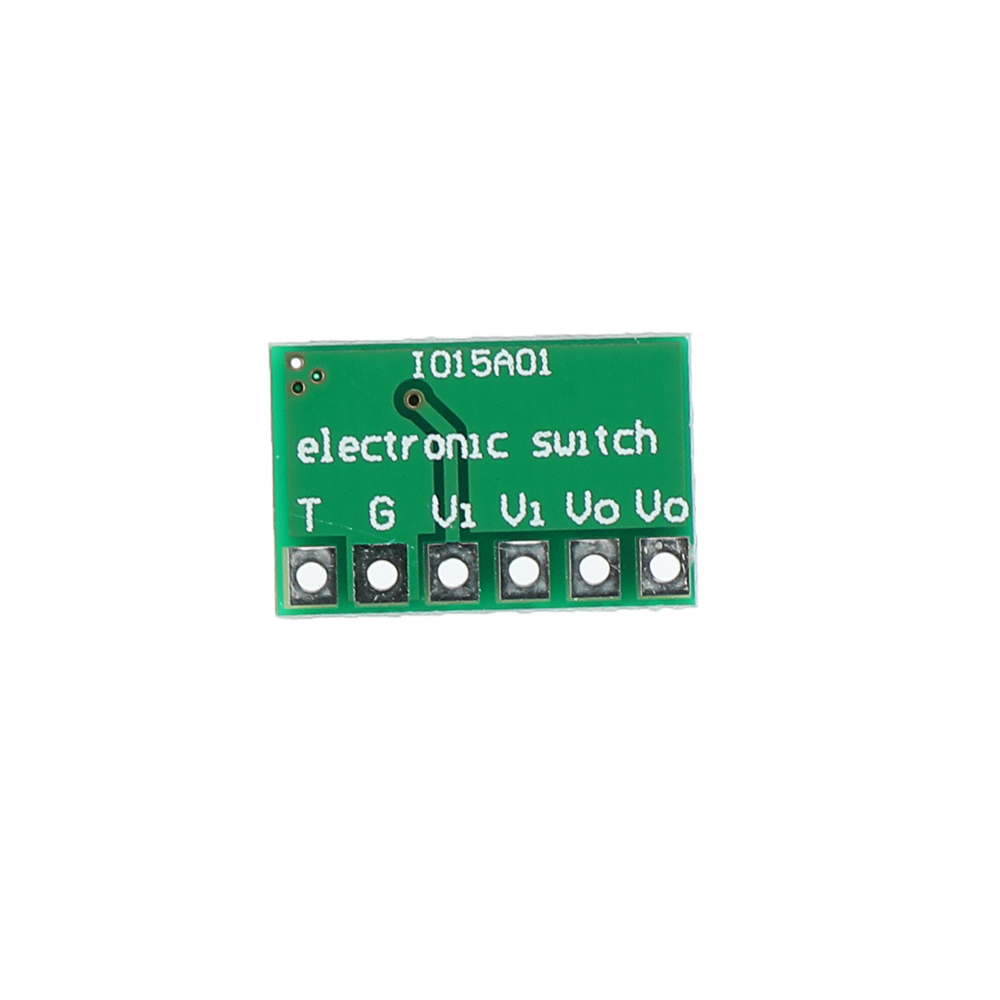

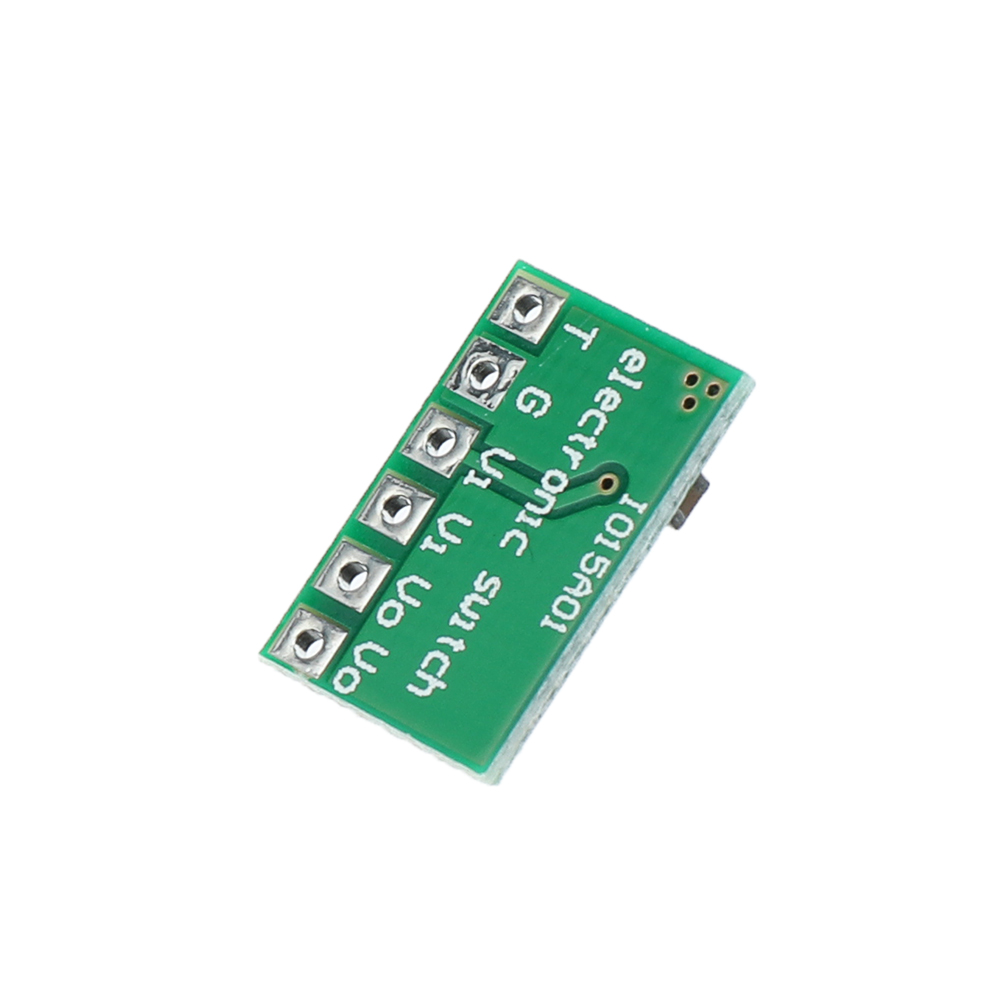

Pin Description:
Vo:output;
Vi:power supply;
G:power ground.
T:trigger signal input terminal;
Applications:
MCU Development Board
Motor
mobile power
LED Lighting
5V Relay
esp8266 WIFI MODULE
315M 433M Wireless remote controller

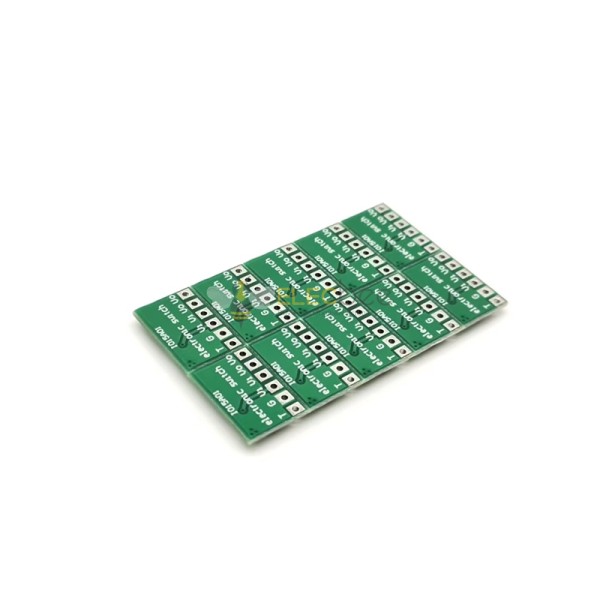

5 x Electronic Switch Latch Bistable Self-locking Trigger Module
5 x Electronic Switch Latch Bistable Self-locking Trigger Module
