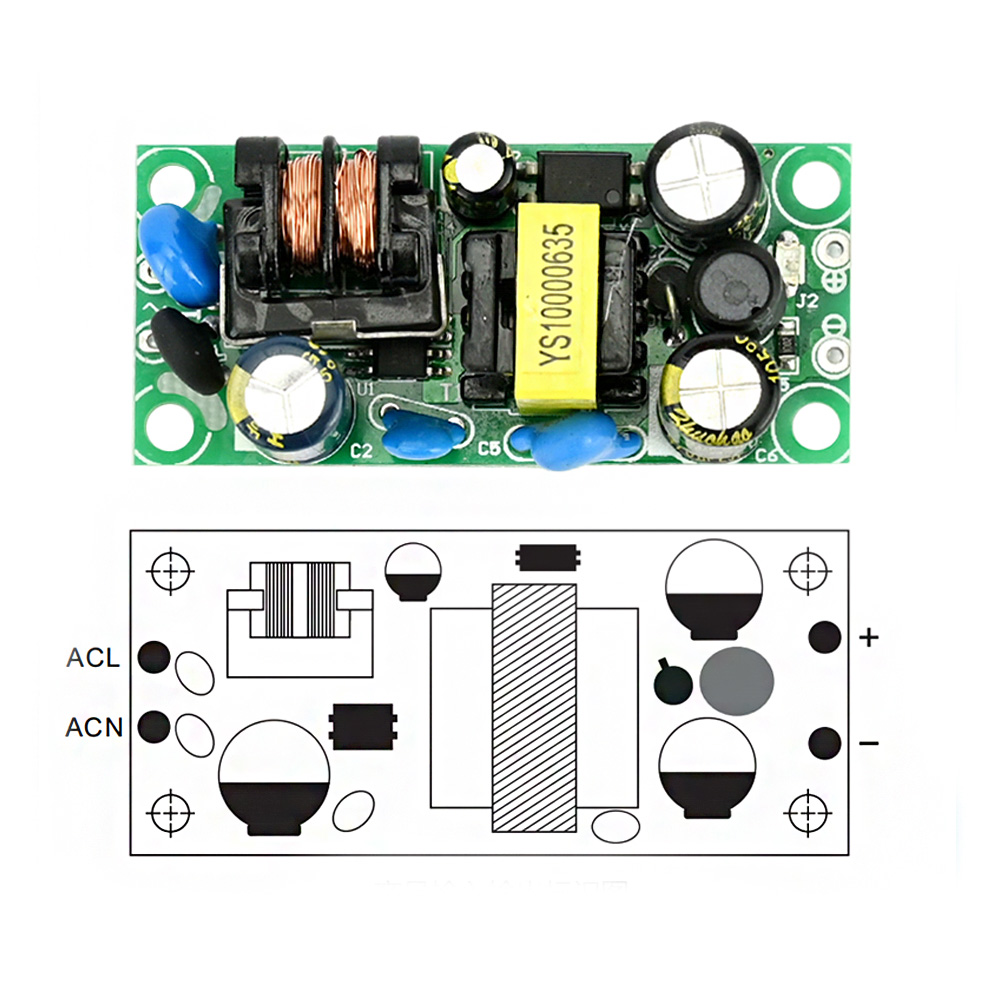

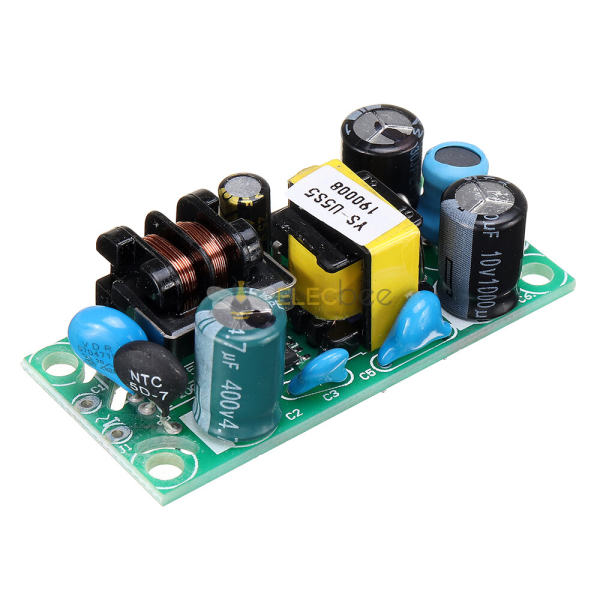

Elecbee YS-U5S AC to DC 5V 1A Switching Power Supply Module AC to DC Converter 5W Regulated Power Supply

SKU: EB0044436

Favorites

Key Features

Datasheet

EB0044436

Specifications

Show Similar Products >

Attribute

Value

Wireless Capability

Bluetooth

Model

U5S

Show Similar Products >

Description

Speicifications:

Model		YS-U5S5
Output characteristics	Output voltage	5V
	Rated current	0.8A
	Current range	0-1A
	Ripple	<60mVp-p
	Output accuracy	±1%
	Voltage regulation rate	<±1%
	Load regulation rate	±1.2%
	Rated power	4W
	Adjustable output range	/
	Setup, rise, hold time	500ms、80ms、80ms/220VAC
Input characteristics	Input voltage range	AC100-264V
	Input current	<0.2A
	Frequency range	47Hz-63Hz
	Effectiveness	75%
	Start impact circuit	COLD START<30AA/230VAC
	Leakage current	<2mA/220VAC
Protection characteristics	Over power protection	150-170% rated power, automatic recoveri after fault removal
	Overvoltage protection	DC OUT >150%
	Output short circuit protection	Intermittent power interruption to eliminate short-circuit power recoveri
Environmental parameters	Working temperature, humidity	-20℃ to +60℃@100%LOAD,+60℃LOAD:20%-90%RH
Environmental parameters	Storage temperature and humidity	-40℃ to +105℃ 10%-95%RH
Safety and EMC standards	EMI. Safety standards	/
	Withstand voltage	I/P-O/P:1KVAV 1min
	Insulation resistance	I/P-O/P;500VDV/100M Ohms

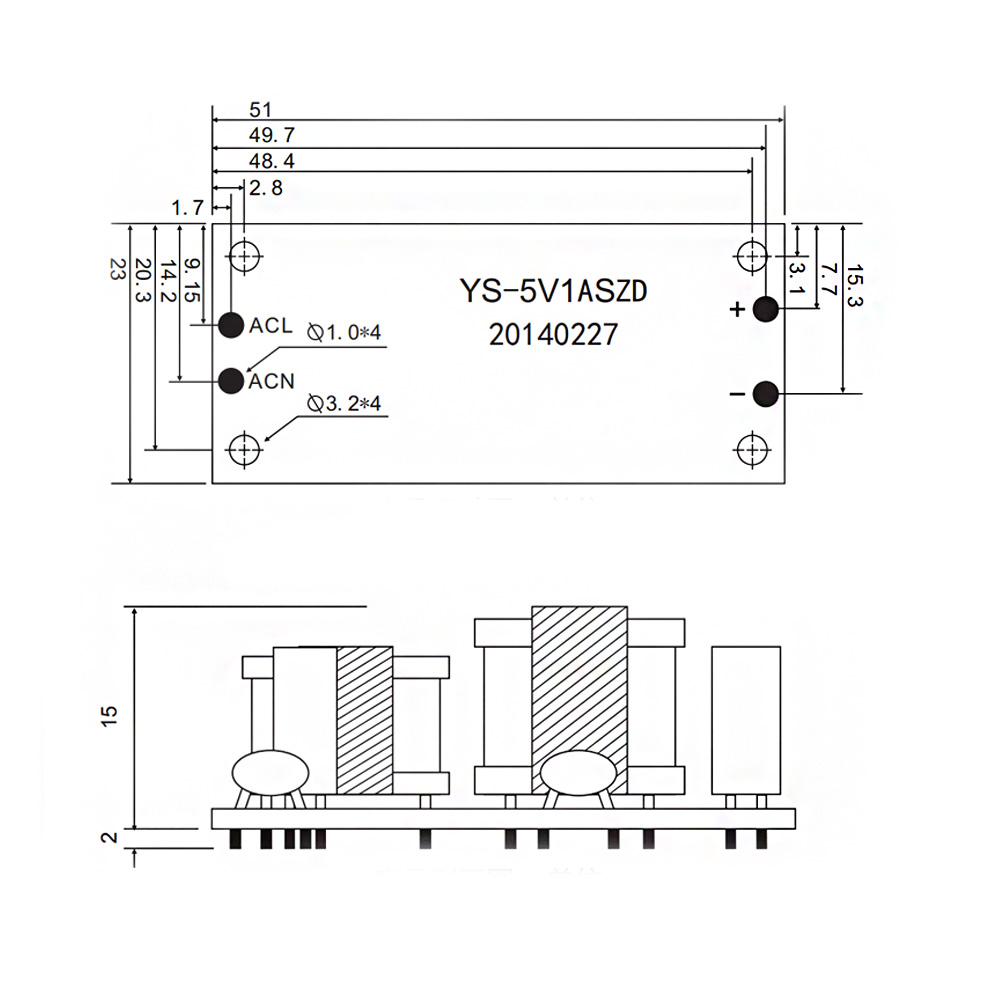

Other	Dimensions (length x width x height)	512317mm
Other	Weight	18g

Package includes：

1 x YS-U5S AC to DC 5V 1A Switching Power Supply Module
