Elecbee ADS1256IDB Analog to Digital Conversion Module 24 Bit ADC Data Acquisition Module Single Ended Differential Input

SKU: EB0046423

Favorites

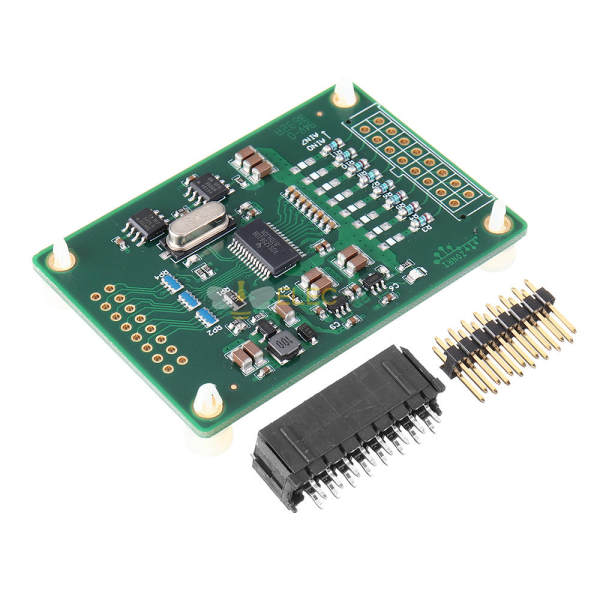

Key Features

xa0

- The complete ADS1256 application circuit module.

- Onboard Boost boost circuit, 3.3V LDO and 5.0V LDO, can be externally powered from a single supply.

- The power supply and digital level range: 1.8V - 5.5V (default 3.3V).

- Onboard low temperature reference.

- Single-ended or differential inputs can be used. Input attenuation can be configured. By default, there is no attenuation (partial pressure resistance air welding).

- The onboard crystal frequency is 7.680MHz.

- The analog signal input interface connector is MX3.0-16Pin.

- Four-layer FR4 PCB board that complies with ROHS.

xa0

Datasheet

EB0046423

Specifications

Show Similar Products >

Attribute

Value

Model

ADS1256IDB

Show Similar Products >

Description

More document click to download: ADS1256

1 x ADS1256IDB Analog to Digital Conversion Module
