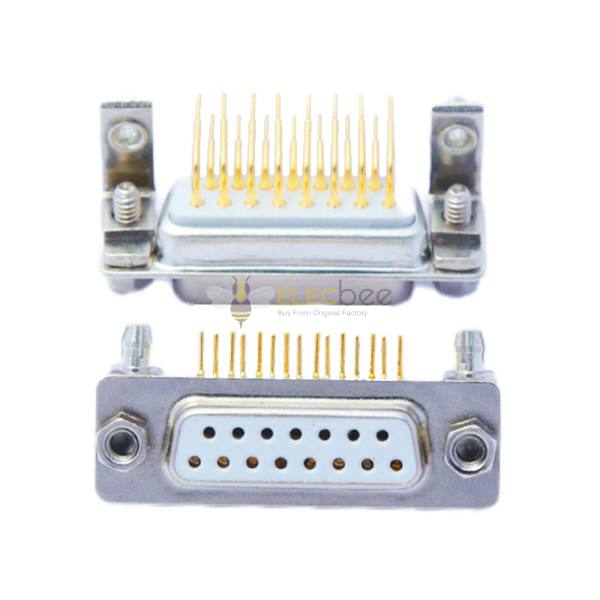

Elecbee D-SUB 15Pin Female 90 Degree Through Hole Gold Plated Machine pin with Bracket
SKU: EB-607-0349-V
Favorites
Key Features
Features:
- D-SUB ,15Pin ,Female,Right Angled,Through Hole,,Gold Plated,Machine pin,with Bracket
- D-Sub connectors are worldwide known as standardized V/Cinterfaces for several applications
- lndirect mating system lnternational approvals UL & CSA
- 3 different connector types available: vertical,angled and cable connectors
- Number of Pins：A=15 Pin , B=25 Pin , C=37 Pin , D=50 Pin , E=9 Pin
Applications：
- Commercial equipment
- Electronic office system
- Data communication
- Medical equipment
- Mobile communication
- Consumer electronics
Show More
Specifications
Attribute
Value
Search
Connector Style
D-Sub
Contact Function
Signal
Number of Rows
2
Number of Ports
1
Mounting Type
Panel Mount
Mounting Feature
Through Hole
Termination
Angled DIP
Contact Type
Female Pin
Number of Positions
15 Pin
Contact Finish
Gold Plated
Insulation Color
White
Contact Processing Technic
Machined
Description
