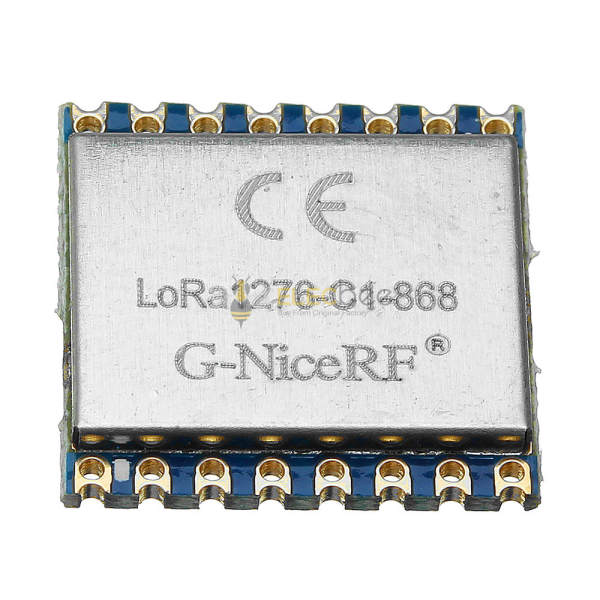

Elecbee LoRa1276-C1 SX1276 868MHz Module Remote Spread Wireless Module 20dBm 100mW 3-5KM

SKU: EB0047474

Favorites

Key Features

Product Features:

-Frequency Range:868MHz(Customizable:137~1020MHz)

Sensitivity up to -139dBm @Lora

Maximum output power:20 dBm

13mA@receiver mode

Sleep current <200 nA

Data transfer rate:@FSK,1.2-300 Kbps

@Lora TM,0.018-37.5 Kbps

Lora TM,FSK,GFSK & OOK Modulation mode

Built-in ESD Protection

127 dB Dynamic Range RSSI

Packet engine up to 256 bytes with FIFO and CRC

Hopping frequency

Built-in temperature sensor and low battery indicator

Excellent blocking immunity

Operating Temperature Range:--40~+85°C

Application:

- Remote meter reading

- Industrial control

- Home automation remote sensing

- Toys control

- Sensor network

- Tire pressure monitoring

- Health monitoring

- Wireless PC peripherals

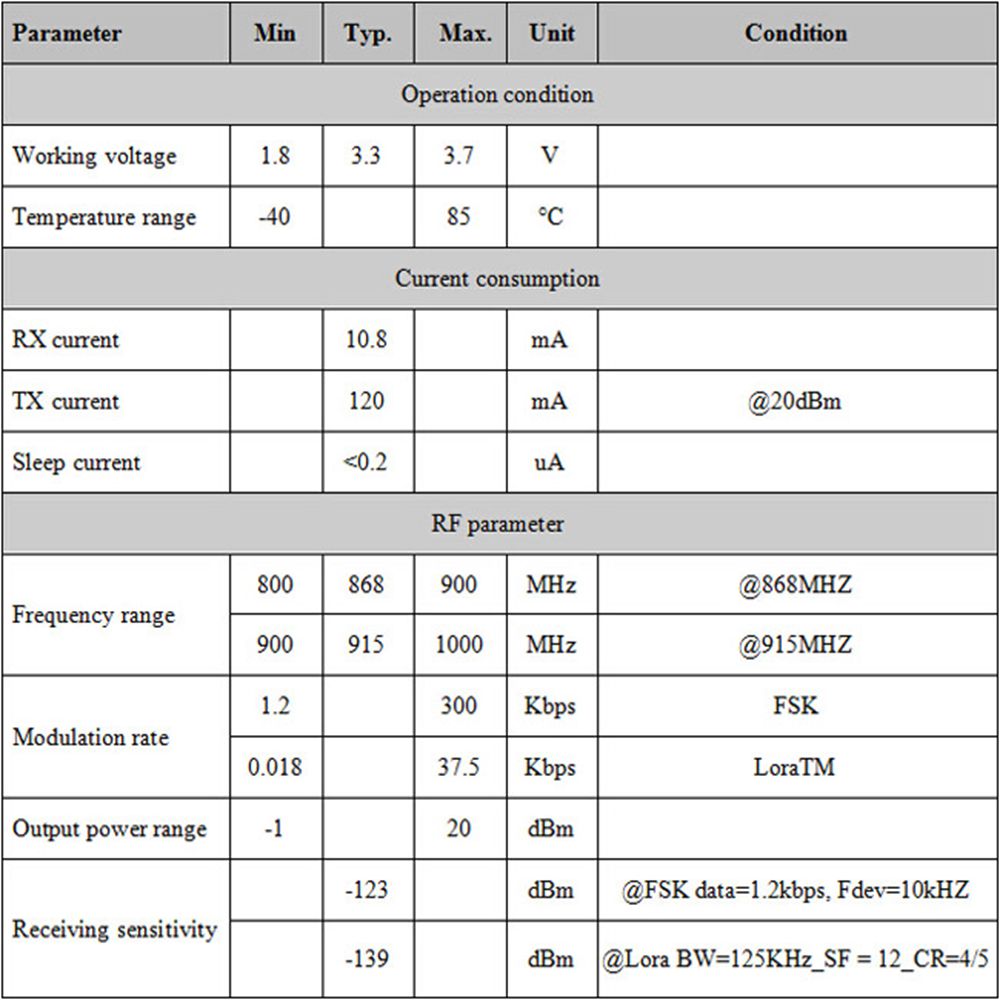

Specifications

Show Similar Products >

Attribute

Value

Wireless Capability

LoRa

Wi‑Fi Standard

802.11B/G/N

Model

LORA1276

Show Similar Products >

Description

Overview:

Lora1276-C1 integrates Semtech RF transceiver chip SX1276, which adopts LoRa TM Spread Spectrum modulation frequency hopping technique. The features of long distance and high sensitivity (-139 dBm) make this module perform better than FSK and GFSK module. Multi-signal won't affect each other even in crowd frequency environment; it comes with strong anti-interference performance. This module is 100mW and ultra small size, widely used in AMR,remote industrial control filed.

Package includes:

1 x 868MHz LoRa Module

LoRa1276-C1-SX1276-868MHz-LoRa-Module-Remote-Spread-Spectrum-Wireless-Module-20dBm-100mW-3-5KM-1416393
