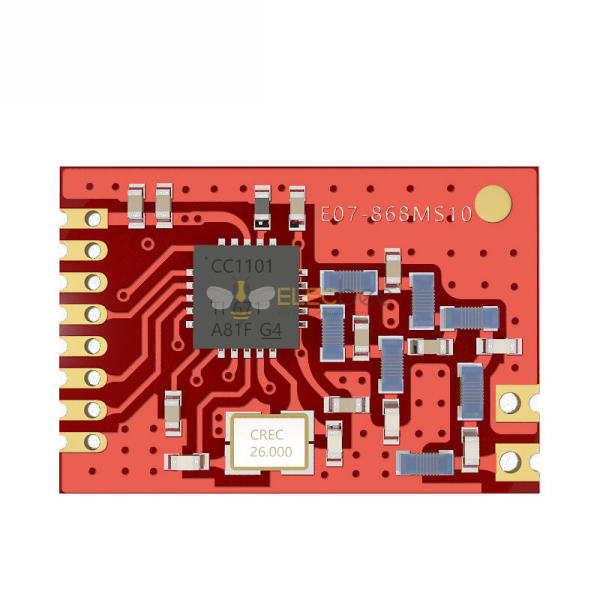

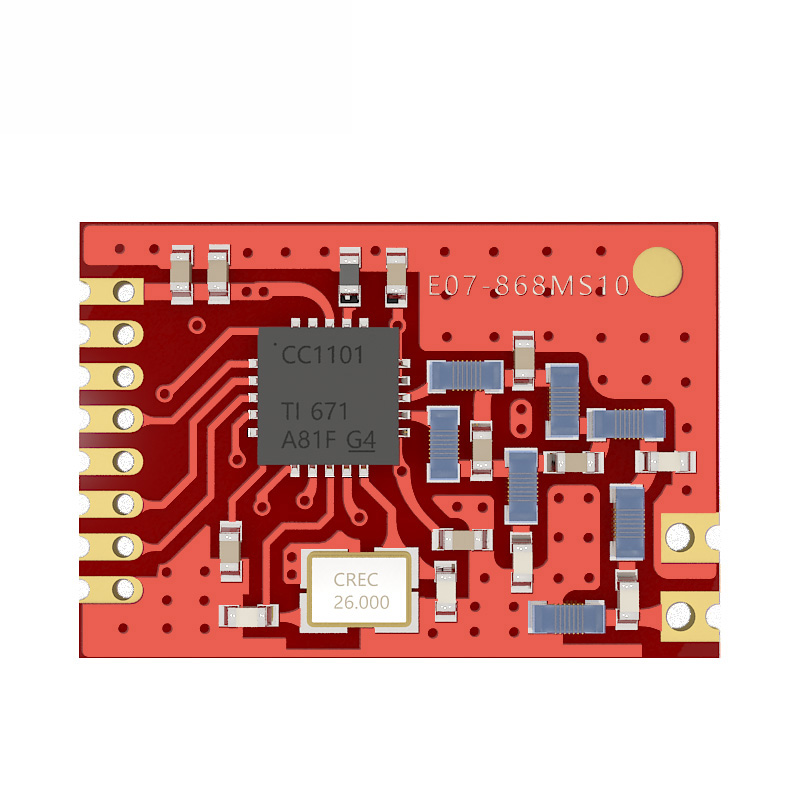

Elecbee E07-915MS10 915MHz CC1101 SPI 1.2km 10dBm Communication Interface RF Transceiver Module

SKU: EB0042986

Favorites

Key Features

Specifications

Show Similar Products >

Attribute

Value

Wireless Capability

Wi-Fi + Bluetooth + Cellular

Model

E07

Show Similar Products >

Description

WiFi: YES

Precise details>>

Specifications:

RF Parameter	Value	Remark
Working frequency	900~925.5 MHz	Default: 915MHz (26MHz oscillator)
Transmitting power	10 dBm	Max. Power (10mW)
Receiving sensitivity	-109 dBm	Air data rate: 0.6kbps
Air data rate	0.6k~500kbps	Default: 0.6kbps
Test distance	1000m	In open and clear air, with maximum power, 5dBi antenna gain, height of 2m, air data rate: 0.6kbps

Hardware Parameter	Value	Remark

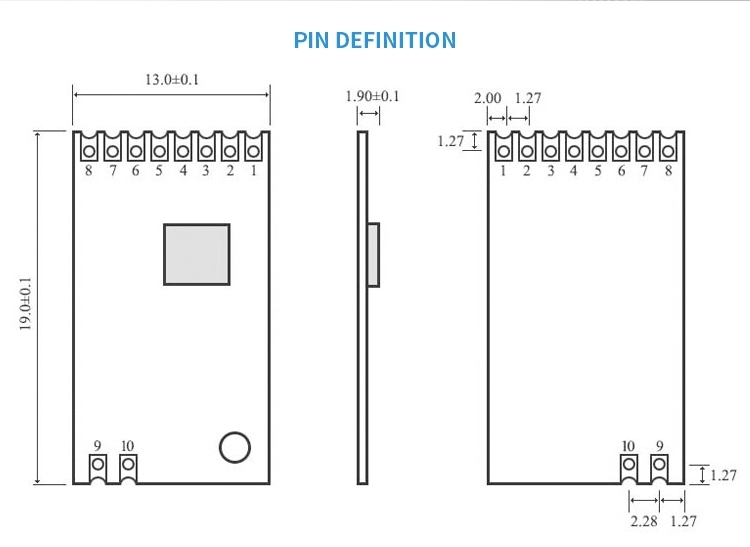

Size	13 * 19 mm
Antenna type	Stamp hole

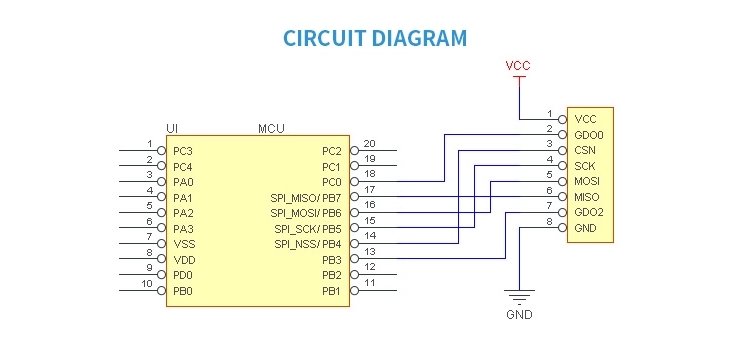

Communication interface	SPI
Package	SMD

Electronic parameter	Min.	Typ.	Max.	Unit	Condition
Power supply	1.8	3.3	3.6	V
Communication level	1.8	3.3	3.6	V
Transmitting current	34	37	41	mA	10dBm（10mW）
Receiving current	18	20	22	mA
Sleep current	0.3	0.6	2.1	μA
Operating temperature	-40	20	+85	℃
Operating humidity	10	60	90	%
Storage temperature	-40	20	+125	℃

Package included:

1 x E07-915MS10 Transceiver Module

Ebytereg-E07-915MS10-915MHz-CC1101-SPI-12km-10dBm-Communication-Interface-RF-Transceiver-Module-1697343
