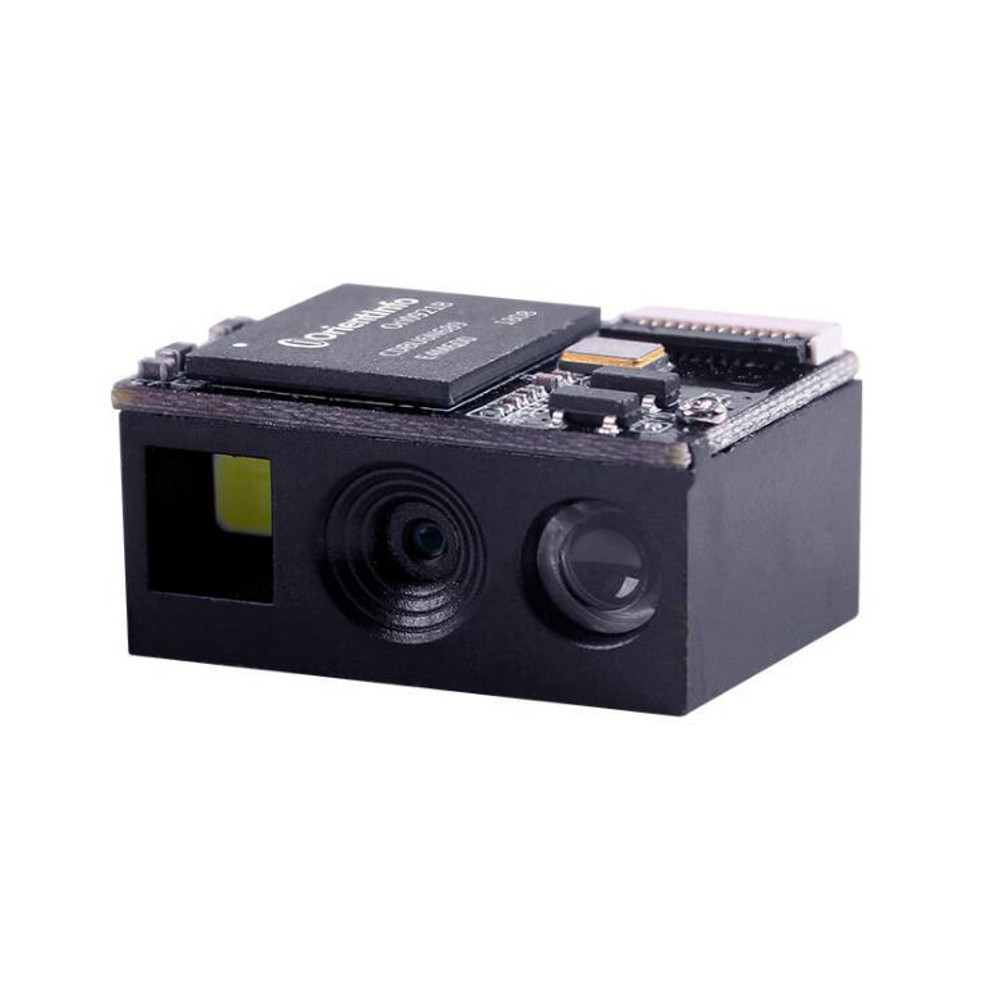

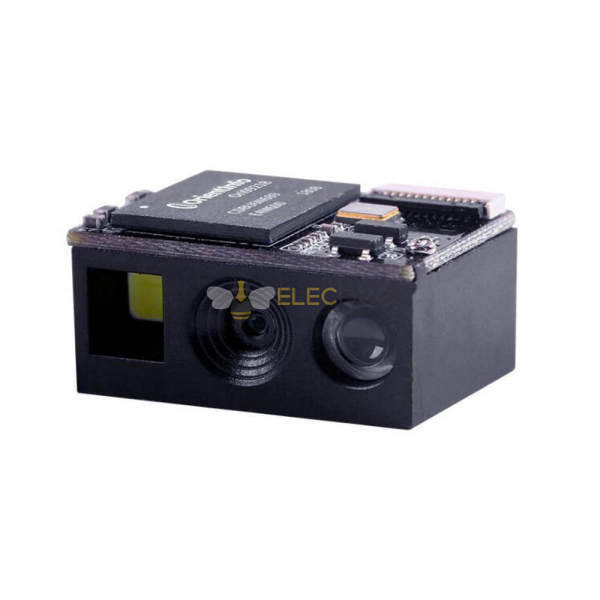

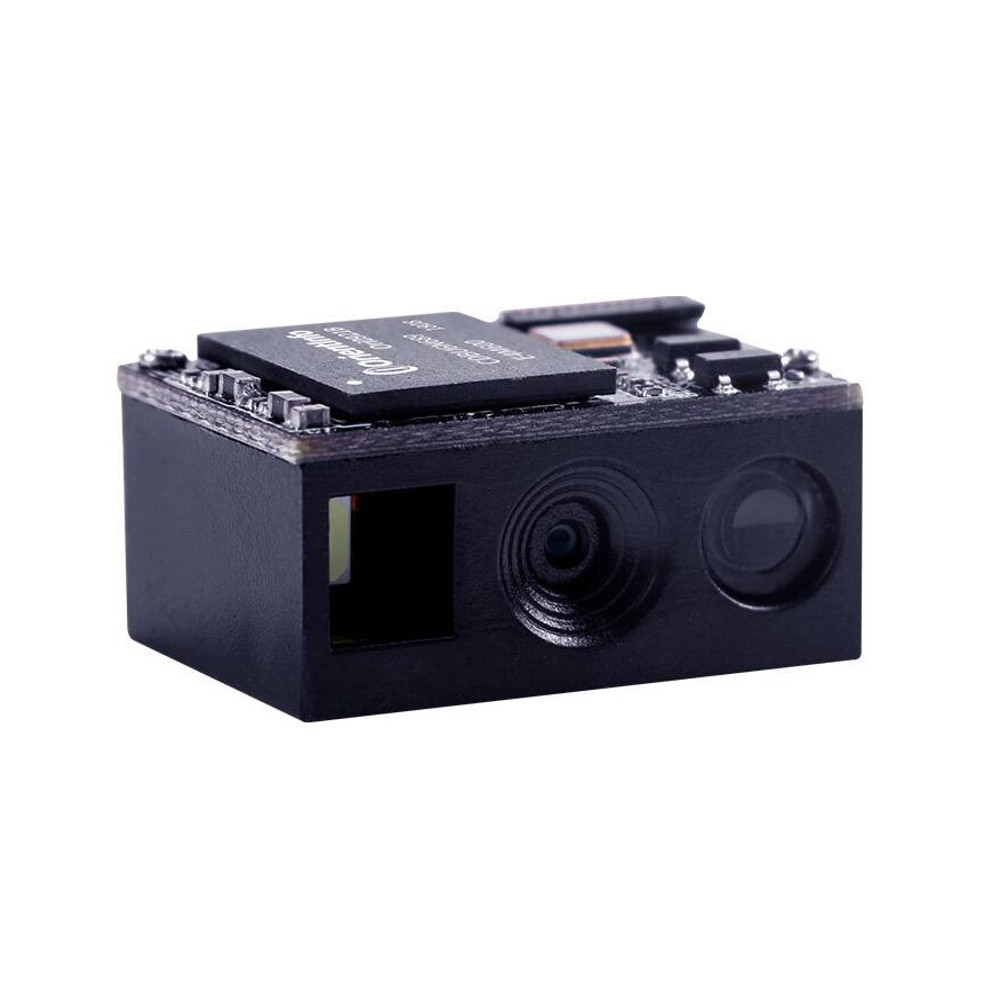

Elecbee 1D 2D QR Code Scanning Embedded Module One-dimensional Two-dimensional Scanning Head Barcode Scanner Engine

SKU: EB0042630

Favorites

Key Features

Specifications

Show Similar Products >

Attribute

Value

Wireless Capability

Bluetooth

Show Similar Products >

Description

Scope of application:

Self-service terminal

Channel gate

Locker

Handheld Terminal

Game machine

Barcode scanning

QR code payment

Compatible system:

Linux, Android, Windows XP, Windows 7, Windows 8, Windows10, MAC

Technical Parameters
Size	21.4 x 14.3 x 11mm
Image Sensor	CMOS
Resolution	640 (horizontal) x 480 (vertical)
Lighting	white LED
Accuracy	>=5mil
Focus	LED650+-10nm
Symbol contrast	>=30%
Code system
2D	417, QRcode, Datamatrix, Chinese Sensible Code
1D	UPC/EAN, Code128, Code93, Code39, Code11, Codebar, MSI Pressey, ISBN, Standard 2 of 5, interleaved 2 of 5, Industrial 2 of 5
Typical depth of field
EAN-13 (13mil)	60-200mm
Code-39 (6.67mil)	80-115mm
Data Matrix (10mil)	30-95mm
QR Code (20mil)	50-200mm
417 (13.34mil)	30-220mm
Bar code sensitivity	Tilt +-45 °C
	Deflection +-50 °C
	Rotate 360°C
Field of view	Level 53°
	Vertical 40°
Recognition speed	30 frames / sec
Operating Voltage	+3.3V
Operating current	160mA (typical) 190mA (max)
Standby current	58mA
Sleep current	<1mA

Cable standardStraight line, 1.5MAppearance size21.4*14.3*11mmWorking temperature -10 ° C ~ 55 ° CStorage temperature -40°C~+70°C

Package inculdes:

1 x Scanning Module

1D-2D-QR-Code-Scanning-Embedded-Module-One-dimensional-Two-dimensional-Scanning-Head-Barcode-Scanner-1531211
