Elecbee E90-DTU(433C30) E Ethernet to Radio Transmission Small Size 433MHz 1W Modbus RTU Gateway TCP IP Wireless Transceiver IOT Module

SKU: EB0042558

Favorites

Key Features

Features:

E610-DTU(433C30)E is an isolated wireless gateway (isolated interface data transmission radio) supporting 10M/100M rate developed based on wireless communication technology and isolation protocol.

Supports 2-way socket, provides TCP Server, TCP Client, UDP Server, UDP Client, HTTP Client, MQTT Client six working modes, and supports 6-way client connection in TCP server mode.

The airspeed of the radio is automatically selected by the program algorithm according to the serial port baud rate.

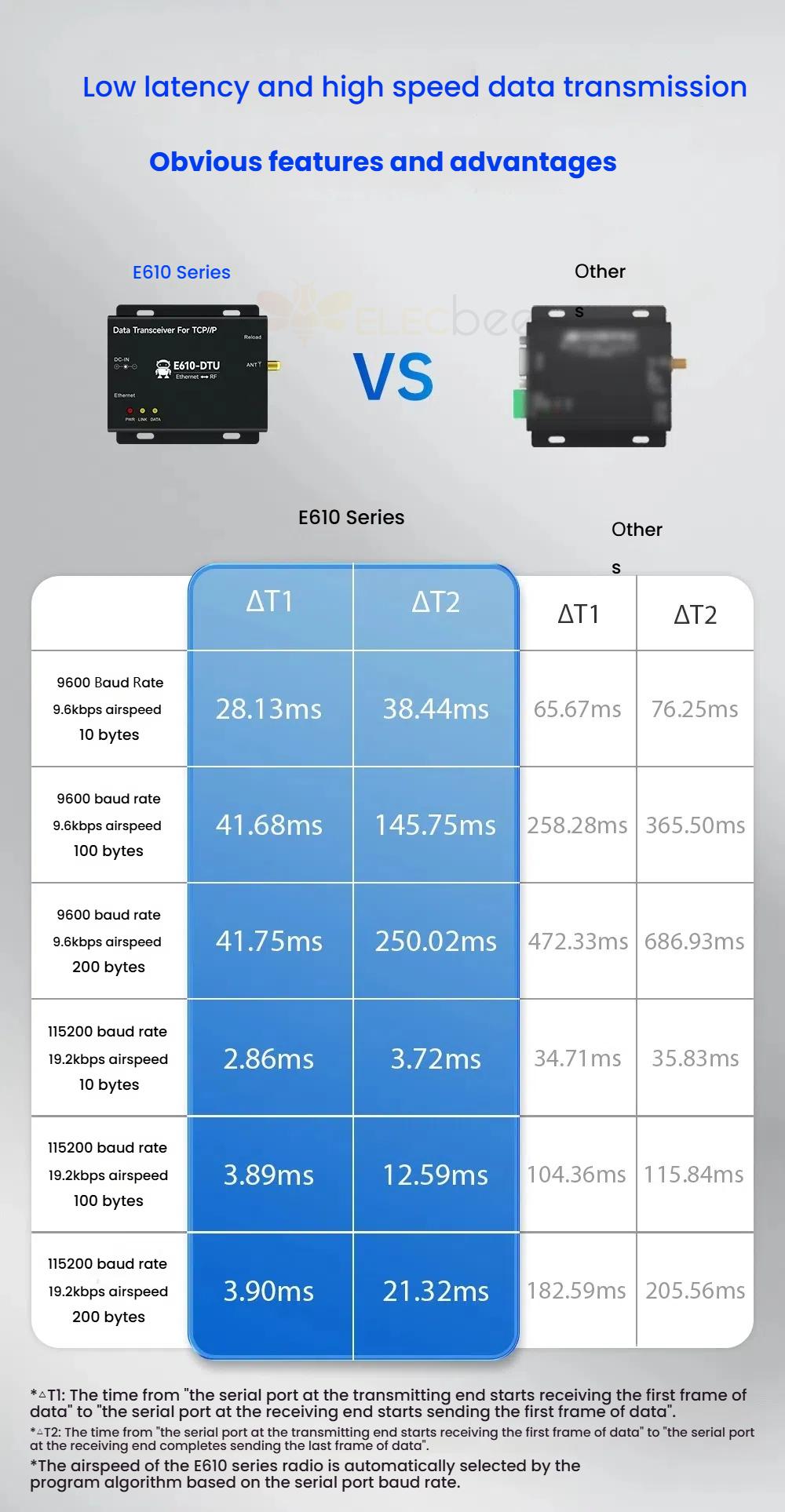

The advantages of low latency and high rate of data transmission are obvious.

Specifications

Show Similar Products >

Attribute

Value

Wireless Capability

Bluetooth + Cellular

Wi‑Fi Standard

802.11B/G/N

Model

E90

Ethernet

Support

Show Similar Products >

Description

E610-DTU(433C30)E Ethernet to Radio Transmission：

Interface type: Ethernet

Working frequency: 433M

Communication distance: 10km

Main parameters	Parameter value	Description
Working frequency band(MHz)	410-441	Default 433MHz，channel spacing：500K
Transmitting power (dBm)	30	-
Communication distance (km)	2（continuous transmission mode） 10（general mode）	Continuous transmission mode is suitable for applications with large data volume; General mode is suitable for applications with small data volume
Air rate(kbps)	Default adaptive	-
Power supply voltage (V)	8~28	Recommended 12V or 24V power supply
Network port specification	StandardRJ45	Support10/100Mbps
Antenna interface	SMA	-
Working temperature(C)	-40~+85	Industrial grade
Size (mm)	84X82X25	-
Average weight(g)	130	±5g

Product model	E610-DTU(433C20)	E610-DTU(433C30)	E610-DTU(433C30)	E610-DTU(433C37)
High-speed continuous transmission	1KM	2KM	3KM	4KM
General transmission mode	6KM	10KM	10KM	17KM
Transmitting power level	20dBm	30dBm	30dBm	37dBm
Product size	826225mm	826225mm	826225mm	12410525mm
Product weight	128g	128g	128g	240g
Storage size	4096	4096	4096	4096
Voltage range	8~28V DC	8~28V DC	8~28V DC	8~28V DC
Default frequency	433M	433M	433M	433M
Air rate	0.5k	0.5k	0.5k	0.5k
Baud rate Factory default	9600	9600	9600	9600

Package includes:

1 x Wireless Transceiver IOT Module
