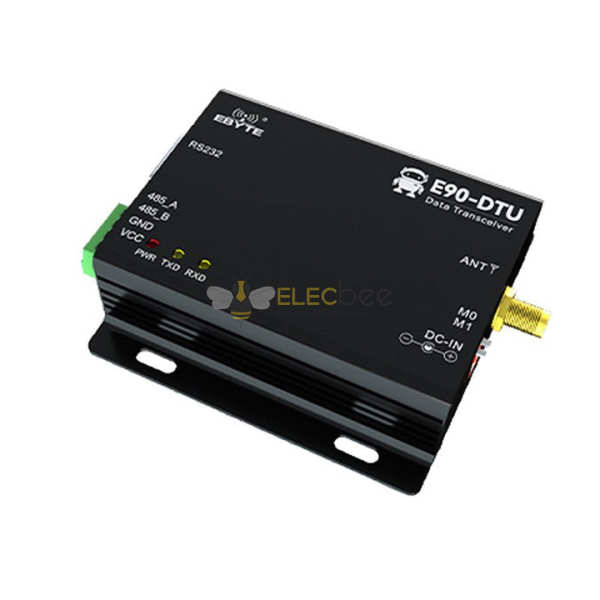

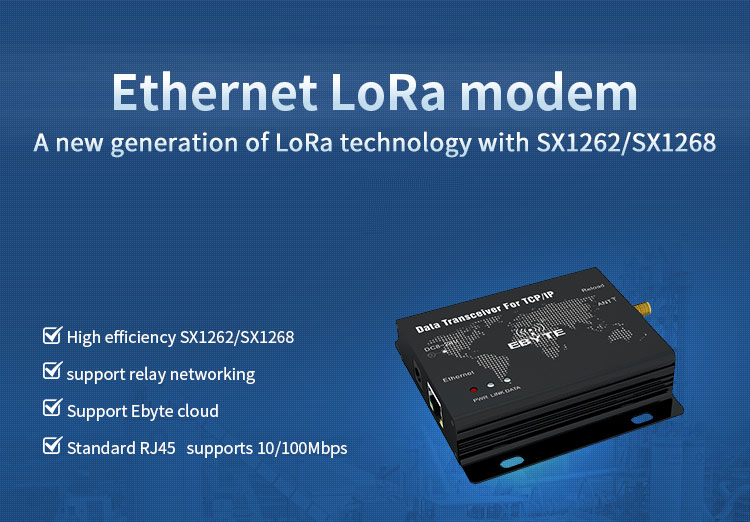

Elecbee E90-DTU(230SL22) SX1262 Lora 230Mhz 22dBm 5Km Range 0.3k~15.6kbps RS232 RS485 Wireless Lora Modem
SKU: EB0042546
Favorites
Key Features
u200a
u200a
| No | Item | Specification |
| 1 | Power supply | 8V~28VDC, will burn over 28V, 12V or 24V is recommended |
| 2 | Ethernet specification | RJ45, support 10/100Mbps |
| 3 | Network protocol | IP, TCP/UDP, ARP, ICMP, IPV4 |

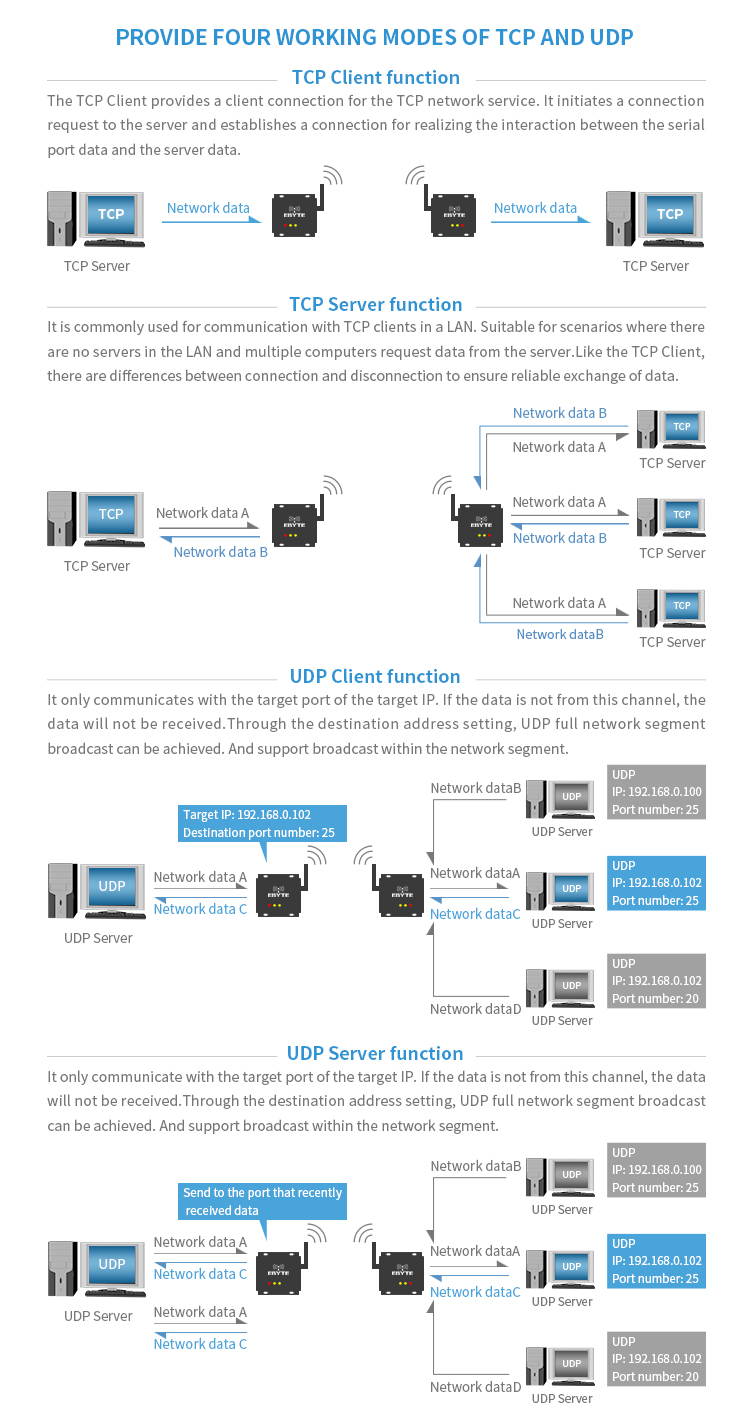

| 4 | Simple transparent transmission | TCP Server, TCP Client, UDP Server, UDP Client, Cloud transparent transmission |
| 5 | TCP Server connection | Max of 6 channel TCP connection |
| 6 | IP acquisition method | Static IP, DHCP |
| 7 | DNS | Available |
| 8 | Configured by user | Web page configuration |
| 9 | Antenna interface | SMA |
| 10 | Operating temperature | -40 ~ +85℃ |
| 11 | Operating humility | 10% ~ 90%, Relative humidity, no condensation |

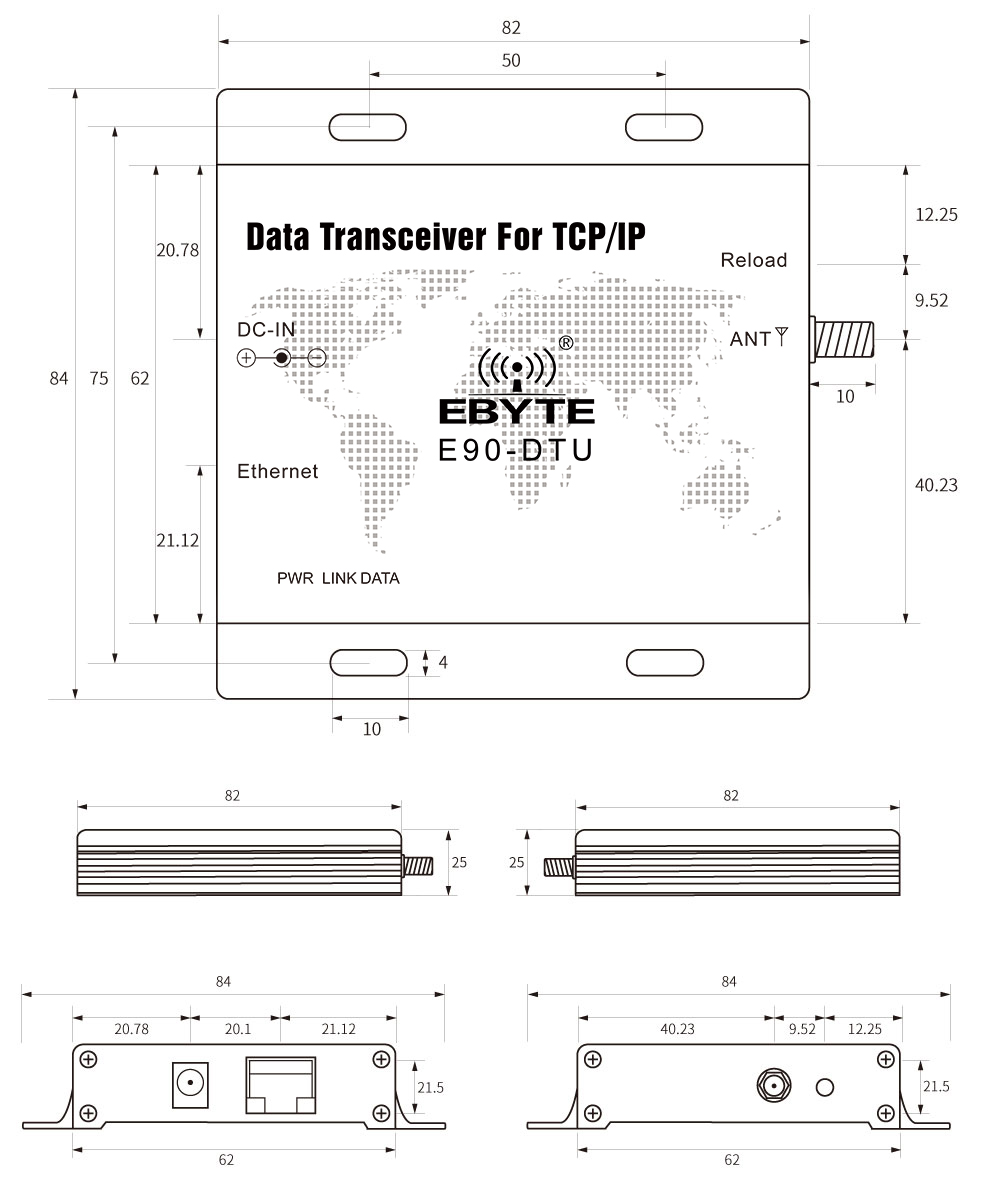

| 12 | Size | 82*84*25 (mm) |
| 13 | Average weight | 130g±5g |
| 14 | Storage temperature | -40～+125℃ |
| 15 | Frequency(MHz) | 220.125~236.125, ISM band |
| 16 | TX current(mA) | 270.2mA@12V, Instant power consumption |
| 17 | RX current(mA) | 70.4mA@12V |
| 18 | Receiving sensitivity(dBm) | -148, Air data rate 0.3 kbps |
| 19 | Air data rate(bps) | 0.3k~15.6k, Configured by user |
| 20 | Distance | 10000m, In open and clear air, antenna gain 5dBi, at height of 2.5 m, air data rate 2.4 kbps |
| 21 | Transmission length | 240 Btye, Can be set as 32/64/128/240 bytes each packet |
| 22 | Receiving length | 1000 Btye |

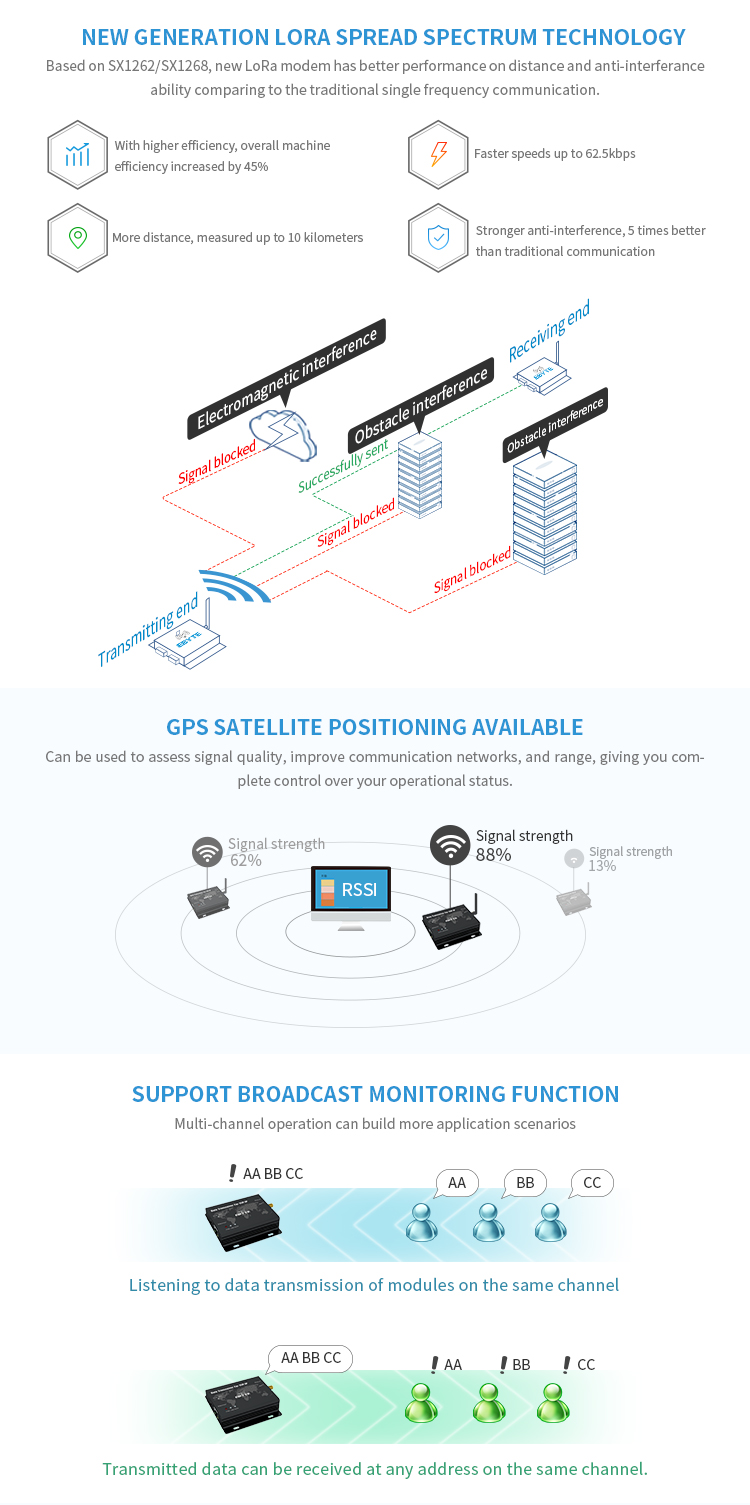

| 23 | Modulation method | New generation LoRa |
u200aPackage includes:
u200a
u200a1 x Transparent Transmission Module
Show More
Specifications
Attribute
Value
Search
Wireless Capability
Bluetooth + LoRa + Cellular
Wi‑Fi Standard
802.11B/G/N
Model
E90
Ethernet
Support
Description
| No | Item | Specification |
| 1 | Power supply | 8V~28VDC, will burn over 28V, 12V or 24V is recommended |
| 2 | Ethernet specification | RJ45, support 10/100Mbps |
| 3 | Network protocol | IP, TCP/UDP, ARP, ICMP, IPV4 |
| 4 | Simple transparent transmission | TCP Server, TCP Client, UDP Server, UDP Client, Cloud transparent transmission |
| 5 | TCP Server connection | Max of 6 channel TCP connection |
| 6 | IP acquisition method | Static IP, DHCP |
| 7 | DNS | Available |
| 8 | Configured by user | Web page configuration |
| 9 | Antenna interface | SMA |
| 10 | Operating temperature | -40 ~ +85℃ |
| 11 | Operating humility | 10% ~ 90%, Relative humidity, no condensation |
| 12 | Size | 82*84*25 (mm) |
| 13 | Average weight | 130g±5g |
| 14 | Storage temperature | -40～+125℃ |
| 15 | Frequency(MHz) | 220.125~236.125, ISM band |
| 16 | TX current(mA) | 270.2mA@12V, Instant power consumption |
| 17 | RX current(mA) | 70.4mA@12V |
| 18 | Receiving sensitivity(dBm) | -148, Air data rate 0.3 kbps |
| 19 | Air data rate(bps) | 0.3k~15.6k, Configured by user |
| 20 | Distance | 10000m, In open and clear air, antenna gain 5dBi, at height of 2.5 m, air data rate 2.4 kbps |
| 21 | Transmission length | 240 Btye, Can be set as 32/64/128/240 bytes each packet |
| 22 | Receiving length | 1000 Btye |
| 23 | Modulation method | New generation LoRa |
Package includes:
1 x Transparent Transmission Module
