Elecbee DC3.7V/5V/12V 433MHz Wide Voltage 2 Way Remote Control Switch Miniature Universal Learning Code Normal Open and Close

SKU: EB0042403

Favorites

Key Features

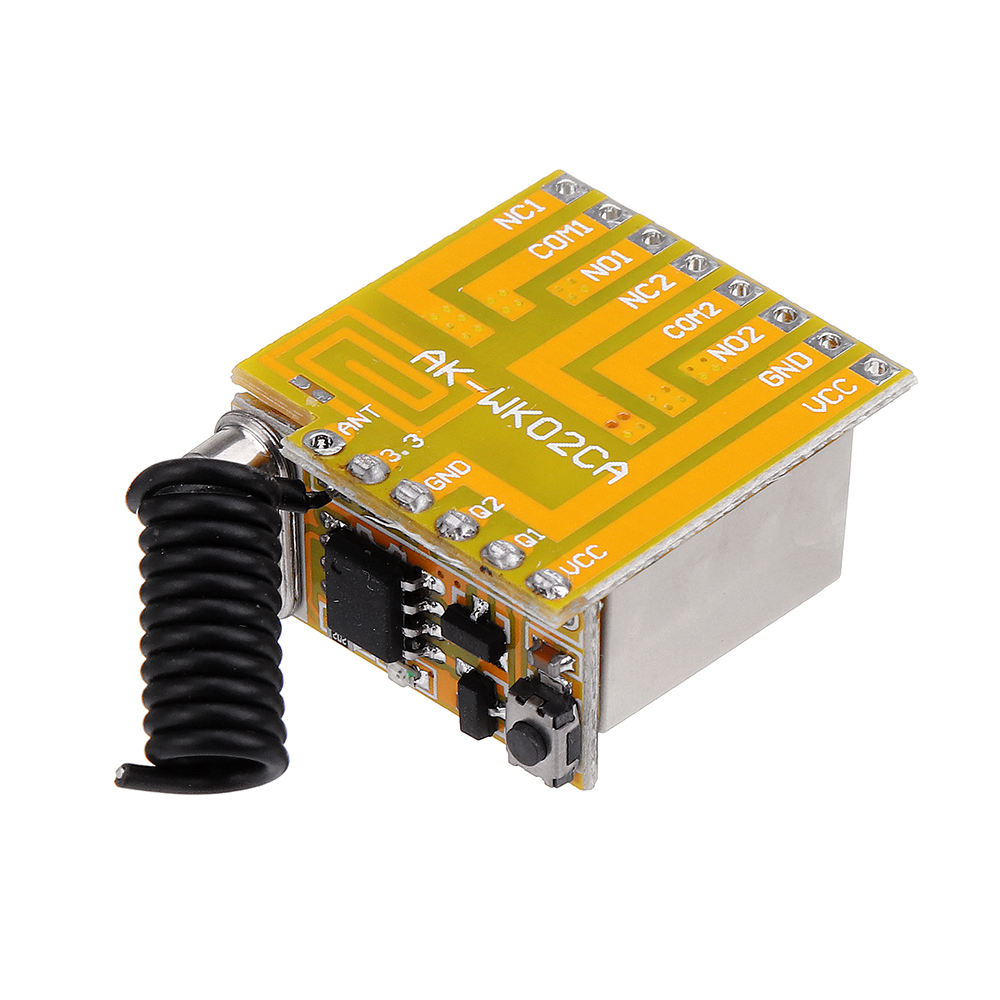

Product model: AK-WK02CA

Product Name: Two micro controller

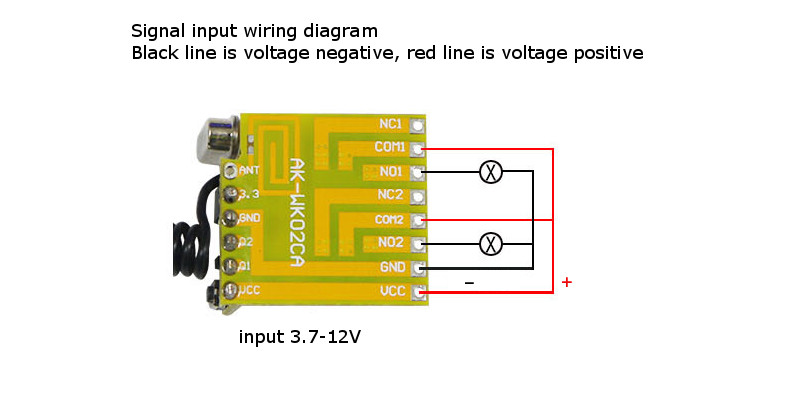

Working voltage: 3.7V-12V (minimum 4V required for jog mode)

Power consumption situation: Standby current is only 7MA, working is 30MA current

Coding method: learn code pairing, can learn fixed code and learning code chip remote control

Working frequency: 433MHz

Working mode: Jog (default), self-locking, interlocking

Load size: <= 1A (equipment within 12W for safe use)

Product size: 20 x 22 x 12mm

How to use:

Learning method and step description:

xa0

1. Jog mode: Hold down the learning button, press the buttonxa0oncexa0when the indicator light, short press A button, the indicator light flashes twice, then short press B button, the indicator light flashes twice, it is “jog mode'' Learning success.

2. Self-locking mode: Hold down the learning button,xa0press the buttonxa0oncexa0when the indicator light, press and hold the A button until the indicator light flashes twice, then immediately press and hold the B button, the indicator light flashes twice, then the "self-locking mode" learning success .

3. Interlock mode: Hold down the learning button,xa0press the buttonxa0twicexa0when the indicator light, then press the A button until the indicator flashes twice, then immediately press and hold the B button, and the indicator flashes twice. Mode "learning success.

xa0

Code clearing method:

xa0

Press and hold the learning button for about 8 seconds. The indicator light turns on (blinks 3 times) to off, that is, the code is successfully cleared.

Tips: You must clear the code before you can switch to any work mode to learn

Specifications

Show Similar Products >

Attribute

Value

Model

DC3

Show Similar Products >

Description

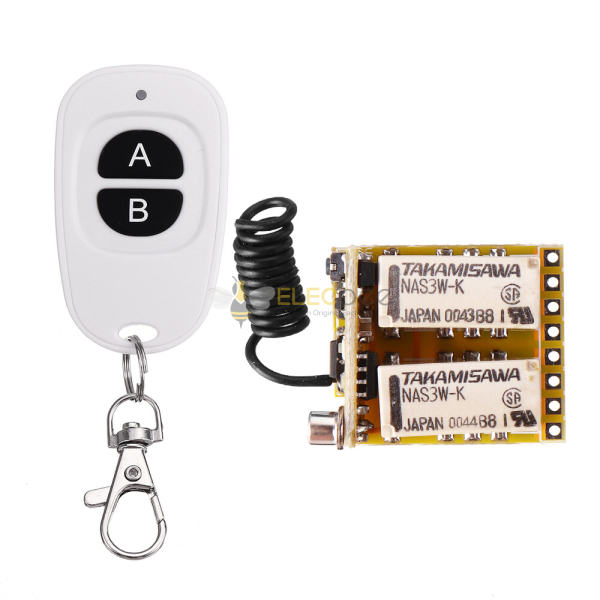

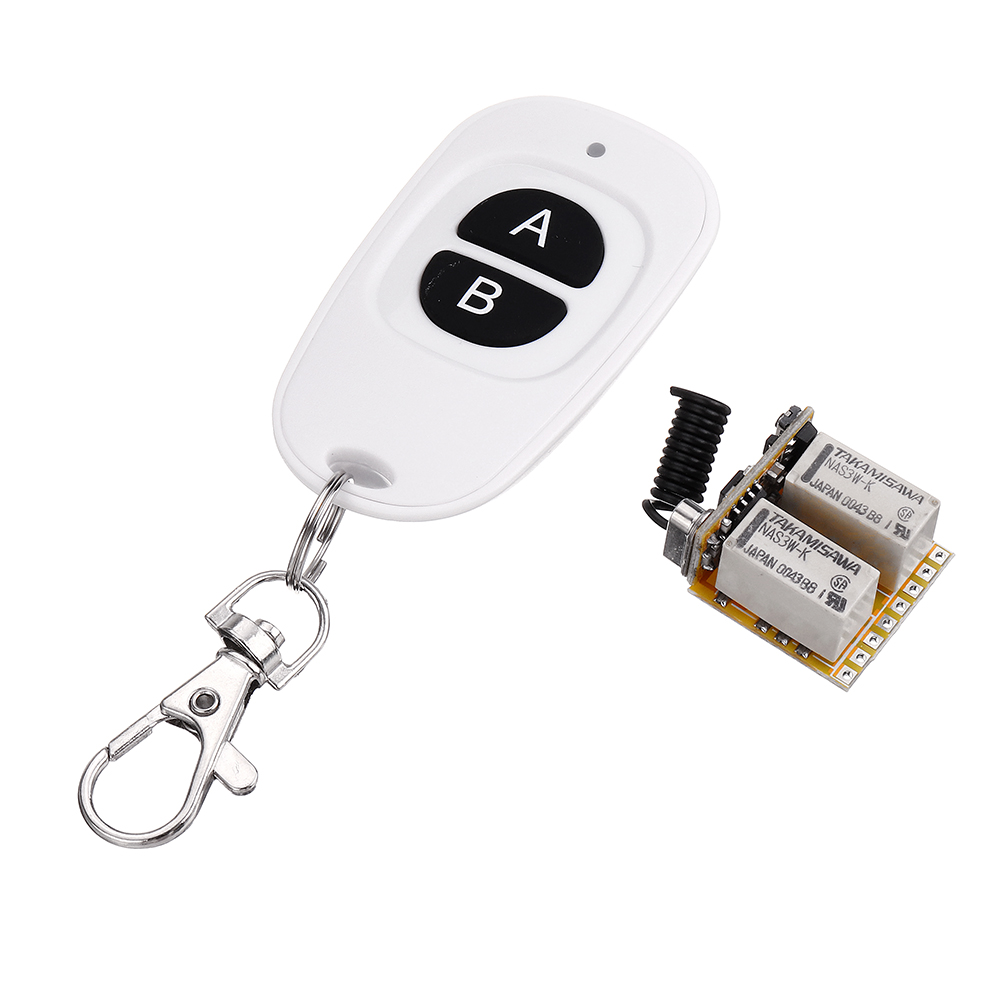

Package includes:

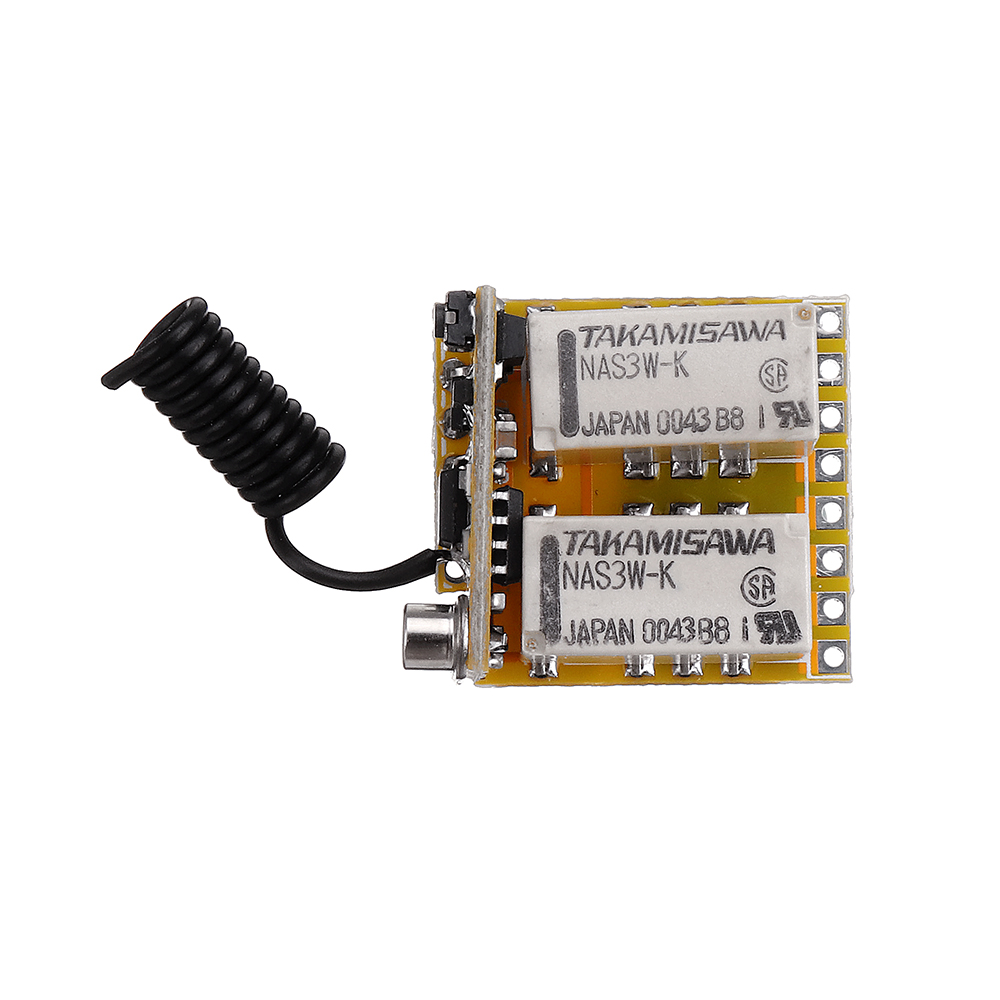

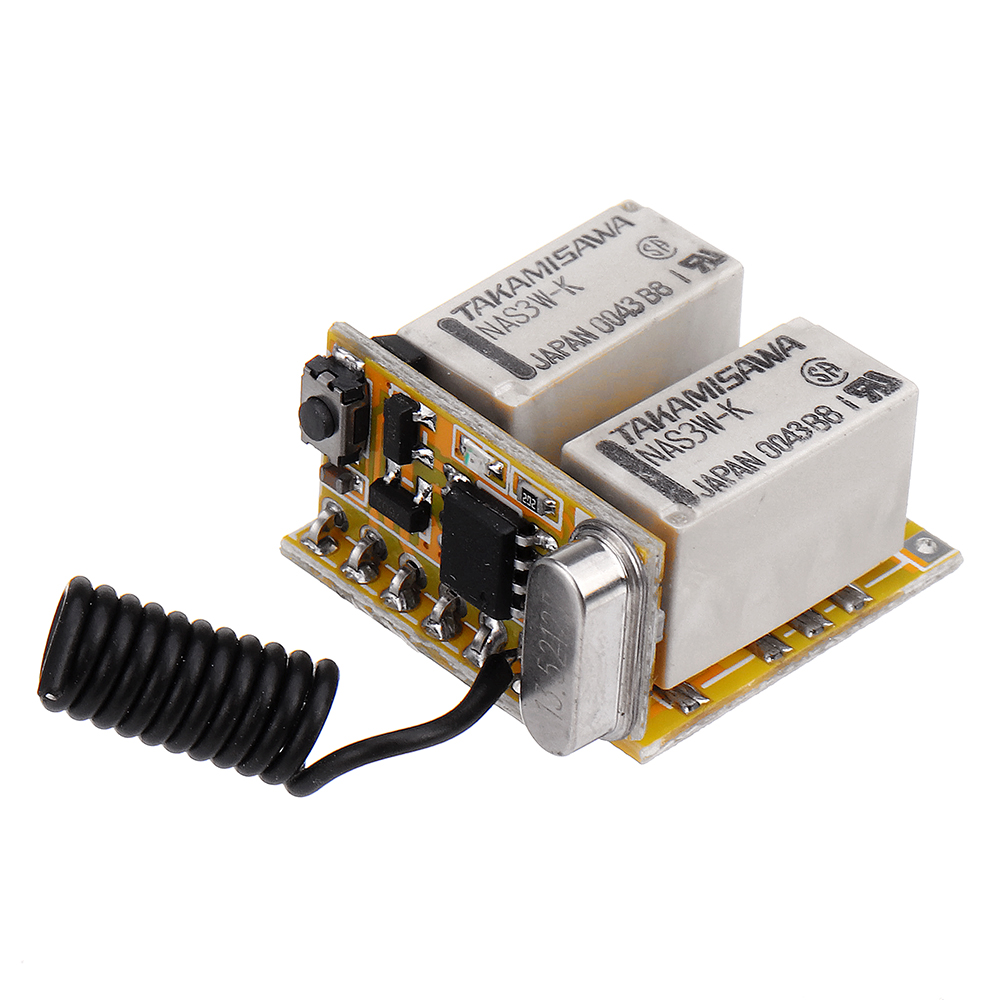

1 x Receiver board

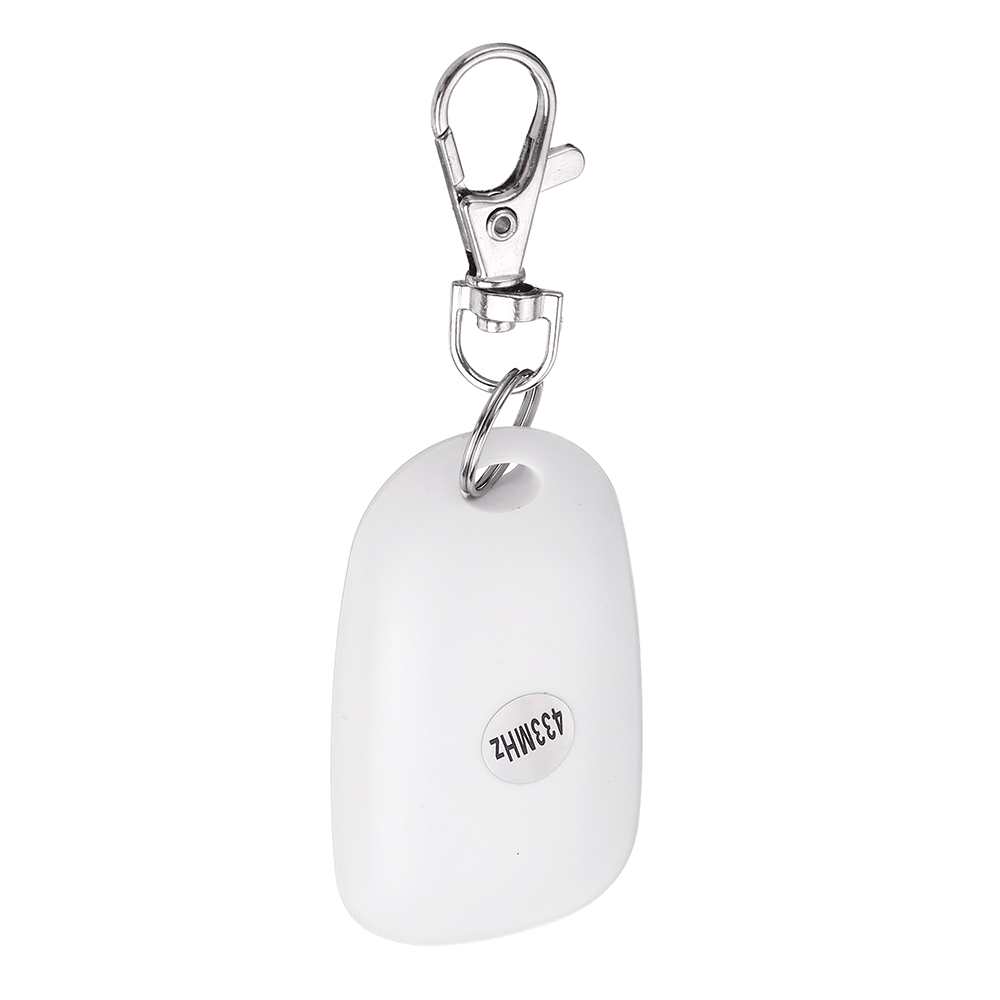

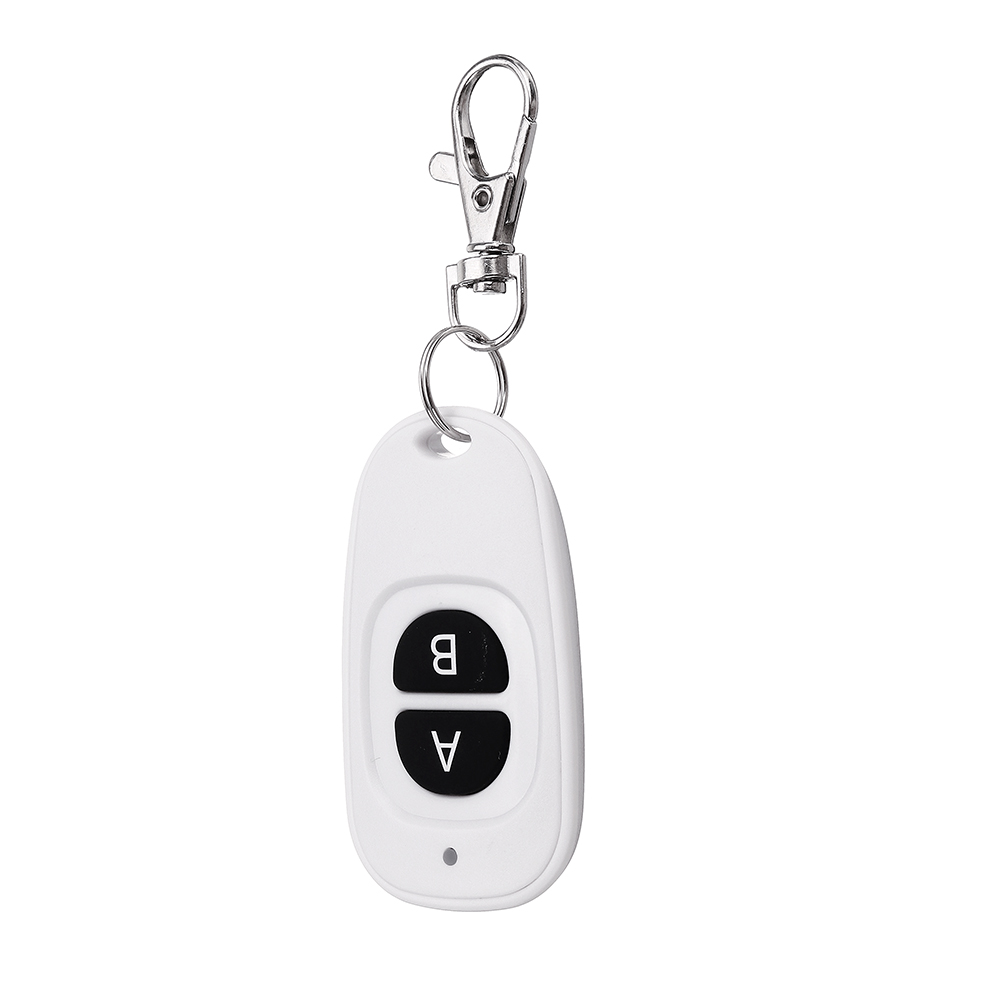

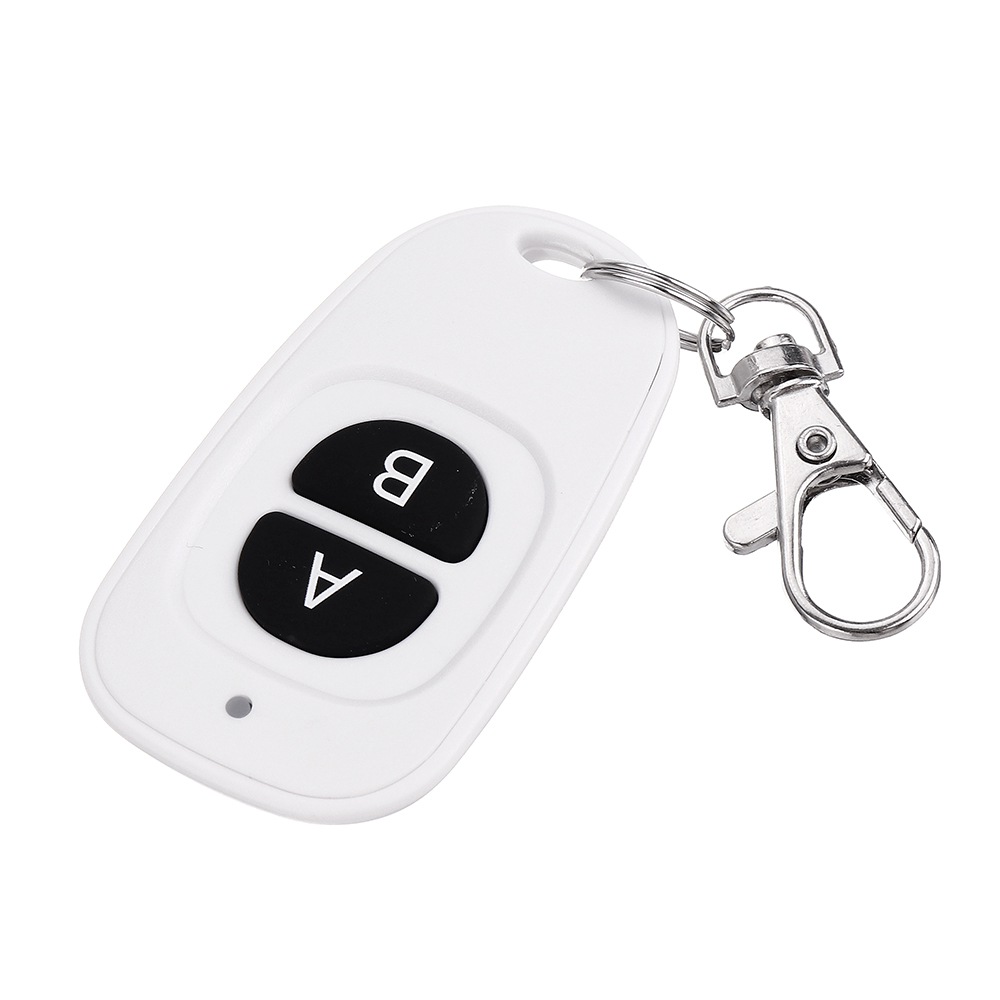

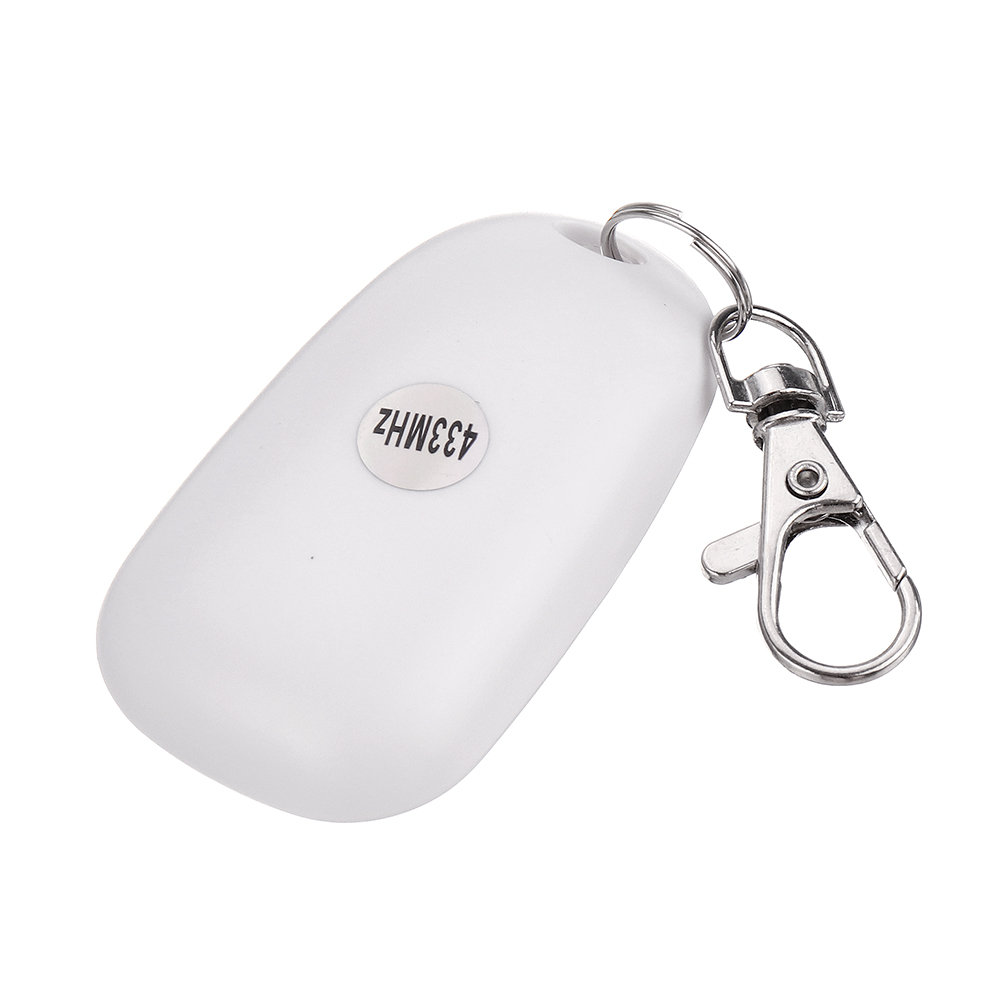

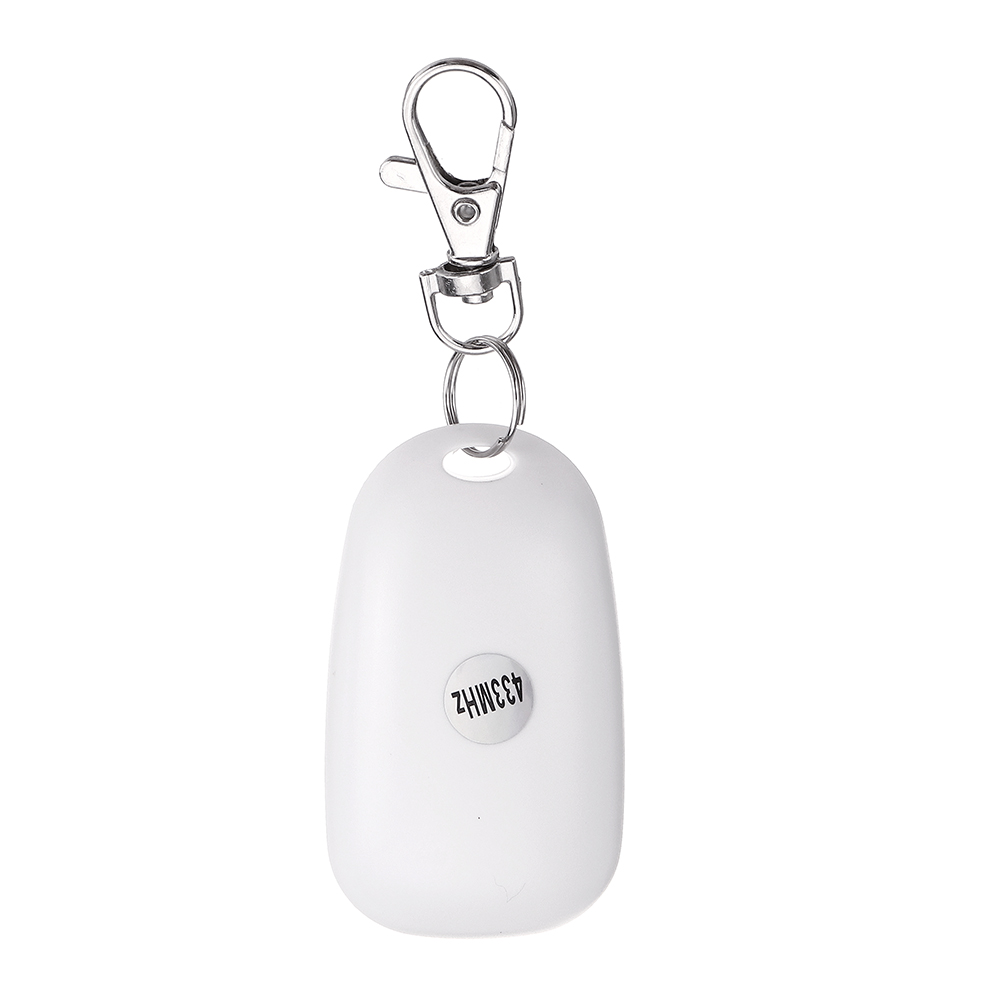

1 x Remote control

DC37V5V12V-433MHz-Wide-Voltage-2-Way-Remote-Control-Switch-Miniature-Universal-Learning-Code-Normal--1627197
