ESP8266 Serial Wi-Fi Wireless ESP-01 Adapter Module 3.3V 5V

$6.99 Price drop reminder
  • Brand: Elecbee
  • SKU: EB0042249
  • Availability: In Stock
- +
Total Price: $6.99
Buy Now

Ask a Question About This Product

Your Name*
Your Email*
Topic*
Message
SUBMIT
Description:

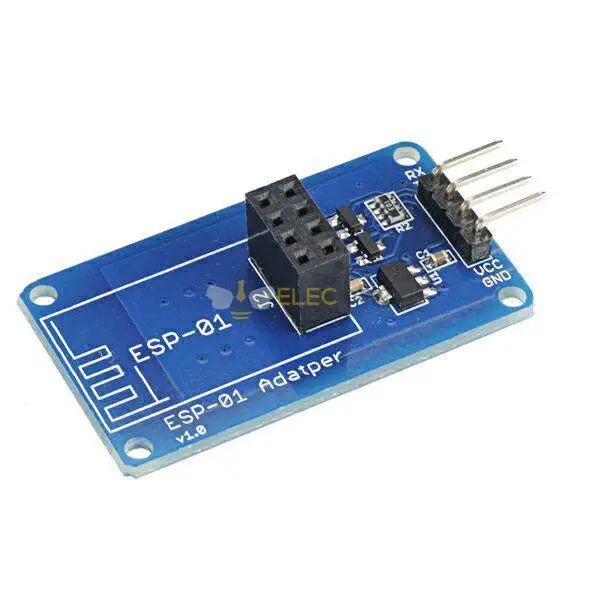

A adapter module for ESP-01 Wi-Fi module. 3.3V voltage regulator circuit and onboard level conversion circuit can make 5V microcontroller easy to use with ESP-01 Wi-Fi module.
Also, the item can be used with UNO R3 or compatible board.

Here is schenmatic: https://img.elecbee.com/ic/download/pdf/20160408023336ESP-01%20Adapter%20module%20Schenmatic.pdf

Features:

Working voltage: 4.5~5.5V (On-board 3.3V LDO Regulator)
Working current: 0-240mA
Interface logic voltage: 3.3V / 5V compatible(On-board level shift circuit)

Note: The item can be used with item 947259, item 947259 is not included!

Package included:

1 x ESP-01 Adapter module






ESP8266-Serial-Wi-Fi-Wireless-ESP-01-Adapter-Module-33V-5V-1047322,ESP8266-Serial-Wi-Fi-Wireless-ESP-01-Adapter-Module-33V-5V-1047322,ESP8266-Serial-Wi-Fi-Wireless-ESP-01-Adapter-Module-33V-5V-1047322
