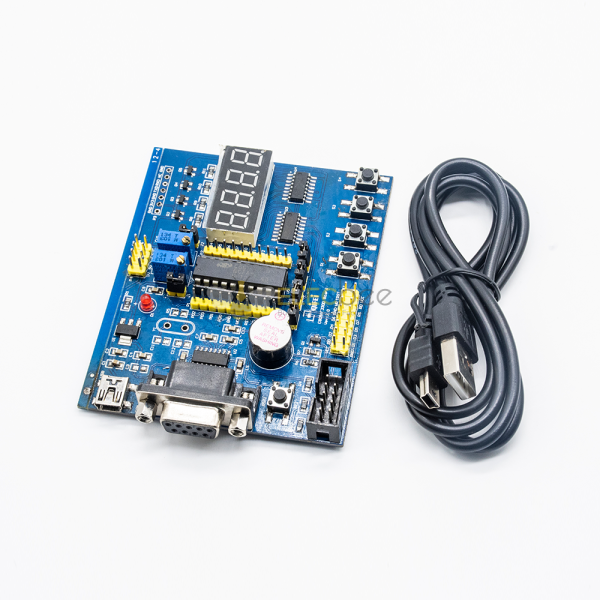

Elecbee Development Board Learning Experiment Programmer MicroController C8051F Mini System Development Board with USB Cable

SKU: EB0041799

Favorites

Key Features

1. C8051F330 can be evaluated (F330D is in-line, F330 is QFN package).

2. All resources of C8051F330 are open to users (connector mode).

3. Can test all resources in C8051F330.

4. Onboard

(1) 4-bit LED serial reality (595);

(2) Buzzer;

(3) Dual-channel AD acquisition;

(4) RS232 interface;

(5) TFT LCD screen interface;

(6) Wireless module interface;

(7) JTAG emulator interface;

(8) Lead out all IO ports to facilitate experiment and test;

(9) MINI usb power supply;

(10) Reset button, which can be reset manually;

Specifications

Show Similar Products >

Description

File download: Click to open

C8051F330D is the best choice for getting started with C8051F series MCU. On the basis of learning the basic STC89 series 51 MCU and AT or AVR MCU, choose the enhanced C8051F series MCU is your best choice!

(1) 8051 compatible CIP-51 core with high speed and pipeline structure (up to 25MIPS)

(2) Full-speed, non-intrusive in-system debugging interface (on-chip)

(3) True 10-bit 200ksps 16-channel single-ended / differential ADC with analog multiplexer

(4) 10-bit current output DAC

(5) High-precision programmable 25MHz internal oscillator

(6) 8KB of 768 bytes of on-chip RAM that can be programmed in the FLASH memory of the system

(7) SMBus / I2C, enhanced UART and enhanced SPI serial interface implemented by hardware

(8) 4 general 16-bit timers

(9) Programmable counter / timer array (PCA) with 3 capture / compare modules and watchdog timer function

(10) On-chip power-on reset, VDD monitor and temperature sensor

(11) On-chip voltage comparator

(12) 17 port I / O (allow 5V input)

Development Board

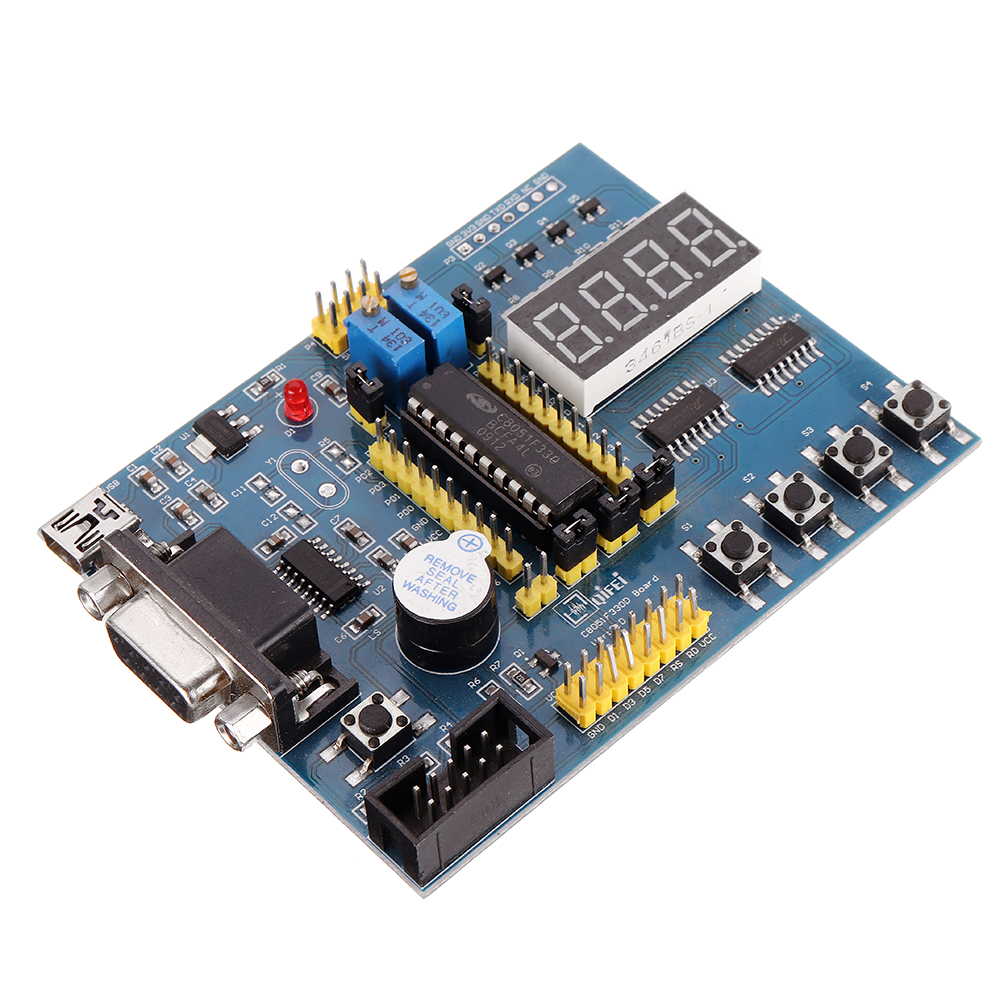

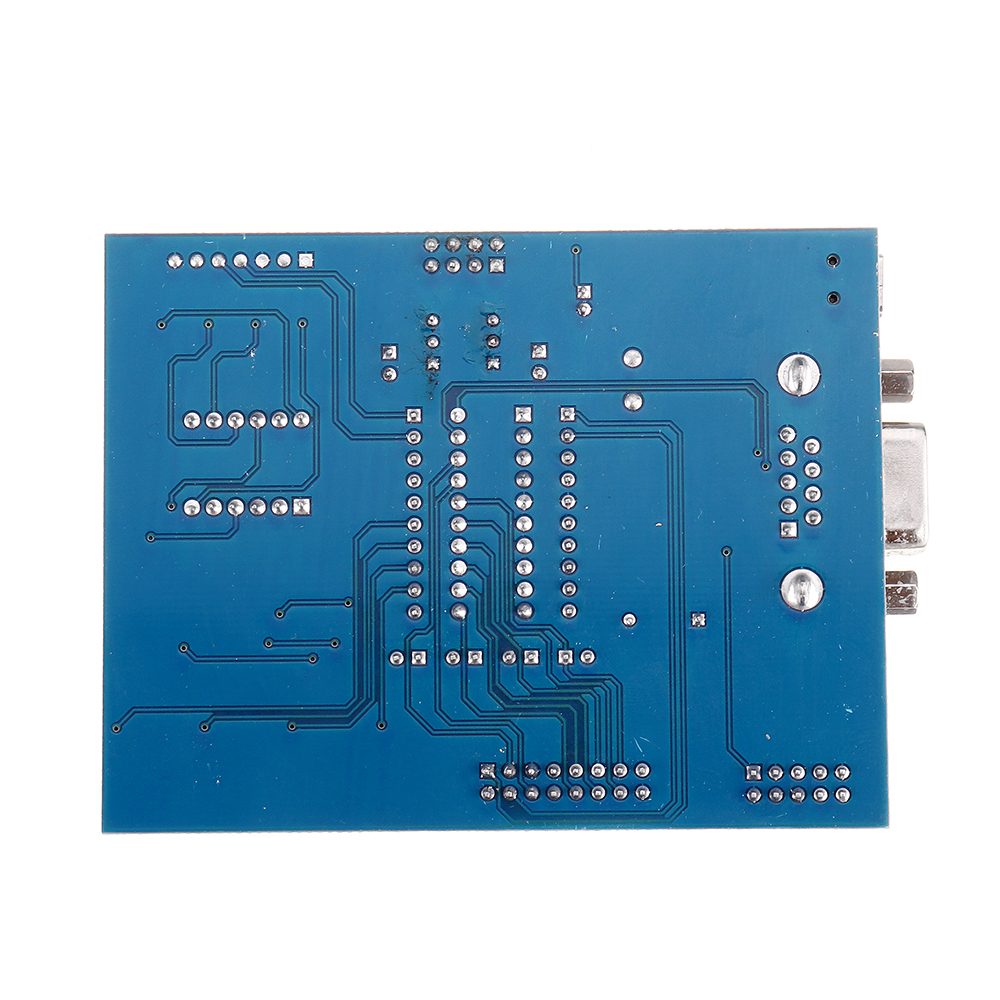

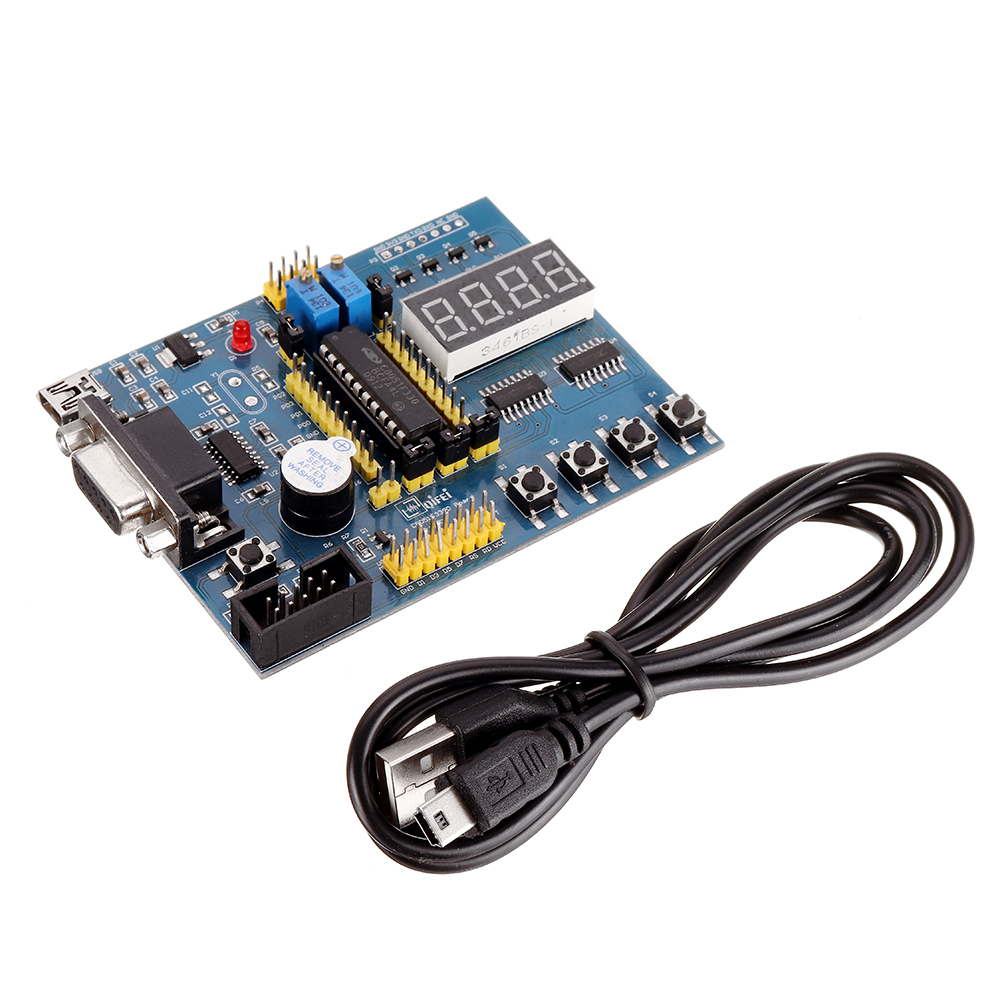

1 x C8051f330 C8051F330D Development Board

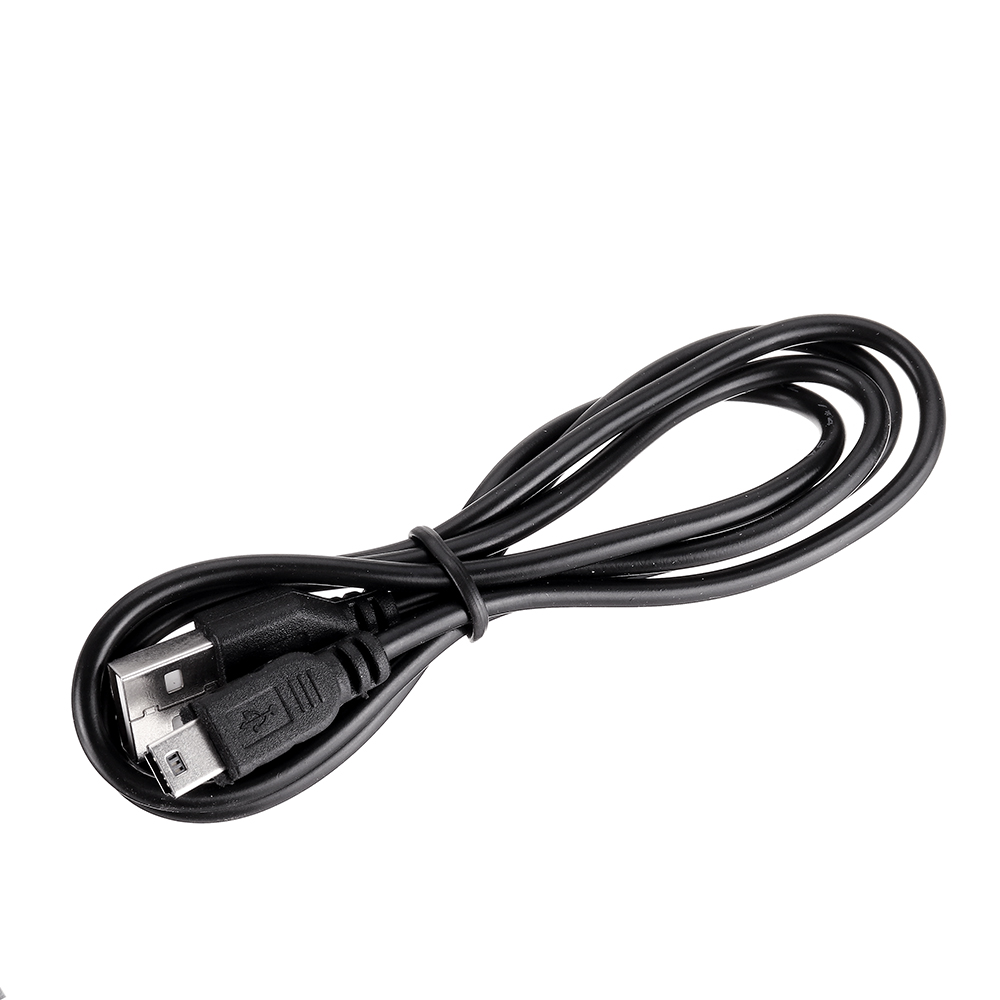

1 x USB Cable

C8051f330-C8051F330D-Development-Board-Learning-Experiment-Programmer-MicroController-C8051F-Mini-Sy-1660579
