Elecbee RF Demo Kit RF Demo Board Development Board Test Board Calibration Board

SKU: EB0041601

Favorites

Key Features

Specifications

Show Similar Products >

Attribute

Value

Wireless Capability

Bluetooth + Cellular

Model

DESCRIPTIONIMAGE0

Show Similar Products >

Description

Feature:

RF Demo Kit NanoVNA RF test board demo calibration board, used to learn vector network analyzer VNA, Antenna Analyzer antenna analyzer test calibration learning use.

contain:

1. Filter:

A. Short wave low pass filter LPF: 30MHz

B. FM high-pass filter HPF: 100MHz

C. Common SAW band-pass filter BPF: 433MHz

D. Video ceramic wave trap BSF: 6.5MHz

2. RLC series and parallel circuit

Including R, L, C and combination circuit

3. Open and short circuit and load calibration circuit

4. Attenuation circuit

Package includes:

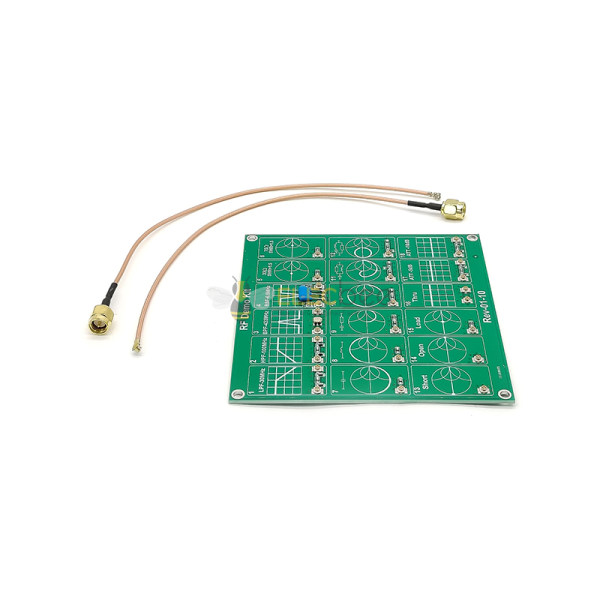

1 x RF-Demo-Kit PCB

2 x UFL adapter cable

RF-Demo-Kit-RF-Demo-Board-Development-Board-Test-Board-Calibration-Board-1662599
