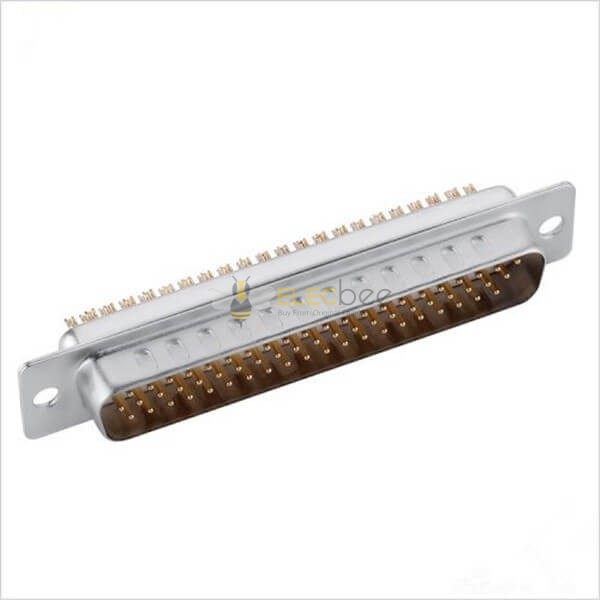

Elecbee 78 Pin D Sub High Density Male Machined Contacts Connector solder type
SKU: EB-602-0031
Favorites
Key Features
Features:
- D-sub Connector,High density,Straight Type/180°,Male/Plug,Mahined 78Pin,Solder Type;
- Metal shell provides EMI/RFI shielding;
- High density design maximizes board space;
- High Quality with 30 days 100% Money back;
- From the OEM Original Factory, same quality with much better price.
Applications:
- data transmission
- Consumer Electronics
- telecommunications
- measurement
- regulation and control devices
- Military Equipment
Show More
Specifications
Attribute
Value
Search
Connector Style
D-Sub
Contact Function
Signal
Number of Rows
4
Number of Ports
1
Mounting Type
Cable Type
Mounting Feature
Shell with Open Hole
Termination
Solder
Contact Type
Male Pin
Number of Positions
78 Pin
Contact Finish
Gold Plated
Insulation Color
White
Contact Processing Technic
Machined
