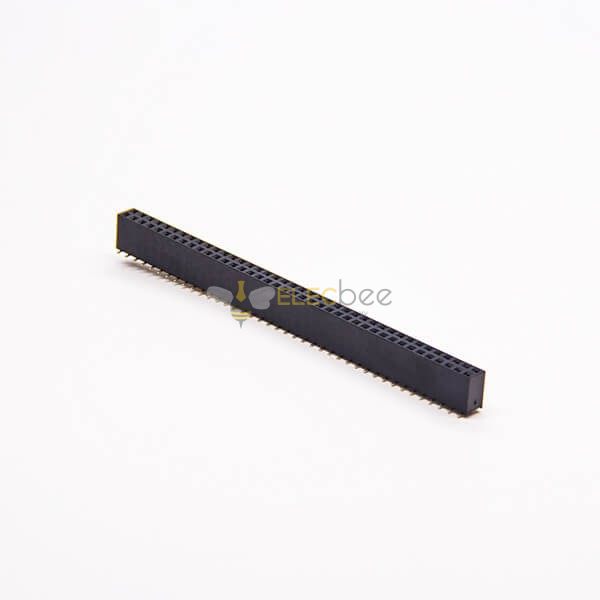

Elecbee 80 Pin Female Header Connector Dual Row SMT Type 8.5mm Plastic Height
SKU: EB-609-0045
Favorites
Key Features
Features:
- Female Header Connector,80Pin,Female/Jack,Straight/180°,SMT,Dual Row
- Normally associated with ribbon cable connectors, or worked as recipients for jumpers
- consists of one or more rows of male pins typically spaced 2.54 millimetres (0.1 in) apart, 5.08 millimetres (0.2 in), 5.00 millimetres (0.197 in), 3.96 millimetres (0.156 in), 2.00 millimetres (0.079 in), 1.27 millimetres (0.05 in) and 1.00 millimetre (0.04 in);
- High Quality with 30 days 100% Money back;
- From the OEM Original Factory, same quality with much better price.
Show More
Specifications
Attribute
Value
Search
Connector Type
Jack
Number of Rows
2
Mounting Type
Panel Mount
Termination
Solder
Contact Type
Female Pin
Number of Positions
80 Pin
Material Flammability Rating
UL94 V-0
Operating Temperature
-40℃~+105℃
Contact Finish
Gold Plated
Insulating Materials
PPA
Insulation Color
Black
