Elecbee TNCA Female Straight Connector, 12.7mm / .500″ Square Flange, 1.5mm / .059″ Flat Pin
SKU: EB-DRF-0233
Favorites
Key Features
- Durable metal steel construction for long-lasting performance.
- 12.7mm/.500" square flange for secure bulkhead mounting.
- Features a locking lever for reliable, tool-free connections.
- 1.5mm/.059" flat pin ensures precise and stable contact.
Show More
Description
Part Number: EB-DRF-0233

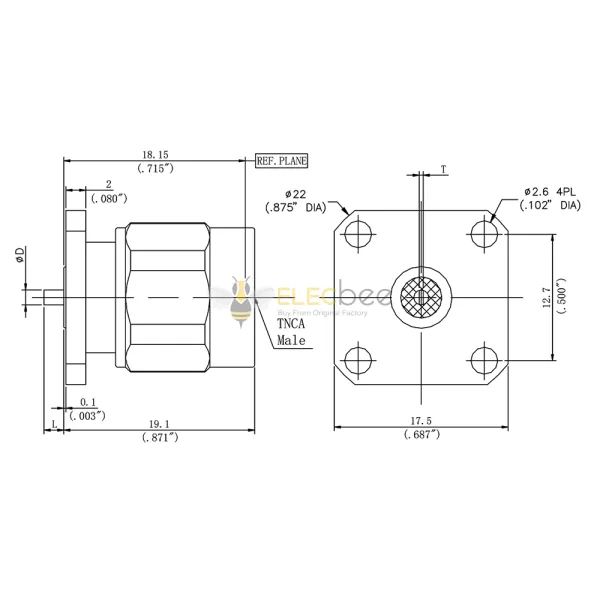

Description: TNCA Female Straight Flange RF Connector, 12.7mm / .500″ Square Flange Jack with Φ1.5mm / .059″ Flat Pin Terminal.
This EB-DRF-0233, TNCA type 4-hole female straight flange RF connector with size 12.7mm / .500inch square flange jack and Φ1.5mm / 0.059inch pin terminal, frequency range from DC to 18GHz, 50Ω impedance, VSWR 1.15:1 (max) for DC~18GHz, 1500V withstanding voltage, ≥5000mΩ insulation resistance, 500 cycles durability and -55°C~+165°C operating temperature.
Advantages
- Big Size
- High Reliable
- Good Mechanical Performance
- Wide Frequency Range from DC to 18GHz
Applications
- General Purpose Test
- Field Replacement Connector
- Rack and Panel Mount Application
- Φ1.5mm / 0.059inch Flat Pin Terminal
Key Features
| Polarity | Standard |
| Interface | TNCA Type |
| Connector Type | Jack |
| Connector Gender | Female |
| Impedance | 50Ω |
| Body Shape | Straight |
| Body Mounting | 4 Hole Flange |
| Attachment Method | Solder |
Performance Features
| Frequency Range | DC~18GHz |
| VSWR： | DC~18GHz: 1.15:1 (Max) |
| Contact Resistance | Centre Conductor ≤1.5mΩ |
| Outer Conductor ≤0.2mΩ | |
| Insulation Resistance | ≥5000mΩ |
| Withstanding Voltage | 1500V |
| Durability | 500 Cycles |
| Operating Temperature | -55℃~+165℃ |
Material Specifications
| Housing | Type 303 Stainless Steel |
| Polished & Passivated | |
| Centre Contact | Beryllium Copper Plated |
| Gold (MIL-G-45204) | |
| Insulators | PTFE & PEI |
