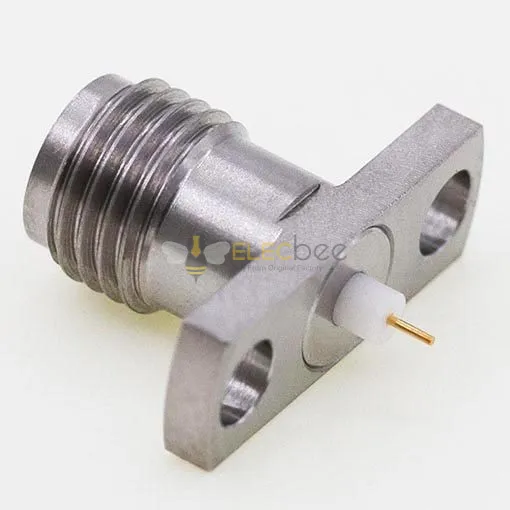

Elecbee 2.92mm Thread-in Connector, 14 x 4.8mm / 0.550 x 0.190″ Flange Jack 0.3mm /.012″ Pin
SKU: EB-DRF-0093
Favorites
Key Features
- Waterproof IP67 rated for harsh environments.
- 5-pin design supports 32A and 240-415V high power.
- Thread-in connector ensures secure, stable connection.
- Industrial-grade flange jack for durable use.
- Supports 3P+E+N configuration for versatile wiring.
Show More
Description
Part Number: EB-DRF-0093
Description: 2.92mm Female Bulkhead Thread-in Connector, 14 x 4.8mm / 0.550 x 0.190inch Flange Jack with Cylindrical Contact & Φ0.3mm / .012″ Pin Terminal.
This EB-DRF-0093, 2.92mm 2 hole female bulkhead thread-in connector with size 14 x 4.8mm / 0.550 x 0.190inch flange jack, cylindrical contact & Φ0.3mm / .012inch pin terminal, frequency range from DC to 40GHz, 50Ω impedance, VSWR 1.15:1 (max) for DC~40GHz, 750V withstanding voltage, ≥3000mΩ insulation resistance, 500 cycles durability and -55°C~+165°C operating temperature.
Advantages
- Small Size
- High Reliable
- Good Mechanical Performance
- Wide Frequency Range from DC to 40GHz
Applications
- General Purpose Test
- Bulkhead Thread-in RF Connection
- Rack and Panel Mount Application
- Diameter 0.3mm / .012″ Pin Terminal
Key Features
| Polarity | Standard |
| Interface | 2.92mm |
| Connector Type | Jack |
| Connector Gender | Female |
| Impedance | 50Ω |
| Body Shape | Straight |
| Body Mounting | 2 Hole Flange |
| Attachment Method | Solder |
Performance Features
| Frequency Range | DC~40GHz |
| VSWR： | DC~40GHz: 1.15:1 (Max) |
| Contact Resistance | Centre Conductor ≤3.0mΩ |
| Outer Conductor ≤2.0mΩ | |
| Insulation Resistance | ≥3000mΩ |
| Withstanding Voltage | 750V |
| Durability | 500 Cycles |
| Operating Temperature | -55℃~+165℃ |
Material Specifications
| Housing | Type 303 Stainless Steel |
| Polished & Passivated | |
| Centre Contact | Beryllium Copper Plated |
| Gold (MIL-G-45204) | |
| Insulators | PEI or PEI & PTFE |
