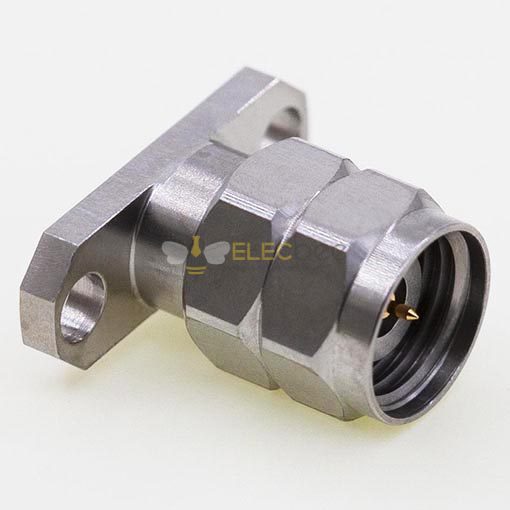

Elecbee 2.4mm Replaceable Connector 12.7 x 4.8mm / 0.50 x 0.19inch Flange for 0.30mm / .012″ Pin
SKU: EB-DRF-0046
Favorites
Key Features
- High-strength connection for reliable performance.
- Replaceable 2.4mm connector for easy maintenance.
- Precision flange: 12.7 x 4.8mm fits 0.30mm pin perfectly.
Show More
Description
Part Number:EB-DRF-0046
Description: 2.4mm Male Replaceable Connector, 12.7 x 4.8mm / 0.500 x 0.190inch Flange Plug Receptacle for Φ0.30mm / .012″ Pin.
ThisEB-DRF-0046, 2.4mm 4 hole male replaceable connector with size 12.7 x 4.8mm / 0.500 x 0.190inch flange plug, receptacle for Φ0.30mm / 0.012inch pin, frequency range from DC to 50GHz, 50Ω impedance, VSWR 1.15:1 (max) for DC~50GHz, 750V withstanding voltage, ≥3000mΩ insulation resistance, 500 cycles durability and -55°C~+165°C operating temperature.
Advantages
- Small Size
- High Reliable
- Good Mechanical Performance
- Wide Frequency Range from DC to 50GHz
Applications
- General Purpose Test
- Field Replacement Connector
- Rack and Panel Mount Application
- Receptacle for Φ0.30mm / .012″ Pin
Key Features
| Polarity | Standard |
| Interface | 2.4mm |
| Connector Type | Plug |
| Connector Gender | Male |
| Impedance | 50Ω |
| Body Shape | Straight |
| Body Mounting | 4 Hole Flange |
| Attachment Method | Field Replacement |
Performance Features
| Frequency Range | DC~50GHz |
| VSWR： | DC~50GHz: 1.15:1 (Max) |
| Contact Resistance | Centre Conductor ≤3.0mΩ |
| Outer Conductor ≤2.0mΩ | |
| Insulation Resistance | ≥3000mΩ |
| Withstanding Voltage | 750V |
| Durability | 500 Cycles |
| Operating Temperature | -55℃~+165℃ |
Material Specifications
| Housing | Type 303 Stainless Steel |
| Polished & Passivated | |
| Centre Contact | Beryllium Copper Plated |
| Gold (MIL-G-45204) | |
| Insulators | PEI or PEI & PTFE |
