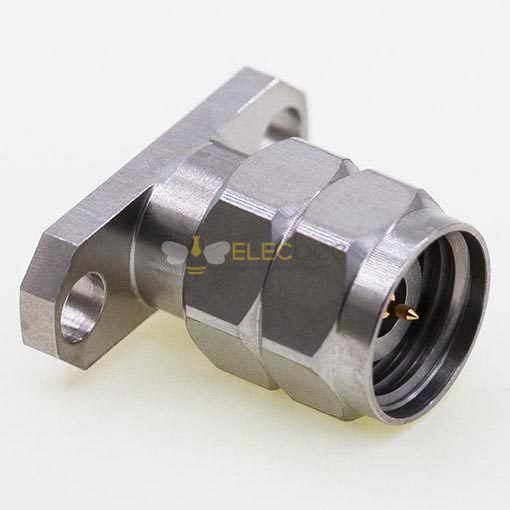

Elecbee 2.4mm Replaceable Connector 12.7 x 4.8mm / 0.50 x 0.19inch Flange for 0.51mm / .020″ Pin

SKU: EB-DRF-0045

Favorites

Key Features

Polarity	Standard
Interface	2.4mm
Connector Type	Plug
Connector Gender	Male
Impedance	50Ω
Body Shape	Straight
Body Mounting	4 Hole Flange
Attachment Method	Field Replacement

Performance Features

Frequency Range	DC~50GHz
VSWR：	DC~50GHz: 1.15:1 (Max)
Contact Resistance	Centre Conductor ≤3.0mΩ
Contact Resistance	Outer Conductor ≤2.0mΩ
Insulation Resistance	≥3000mΩ
Withstanding Voltage	750V
Durability	500 Cycles
Operating Temperature	-55℃~+165℃
