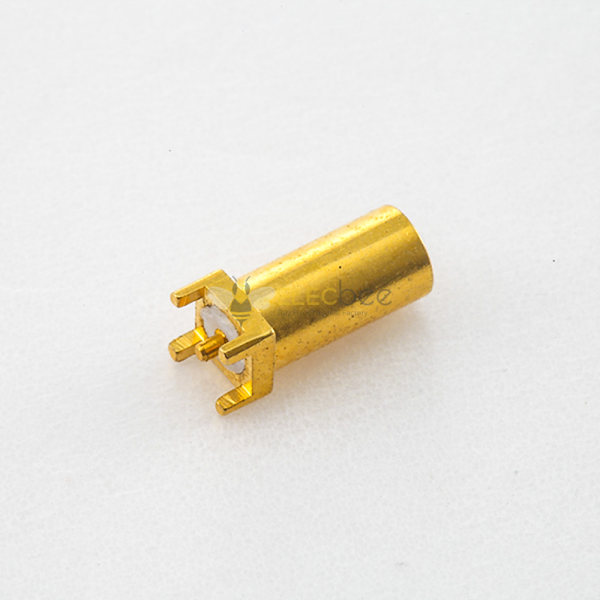

Elecbee MMCX Connector PCB Mount Female Straight SMT Type 50ohm
SKU: EB-211-0167
Favorites
Key Features
Features:
- Pcb Mount, Jack/female, Straight/180°, 50Ω, Through Hole;
- Micro-miniature version of MCX with all features of MCX series conenctor.;
- Snap-on Interface ideal for quick Installation and discount;
- High cost-effective with excellent boardband performance and low reflections.
Appliance:
- Consumer Electronic: Smart phones GPS and wireless antennas,
- Aerospace and Defense: GPS
- Technology: Technology Devices
- Telecommunications: GPS tracking, positioning and navigation devices, Wireless Base Station, Wireless-LAN, Wireless antennas
- Data/Communications: Wireless-LAN, Wireless-PAN(bluetooth), Wireless-WAN
- Industrial: Computer connections-LAN/WAN
Show More
Specifications
Attribute
Value
Search
Connector Type
Jack
Number of Ports
1
Mounting Type
Panel Mount
Mounting Feature
SMT
Termination
Solder
Contact Type
Female Pin
Shell Finish
Gold Plated
Impendance
50 Ohms
Frequency Max
6 GHz
Connector Series
MMCX
Color
Gold
Fastening Type
Push-on
Orientation
Straight
Shell Material
Copper Alloy
Shopping Guide
Shipping | Delivery Period | For in-stock parts, orders are estimated to ship out in 3 days. Elecbee ships orders once a day at about 5pm except Sunday. Once shipped, estimated delivery time depends on the below carriers you chose. DHL Express: 3-7 business days DHLeCommerce: 12-22 business days FedEx International Priority: 3-7 business days EMS: 10-15 business days Registered Air Mail: 15-30 business days | |
| Shipping Rates | Shipping rates for your order can be found in the shopping cart. | ||
| Shipping Options | Shipping rates for your order can be found in the shopping cart. | ||
| Shipping Tracking | We will notify you by email with tracking number once order is shipped. You can track your order using the “Track My Order” feature. | ||
| Returning/Warranty | Returning | Returns are normally accepted when completed within 30 days from date of shipment, please contact customer service for a return authorization. Parts should be unused and in original packaging. Customer has to take charge for the shipping | |
| Warranty | All Elecbee purchases come with a 30-day money-back return policy, plus 1-year Elecbee warranty against any manufacturing defects. | ||
| This warranty shall not apply to any item where defects have been caused by improper customer assembly failure by customer to follow instructions, product modification, negligent or improper operation | |||
| Ordering | How to Buy | Elecbee accepts online orders. | |
| Add to cart > Check out > Submit order > Complete payment > Delivery | |||
| Payment | PayPal, Credit Card includes Visa, Master, American Express, Bank transfer. | ||
