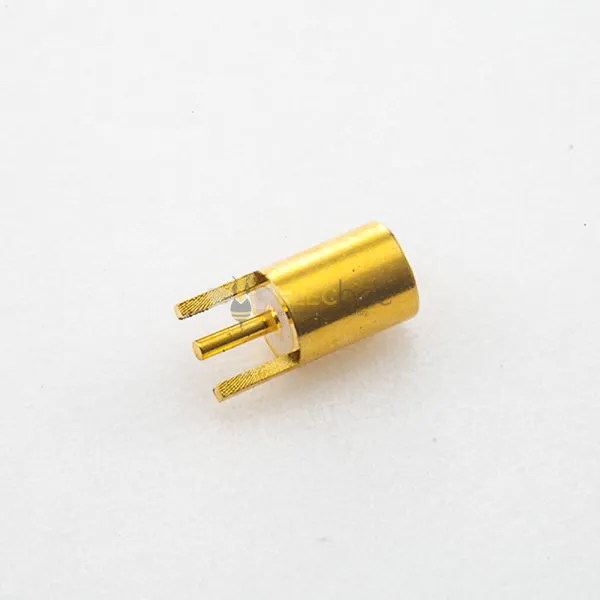

Elecbee MMCX Connector PCB Mount Female Straight Plate Edge Mount 50ohm

SKU: EB-211-0166

Favorites

Key Features

Features:

Pcb Mount, Jack/female, Straight/180°, 50Ω, Through Hole;
Micro-miniature version of MCX with all features of MCX series conenctor.;
Snap-on Interface ideal for quick Installation and discount;
High cost-effective with excellent boardband performance and low reflections.

Appliance:

Consumer Electronic: Smart phones GPS and wireless antennas,
Aerospace and Defense: GPS
Technology: Technology Devices
Telecommunications: GPS tracking, positioning and navigation devices, Wireless Base Station, Wireless-LAN, Wireless antennas
Data/Communications: Wireless-LAN, Wireless-PAN(bluetooth), Wireless-WAN
Industrial: Computer connections-LAN/WAN

Reviews

ELECBEE

All reviews come from verified purchasers

1 stars

2 stars

3 stars

20%

4 stars

5 stars

60%

L****i

Perfect for my GPS module build—small size and solid 50ohm impedance matching made routing easy. The gold-plated contacts look high quality and fit snugly.

S****u

Good MMCX connector for the price. Soldered cleanly onto the PCB edge, and the snap-on interface works smoothly with standard cables. No signal loss issues up to 5GHz.

S****c

Used in a wireless-LAN prototype—excellent broadband performance and low VSWR as advertised. Teflon insulator handles heat well during reflow.

O****h

Works fine but be careful with repeated mating cycles. After ~400 snaps, one unit loosened slightly. Still within spec, but barely.

P****L

Tiny, reliable, and cost-effective—ideal for compact RF designs. Used across multiple Bluetooth PAN boards with consistent results.
