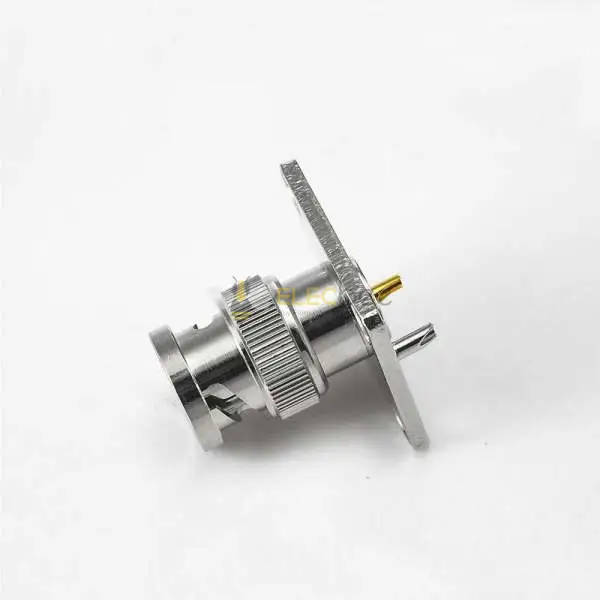

Elecbee Cable BNC Connector Male Straight Panel Mount 4 Hole Flange Solder Cup 75ohm
SKU: EB-001-0566
Favorites
Key Features
Product features:
- BNC Connector, Male, Straight, Cable/Panel Mount, Solder Cup, 4 Hole Flange, Solder，Cooper, Nickel Plating, Standard, 75Ω
- Compact Design for less installation space required;
- Easy quick connect and disconnect coupling;
- High Quality with 30 days 100% Money back;
- From the OEM Original Factory, same quality with much better price.
Applications:xa0Antennas, Cable Assembly, Automotive, Radios, Video, Broadcast, Telecom, Satcom, Monitors, Recorders, Switchers, Base Stations, Technology Equipment, Instrumentation, CCTV, CATV, HDTV, etc.
Show More
Specifications
Attribute
Value
Search
Connector Type
Male
Number of Ports
1
Mounting Type
Panel Mount
Mounting Feature
Four Flange
Termination
Solder
Contact Type
Male Pin
Shell Finish
Nickel Plated
Impendance
75 Ohms
Frequency Max
4 GHz
Connector Series
BNC
Color
Silver
Fastening Type
Bayonet
Orientation
Straight
Shell Material
Copper
Packing
Individual Packaging
Contact Material
Copper Alloy
Contact Finish
Gold Plated
Insulating Materials
PTFE
Cable Diameter
2.14mm
