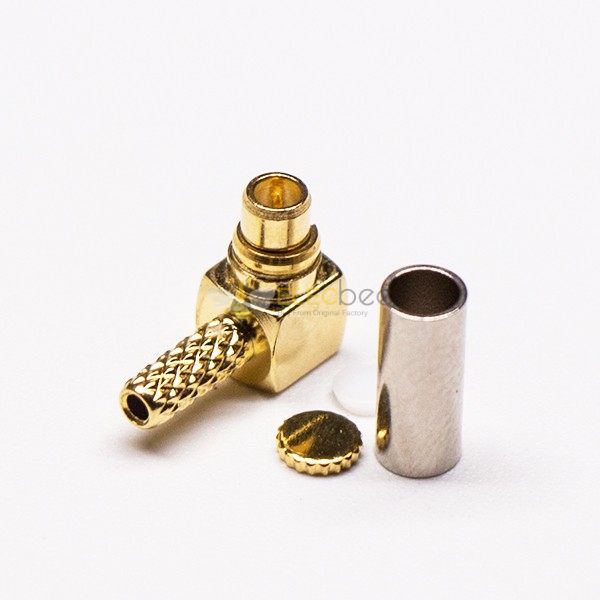

MMCX Connector Right Angle Plug Gold Plated Crimp Type

$2.00 Price drop reminder
  • Brand: Elecbee
  • Product Code: EB-005-0038
  • Availability: In Stock

- +
Total $2.00

Ask a Question About This Product

Your Name*
Your Email*
Topic*
Message
SUBMIT

Features:

  • MMCX Connector,Male/Plug,Right Angled/90°,Crimp Type,Gold Plated;
  • Micro-miniature version of MCX with all features of MCX series conenctor.;
  • Snap-on Interface ideal for quick Installation and discount;
  • High cost-effective with excellent boardband performance and low reflections.
  • High Quality with 30 days 100% Money back;
  • From the OEM Original Factory, same quality with much better price.

Main Application of MMCX Connectors:

Consumer Electronic: Smart phones GPS and wireless antennas,
Aerospace and Defense: GPS
Technology: Technology Devices
Telecommunications: GPS tracking, positioning and navigation devices, Wireless Base Station, Wireless-LAN, Wireless antennas
Data/Communications: Wireless-LAN, Wireless-PAN(bluetooth), Wireless-WAN
Industrial: Computer connections-LAN/WAN


Techinial Datasheet:

Electrical Characteristics

  • Impedance:50 ohm
  • Frequency Range: 0~6 Ghz
  • VSWR: Straight type ≦ 1.3max / R/A type ≦ 1.5max
  • Dielectric Withstanding Voltage: 500 V rms
  • Working Voltage: 170 V rms
  • Center Contact Resistance ≦ 5.0 mΩ  (Milliohms max.)
  • Outer Contact Resistance  1.0 mΩ  (Milliohms max.)
  • Insultation Resistance ≧ 1000 mΩ

Mechanical Characteristics

  • Coupling: Snap-on/Snap-off
  • Contact Retention: 2.3 lbs min.
  • Mating Durability: ≧500 cycles (For Beryllium Copper Contact)

Environmental Characteristics

  • Environmental Characteristics: Teflon -65°C ~ +155°C
  • Vibration: MIL-STD-202 Method204
  • Corrosion Resistance: MIL-STD-202 Method 101

Material:

Part Material Finish
Body Brass Gold
Center Contact Pin Brass Gold
Insulator PTFE White




connector factory

Ask Question About Product

Note: HTML is not translated!
Body Material
Body Material Cooper
Installation method
Installation methodCable
Terminal type
Terminal typeSolder Type
Installation characteristics
Installation characteristicsNone
Gender
GenderMale
Function
FunctionOther
direction
directionRight Angle
Polarity
PolarityStandard
Coating
CoatingGold Plating
Impedance
Impedance 50 Ω
Outer conductor connection
Outer conductor connectionCrimp
