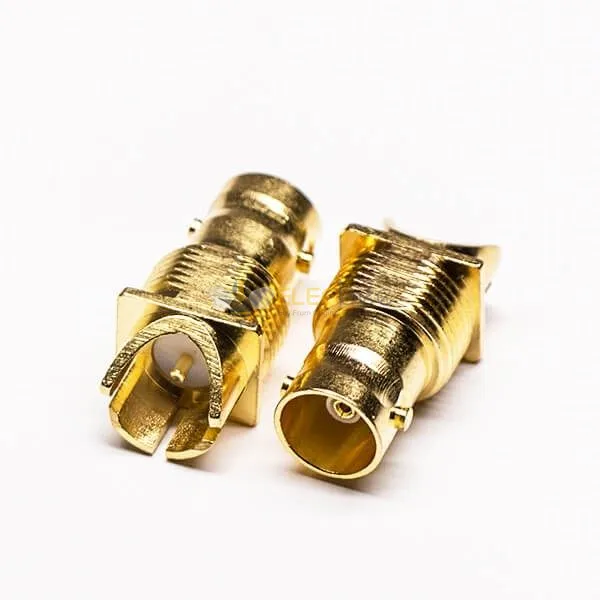

Elecbee Gold Plated BNC Connector 180 Degree Female Plate Edge Mount
SKU: EB-001-0113
Favorites
Key Features
Product features:
- BNC Connector, Jack/Female, Straight/180°,Gold Plated,Plate Edge Mount,PCB Mount
- Compact Design for less installation space required;
- Easy quick connect and disconnect coupling;
- High Quality with 30 days 100% Money back;
- From the OEM Original Factory, same quality with much better price.
Applications:xa0Antennas, Cable Assembly, Automotive, Radios, Video, Broadcast, Telecom, Satcom, Monitors, Recorders, Switchers, Base Stations, Technology Equipment, Instrumentation, CCTV, CATV, HDTV, etc.
Show More
Specifications
Attribute
Value
Search
Connector Type
Jack
Number of Ports
1
Mounting Type
Panel Mount
Mounting Feature
Edge Mount
Contact Type
Female Pin
Shell Finish
Gold Plated
Impendance
75 Ohms
Frequency Max
4 GHz
Connector Series
BNC
Color
Silver
Fastening Type
Bayonet
Orientation
Straight
Shell Material
Zinc Alloy
Packing
Individual Packaging
Contact Material
Copper Alloy
Contact Finish
Gold Plated
Insulating Materials
PTFE
Cable Diameter
2.14mm
Related Resources
Certificates
Shopping Guide
Shipping | Delivery Period | For in-stock parts, orders are estimated to ship out in 3 days. Elecbee ships orders once a day at about 5pm except Sunday. Once shipped, estimated delivery time depends on the below carriers you chose. DHL Express: 3-7 business days DHLeCommerce: 12-22 business days FedEx International Priority: 3-7 business days EMS: 10-15 business days Registered Air Mail: 15-30 business days | |
| Shipping Rates | Shipping rates for your order can be found in the shopping cart. | ||
| Shipping Options | Shipping rates for your order can be found in the shopping cart. | ||
| Shipping Tracking | We will notify you by email with tracking number once order is shipped. You can track your order using the “Track My Order” feature. | ||
| Returning/Warranty | Returning | Returns are normally accepted when completed within 30 days from date of shipment, please contact customer service for a return authorization. Parts should be unused and in original packaging. Customer has to take charge for the shipping | |
| Warranty | All Elecbee purchases come with a 30-day money-back return policy, plus 1-year Elecbee warranty against any manufacturing defects. | ||
| This warranty shall not apply to any item where defects have been caused by improper customer assembly failure by customer to follow instructions, product modification, negligent or improper operation | |||
| Ordering | How to Buy | Elecbee accepts online orders. | |
| Add to cart > Check out > Submit order > Complete payment > Delivery | |||
| Payment | PayPal, Credit Card includes Visa, Master, American Express, Bank transfer. | ||
Recommended For You
.jpg?x-oss-process=image/resize,w_600,h_600/quality,q_90/watermark,image_aW1hZ2UvcGFuZGEucG5n,P_50,t_40,g_center,x_0,y_0/format,webp)
Reviews
ELECBEE
All reviews come from verified purchasers
1 stars
0%
2 stars
0%
3 stars
20%
4 stars
20%
5 stars
60%
R****a
Perfect for my PCB radio project. The gold-plated contact ensures solid signal, and the 180° edge mount fits exactly on the board. Great quality for the price.
O****h
Good BNC connector with solid brass body and reliable nickel finish. Installation was easy thanks to the compact design. Only wish it had come in a multi-pack.
S****t
Used in a CCTV setup—signal integrity is excellent up to 1 GHz. Teflon insulator handles heat well. Definitely OEM-level quality as claimed.
d****z
Works fine for basic RF connections. The plate edge mount saves space, but the coupling nut feels slightly loose after repeated use.
K****r
Fast shipping and exactly as described. Gold plating prevents corrosion, and mating durability seems strong even after dozens of connects.
In-Stock:500
