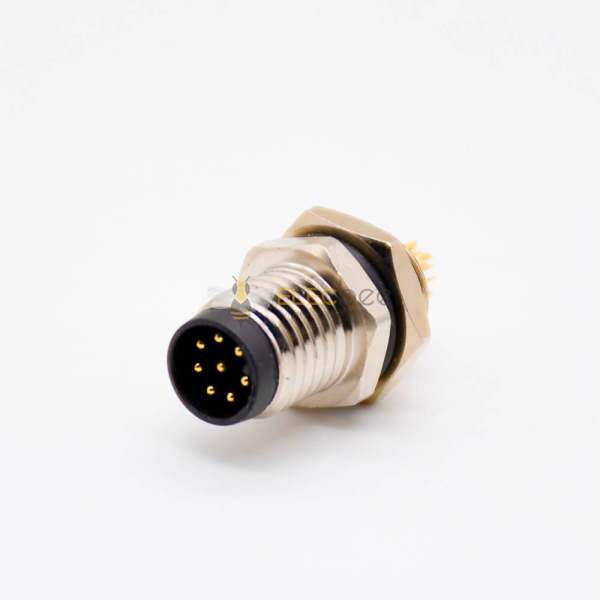

Elecbee sensor connector m8 A code 8pin male Straight panel mount connector Solder cup
SKU: EB-400-1218
Favorites
Key Features
Features:
- B code,8 pin,male,180°，panel mount,back mount,m8 connector
- thread locking mechanism, 8mm threaded joint;
- anti vibration locking design;
- High Quality with 30 days 100% Money back;
- From the OEM Original Factory, same quality with much better price.
Show More
Specifications
Attribute
Value
Search
Connector Type
Receptacle
Mounting Type
Panel Mount
Mounting Feature
Bulkhead - Rear Side Nut
Termination
Solder Cup
Contact Type
Male Pin
Shell Finish
Nickel Plated
Number of Positions
8 Pin
Operating Temperature
-20℃~+85℃
Shielding
Unshielded
Ingress Protection
IP67(mated）
Rated Current
1.5A
Rated Voltage
30V
Connector Series
M8
Color
Silver
Fastening Type
Threaded
Orientation
Straight
Shell Material
Copper Alloy
Contact Material
Copper Alloy
Contact Finish
Gold Plated
Insulating Materials
PA66 + GF
Insulation Color
Black
Key
A Code
Wire Gauge
26AWG
Description
M8 Panel Receptacles
IP67/68 Weatherproof
|
Plug & Play Connections
|
Rugged Metal Housing
M8 Panel Receptacle series provides three kinds of mount choice: PCB Mount, Panel Mount & Cable, and have three features of mount: Front Mount, Back Mount, 4 Hole Flange. According to IEC 61076-2-101/104 standard, complying with IP67 protection level.
DIRECT DEAL
EASY ASSEMBLY
QUALITY ASSURANCE
MULTI CORE OPTIONAL
| M8 Panel Receptacles | |
| Coding | A / B |
| Number of Positions | 3 / 4 / 5 / 6 / 8 |
| Gender | Male / Female |
| Orientation | Straight / Right Angle |
| Mounting Type | PCB Mount / Panel Mount / Cable |
| Termination Style | Solder Type / PCB Mount |
| Mounting Feature | Front Mount / Back Mount |
PRODUCT DESCRIPTION
1. Choose High-quality Materials
- All metal material brass material, can play a 360-degree shielding effect
- Strong conductivity,wear resistance,oxidation resistance,in line width protection standards
3. Snap Tight and Waterproof
- Strong fixing performance,with waterproofring
- Protection against water and resistance
2. Long Service Life
- The push-pull self-locking device is easy to install
- The interface is durable and not deformed
- Durable and corrosion-resistant
- Waterproof and moisture-proof
APPLICATION
Packaging, Labeling & Logistic
Factory automation and fieldbus module
Related Resources
Certificates
Shopping Guide
Shipping | Delivery Period | For in-stock parts, orders are estimated to ship out in 3 days. Elecbee ships orders once a day at about 5pm except Sunday. Once shipped, estimated delivery time depends on the below carriers you chose. DHL Express: 3-7 business days DHLeCommerce: 12-22 business days FedEx International Priority: 3-7 business days EMS: 10-15 business days Registered Air Mail: 15-30 business days | |
| Shipping Rates | Shipping rates for your order can be found in the shopping cart. | ||
| Shipping Options | Shipping rates for your order can be found in the shopping cart. | ||
| Shipping Tracking | We will notify you by email with tracking number once order is shipped. You can track your order using the “Track My Order” feature. | ||
| Returning/Warranty | Returning | Returns are normally accepted when completed within 30 days from date of shipment, please contact customer service for a return authorization. Parts should be unused and in original packaging. Customer has to take charge for the shipping | |
| Warranty | All Elecbee purchases come with a 30-day money-back return policy, plus 1-year Elecbee warranty against any manufacturing defects. | ||
| This warranty shall not apply to any item where defects have been caused by improper customer assembly failure by customer to follow instructions, product modification, negligent or improper operation | |||
| Ordering | How to Buy | Elecbee accepts online orders. | |
| Add to cart > Check out > Submit order > Complete payment > Delivery | |||
| Payment | PayPal, Credit Card includes Visa, Master, American Express, Bank transfer. | ||
