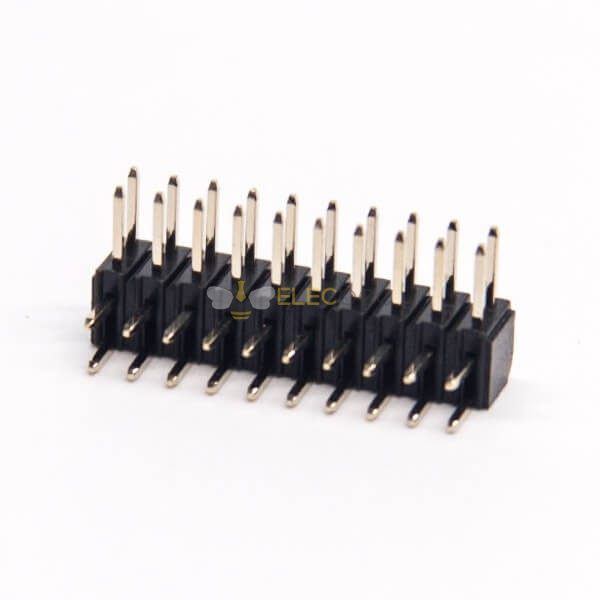

Elecbee 10pcs 2.0mm Pin Header Right Angle 20 Pin Double Row Through Hole for PCB Mount

SKU: 10XEB-609-0120

Favorites

Key Features

Features:

Pin Header Connector,Male/Plug,Right Angled/90°,20Pin,2.0mm,Dual Row,Through Hole,PCB Mount,Solder Type,Gold Plating，Black,Square
Normally associated with ribbon cable connectors, or worked as recipients for jumpers
consists of one or more rows of male pins typically spaced 2.54 millimetres (0.1 in) apart, 5.08 millimetres (0.2 in), 5.00 millimetres (0.197 in), 3.96 millimetres (0.156 in), 2.00 millimetres (0.079 in), 1.27 millimetres (0.05 in) and 1.00 millimetre (0.04 in);
High Quality with 30 days 100% Money back;
From the OEM Original Factory, same quality with much better price.

Main Application

Electronic device
Home appliances
Electrical instruments
Automotive: Car navigation LCD panel and so on.
Lighting industry
The above applications are typical but not limited, these products are widely use in many fields
