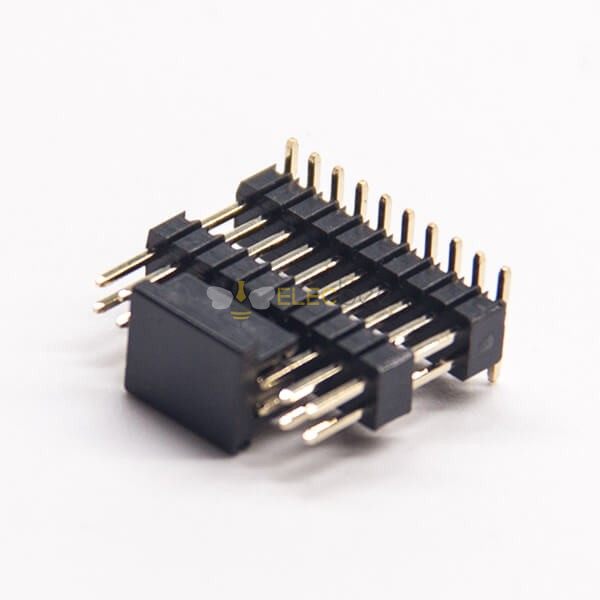

Elecbee 10pcs SMT Hrader Connector Vertical 20 Way Dual Row Double Plastic

SKU: 10XEB-609-0115

Favorites

Key Features

Features:

Pin Header Connector,Male/Plug, Straight/180°,20Pin,1.27mm,Double Row,SMT Type,PCB Mount,Solder Type,Gold Plating，Black,Square
Normally associated with ribbon cable connectors, or worked as recipients for jumpers
consists of one or more rows of male pins typically spaced 2.54 millimetres (0.1 in) apart, 5.08 millimetres (0.2 in), 5.00 millimetres (0.197 in), 3.96 millimetres (0.156 in), 2.00 millimetres (0.079 in), 1.27 millimetres (0.05 in) and 1.00 millimetre (0.04 in);
High Quality with 30 days 100% Money back;
From the OEM Original Factory, same quality with much better price.

Main Applicationxa0

Electronic device
Home appliances
Electrical instruments
Automotive: Car navigation LCD panel and so on.
Lighting industry
The above applications are typical but not limited, these products are widely use in many fields

Reviews

ELECBEE

All reviews come from verified purchasers

1 stars

2 stars

3 stars

17%

4 stars

5 stars

67%

T****b

I was surprised when I received the product. The quality is very good and the appearance gives people a comfortable feeling.

S****c

Perfect fit for my automotive LCD panel repair. The gold plating ensures solid contact, and the 1.27mm pitch was exactly what I needed for SMT assembly.

R****r

Good quality pin header. Used in a home appliance control board. Withstands reflow soldering well and the dual row setup saves PCB space.

A****L

Exactly as described – durable, precise, and ideal for ribbon cable connections. Great value from the original factory at half the price of branded versions.

N****t

Works fine for low-voltage applications. I used it in a lighting project. Insertion force is smooth, but be careful with manual soldering to avoid misalignment.

G****e

Reliable connector with solid build. The PA6T insulation handles heat well during reflow. Will definitely reorder when needed.
