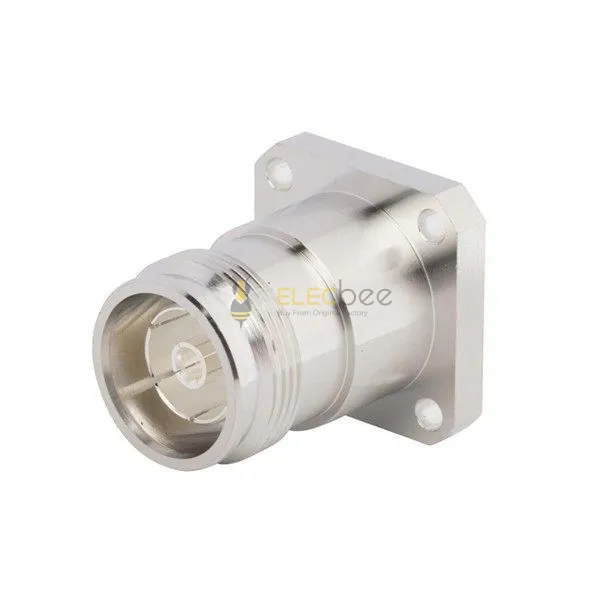

4.3/10 Connector Straight Jack waterproof 4-Hole Flange Through Hole for PCB Mount

$5.48 Price drop reminder
  • Brand: Elecbee
  • Product Code: EB-015-0004
  • Availability: In Stock
  • Sales: 13

- +
Total $5.48
Buy Now

Ask a Question About This Product

Your Name*
Your Email*

product features.png


  • RF Connector, 4.3-10 Straight Jack, Low PIM, 4-Hole Flange Receptacle, M3 Thread, 50 Ohm
  • IP-67 compliant;
  • Ideal for applications requiring low PIM and low attenuation;
  • High Quality with 30 days 100% Money back;
  • From the OEM Original Factory, same quality with much better price.


  • Distributed Antenna Systems (DAS)
  • Base Stations
  • Wireless Infrastructure


Electrical Characteristics

  • Impedance:50 Ω
  • Frequency:DC to 6 GHz
  • VSWR:DC to 4 GHz 0.015 max. (RL ≥ 36 dB)
  • 4 to 6 GHz 0.025 max. (RL ≥ 32 dB)
  • Center and outer contact resistance:≤ 1.0 mΩ
  • Insulation resistance :≥ 5 GΩ
  • Proof voltage at sea level:2500 V

mechanical Characteristics

  • Mating cycles >100
  • Engagement force typ. 100 N
  • Separation force typ. 80 N

Environmental Characteristics

  • Operating Temperature:−55 to +90 °C


Part Material Finish
Body  Brass  Bronze
Center Contact Pin Beryllium Copper     Gold
Insulator PTFE




Where is your products origin? Are they certificated?

Elecbee have long-term cooperation agreements with many OEM factory in China to reduce the intermediate channel cost and help you save money. Our products all made strictly according to the relative global standard, to ensure the products have good compatibility and excellent quality.


What forms of payment do you accept?

Our main payment method include Paypal, Credit Card, Bank Transfer and so on. You could choose anyone at your convenience


When will you arrange shipment?

After confirming receipt of your payment, we will arrange the shipment as soon as possible and upload the courier number to the website for your easy tracking.

Under normal circumstances, the product will be sent out within 48 hours, if the package cannot be send out timely due to special circumstanceswe will contact you in advance and inform the specific reasons.


How to exchange or return?

1. You can apply to return within 30 days after receipt of the goods. Please make sure the outside package is intact, and products is in original condition. We will arrange your refund according to the relevant provisions once package received.

2. Return process: You Apply for Return - Approve Return You Arrange Return - Receive Products and make Inspection - We arrange Refund;

3. We will bear the freight charges for returns caused by us, for instance the quality problem; As to returns caused by the client, customer should be responsible for the shipping fee;

Ask Question About Product

Note: HTML is not translated!
Body Material Cooper
Installation methodPanel Mount / Cable
Terminal typeSolder Type
Installation characteristics4 Hole Flange/Solder Type
Impedance 50 Ω
Outer conductor connectionSolder
