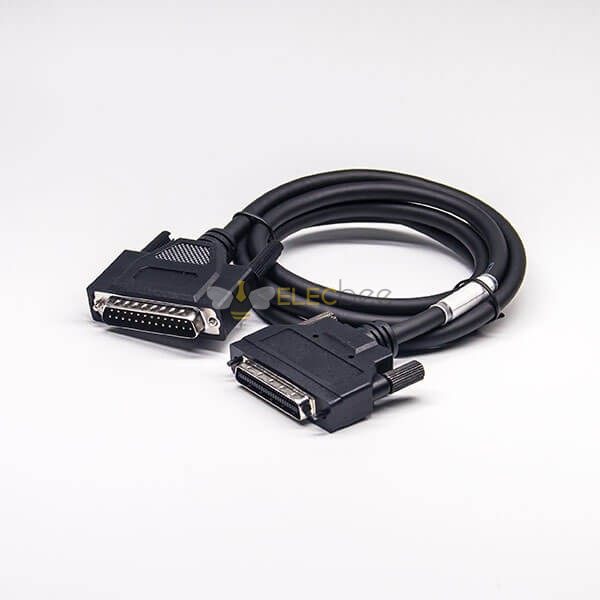

SCSI Connector 36 Pin HPCN Male to HPDB 25 Pin Male Screw Lock Over-molded Cable 2M

$28.39 Price drop reminder
  • Brand: Elecbee
  • Product Code: EB-109-0026
  • Availability: In Stock

- +
Total $28.39

Ask a Question About This Product

Your Name*
Your Email*
Topic*
Message
SUBMIT

product features.png

Features:

  • HPCN,Male,Straight,36 Pin,HPDB,Male,Straight,25 Pin,2M
  • Industry standard interfacing RS232 and RS449 mating configurations per EIA standards;
  • Inserts are flame-retardant thermoplastic;
  • High Quality with 30 days 100% Money back;
  • From the OEM Original Factory, same quality with much better price.

Appliance:

  • Business equipment
  • Electronic office systems
  • Data communications
  • Technology equipment
  • Mobile communications
  • Consumer electronics


Electrical Characteristics

  • Rated Current:1Amp
  • Contact resisting:15mΩ Max
  • Insulator resisting:1000mΩ Min @DC 500V
  • Operating Temperature:-40°C to +105°C

Mechanical Characteristics

  • Single Contact Insertion Force 1.19 lb. (0.54 kg.) max.
  • Single Contact Withdrawal Force 0.13 lb. (0.06 kg.) min.

Environmental Characteristics

  • Operating Temperature:-40°C to +105°C

Material:

Part Material Finish
Body Steel Zinc Alloy
Center Contact Pin Phosphor Bronze/Brass/Copper Alloy Gold
Insulator PBT,Glass-filled,UL 94 V-0
------



connector factory


Where is your products origin? Are they certificated?

Elecbee have long-term cooperation agreements with many OEM factory in China to reduce the intermediate channel cost and help you save money. Our products all made strictly according to the relative global standard, to ensure the products have good compatibility and excellent quality.



What forms of payment do you accept?

Our main payment method include Paypal, Credit Card, Bank Transfer and so on. You could choose anyone at your convenience



When will you arrange shipment?

After confirming receipt of your payment, we will arrange the shipment as soon as possible and upload the courier number to the website for your easy tracking.

Under normal circumstances, the product will be sent out within 48 hours, if the package cannot be send out timely due to special circumstanceswe will contact you in advance and inform the specific reasons.



How to exchange or return?

1. You can apply to return within 30 days after receipt of the goods. Please make sure the outside package is intact, and products is in original condition. We will arrange your refund according to the relevant provisions once package received.

2. Return process: You Apply for Return - Approve Return You Arrange Return - Receive Products and make Inspection - We arrange Refund;

3. We will bear the freight charges for returns caused by us, for instance the quality problem; As to returns caused by the client, customer should be responsible for the shipping fee;

Ask Question About Product

Note: HTML is not translated!
Connector A Type
Connector A TypeHPCN
Connector A Gender
Connector A GenderMale
Connector A Direction
Connector A Direction Straight
Connector B Type
Connector B TypeHPDB
Connector B Gender
Connector B GenderMale
Connector B Direction
Connector B Direction Straight
Connector A Pin Count
Connector A Pin Count36 Pin
Connector B pin count
Connector B pin count25pin
Wire length
Wire length2m
