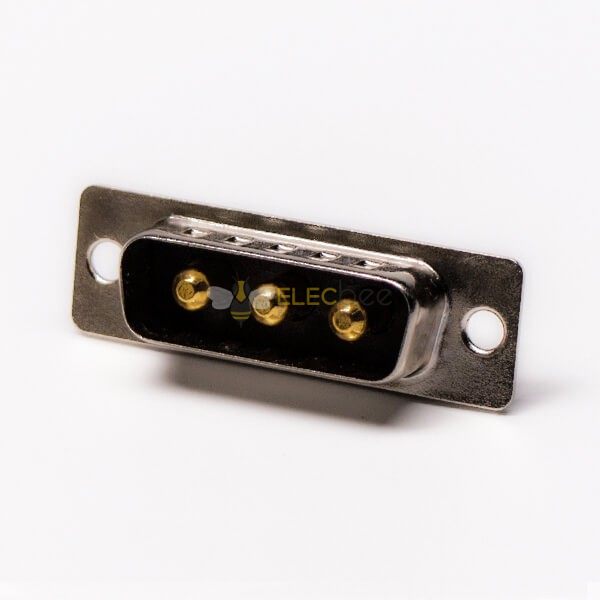

D-SUB 3W3 Male Connector Straight Through Hole for PCB Mount

D-SUB 3W3 Male Connector Straight Through Hole for PCB Mount

Name: D-SUB 3W3 Male Connector Straight Through Hole for PCB Mount
Brand: Elecbee
SKU: EB-604-0016
Price: 2.94 USD
Availability: InStock

$2.94

SKU: EB-604-0016

Copy to clipboard

80 Sales

0 reviews

In Stock Availability

Orders under $800 , tax included.（U.S. only)

Bulk Purchase, Auto Savings:

$2.79

10-19 PCS

$2.65

20-99 PCS

$2.35

100+ PCS

Deliver to United States

Flat Shipping Rate $10.00

- +

Contact Sales

D-SUB 3W3 Male Connector Straight Through Hole for PCB Mount

EB-604-0016

Your Name*
Your Email*
Topic*
Qty
Message	Message
SUBMIT

Pay with Ease

Trusted Delivery

Mobile

Specification

Product Attribute

Attribute Value

Search
Installation method

PCB Mount
direction

Straight
Connector Type

Plug
Continuous plating

machined pin
filter

No
Number of Positions

3W3
Port number

Single
Installation characteristics

Shell (Unthreaded)
waterproof level

Not Waterproof
Continuous plating

Gold
Number of Rows

1
Terminal type

Through Hole

Description

Electrical Characteristics

Current Rating: Signal & Power Contacts 300 VRMS at 50 Hz
Frequency range: 0 -1 GHz
VSWR: 1.4 (+0.04/GHz)
Characteristic Impedance:50 Ohms
Dielectric Withstanding Voltage ≥ 1000V R.M.S. at 50Hz
Insulation Resistance ≥ 5000 megaohms at 500 V D.C.
Contact Resistance ≤5 milliohms

Mechanical Characteristics

Mechanical operations ：up to 500

Environmental Characteristics

Operating Temperature：67°F (-55°C) to 311°F (+155°C)
with peaks up to 356°F (180°C)

Material:

Part	Material	Finish
Body	Steel with tin	-------
Center Contact Pin	Female：bronze Male：brass	Gold
Insulator	High temperature black thermoplastic	------
