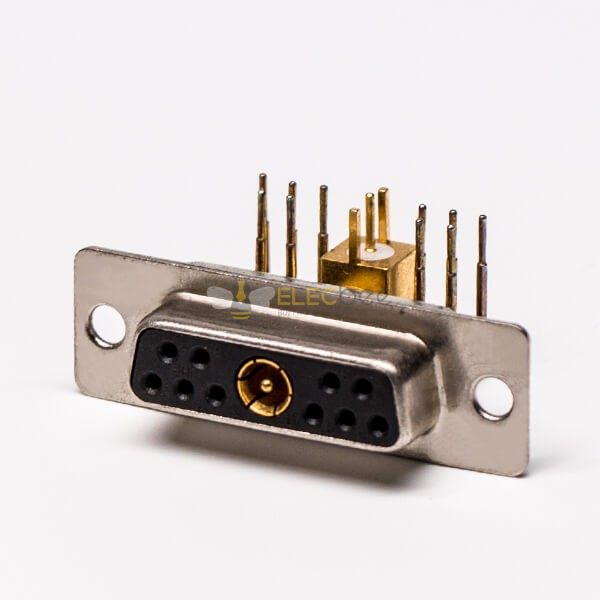

Elecbee D SUB Coaxial Connector 11W1 Right Angled Solder Type Receptacle For PCB Mount
SKU: EB-604-0013
Favorites
Key Features
Features:
- Combo D-sub,Right Angled/90°,Female/Jack,Power D-sub,11W1,Through Hole,PCB Mount,Solder Type;
- Space saving,Cost-effective;
- Large variety of mounting options,RoHS Compliant;
- High Quality with 30 days 100% Money back;
- From the OEM Original Factory, same quality with much better price.
Applications:
- medical electronics
- wireless outdoor telecom systems
- industrial automation
- oil exploration
- printers and displays
- diagnostic systems
Show More
Specifications
Attribute
Value
Search
Connector Style
Combo D-sub
Contact Function
Coax, Signal
Number of Rows
2
Number of Ports
1
Mounting Type
Panel Mount
Mounting Feature
Shell with Open Hole
Termination
Solder
Contact Type
Female Pin
Number of Positions
11 Pin
Contact Finish
Gold Plated
Insulation Color
Black
Contact Processing Technic
Machined
