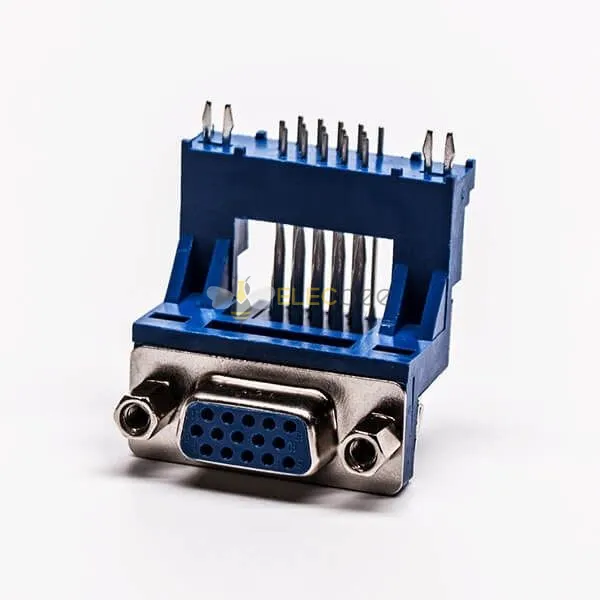

Elecbee D sub Staking Blue Female Degree Elevated Though Hole for PCB Mount
SKU: EB-602-0014
Favorites
Key Features
Features:
- D-sub Connector,High density,Right Angled/90°,15 Pin,Blue,Female/Jack,elevated,staking type
- Metal shell provides EMI/RFI shielding;
- High density design maximizes board space;
- High Quality with 30 days 100% Money back;
- From the OEM Original Factory, same quality with much better price.
Applications:
- data transmission
- Consumer Electronics
- telecommunications
- measurement
- regulation and control devices
- Military Equipment
Show More
Specifications
Attribute
Value
Search
Connector Style
D-Sub
Contact Function
Signal
Number of Rows
3
Number of Ports
1
Mounting Type
Panel Mount
Mounting Feature
Front Open Screwlock (4-40)
Termination
Angled DIP
Contact Type
Female Pin
Number of Positions
15 Pin
Contact Finish
Tin Plated
Insulation Color
Blue
Contact Processing Technic
Stamped
