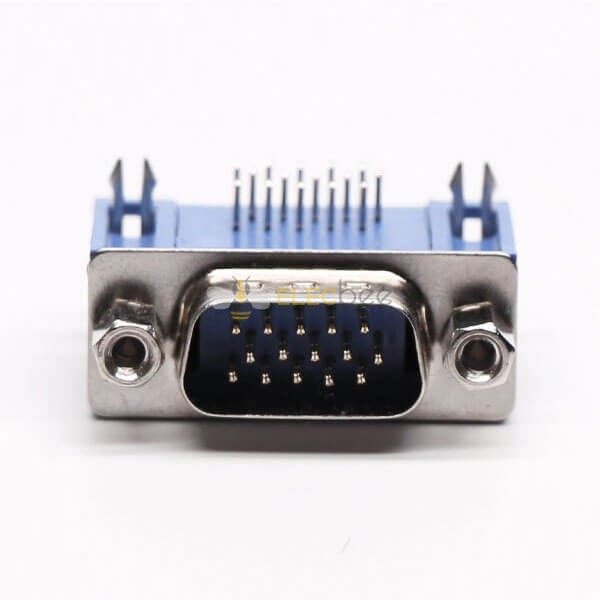

Elecbee D-sub Male Connector Right Angled 15 Pin staking type 20pcs
SKU: 20XEB-602-0006
Favorites
Key Features
Features:
- D-sub Connector,High density,Right Angled/90°,Male/Plug,15 Pin,staking type,Though Hole
- Metal shell provides EMI/RFI shielding;
- High density design maximizes board space;
- High Quality with 30 days 100% Money back;
- From the OEM Original Factory, same quality with much better price.
Applications:
- data transmission
- Consumer Electronics
- telecommunications
- measurement
- regulation and control devices
- Military Equipment
Show More
Specifications
Attribute
Value
Search
Connector Style
D-Sub
Contact Function
Signal
Number of Rows
3
Number of Ports
1
Mounting Type
Panel Mount
Mounting Feature
Front Open Screwlock (4-40)
Termination
Angled DIP
Contact Type
Male Pin
Number of Positions
15 Pin
Contact Finish
Tin Plated
Insulation Color
Blue
Contact Processing Technic
Stamped
Shopping Guide
Shipping | Delivery Period | For in-stock parts, orders are estimated to ship out in 3 days. Elecbee ships orders once a day at about 5pm except Sunday. Once shipped, estimated delivery time depends on the below carriers you chose. DHL Express: 3-7 business days DHLeCommerce: 12-22 business days FedEx International Priority: 3-7 business days EMS: 10-15 business days Registered Air Mail: 15-30 business days | |
| Shipping Rates | Shipping rates for your order can be found in the shopping cart. | ||
| Shipping Options | Shipping rates for your order can be found in the shopping cart. | ||
| Shipping Tracking | We will notify you by email with tracking number once order is shipped. You can track your order using the “Track My Order” feature. | ||
| Returning/Warranty | Returning | Returns are normally accepted when completed within 30 days from date of shipment, please contact customer service for a return authorization. Parts should be unused and in original packaging. Customer has to take charge for the shipping | |
| Warranty | All Elecbee purchases come with a 30-day money-back return policy, plus 1-year Elecbee warranty against any manufacturing defects. | ||
| This warranty shall not apply to any item where defects have been caused by improper customer assembly failure by customer to follow instructions, product modification, negligent or improper operation | |||
| Ordering | How to Buy | Elecbee accepts online orders. | |
| Add to cart > Check out > Submit order > Complete payment > Delivery | |||
| Payment | PayPal, Credit Card includes Visa, Master, American Express, Bank transfer. | ||
Recommended For You
Reviews
ELECBEE
All reviews come from verified purchasers
1 stars
0%
2 stars
0%
3 stars
20%
4 stars
20%
5 stars
60%
M****n
Perfect right-angled D-sub connectors for tight spaces. The tin-plated steel shell provides great EMI shielding, and the 15-pin high-density layout saves board space. Exactly as described and well-priced for OEM quality.
M****z
Good solid build with copper alloy pins and glass-filled thermoplastic insulator. Soldered cleanly onto my PCB. Only wish the mating cycle life was higher than 50, but fine for prototyping.
C****e
Used in a telecom test rig—these handled 60V and 3A signals without issue. The 1000V dielectric strength gives me confidence in isolation. Great value for military-grade temp range.
K****r
Works well for data transmission needs. Right-angle design helped with cable routing. Packaging could be better—some units were slightly bent during shipping.
N****r
Exactly what I needed for a compact control device. High-density 15-pin layout fits perfectly. Tin finish resists corrosion. Will buy again.
