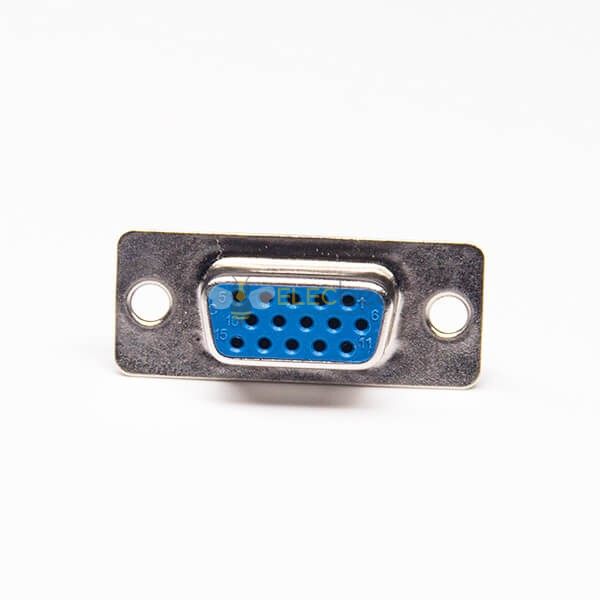

Elecbee D-sub 15-pin Female 3 Row Connector HD15 Female Chassis Mount 20pcs
SKU: 20XEB-602-0049
Favorites
Key Features
Features:
- High Density D-Sub,Receptacle,15 Pin,3 Rows,Single Port,Straight Type,Stamped Pin,Tin plated,Solder Cup,Cable,Unthreaded,IP20,Without Filtered.
- Metal shell provides EMI/RFI shielding;
- High density design maximizes board space;
- High Quality with 30 days 100% Money back;
- From the OEM Original Factory, same quality with much better price.
Applications:
- data transmission
- Consumer Electronics
- telecommunications
- measurement
- regulation and control devices
- Military Equipment
Show More
Specifications
Attribute
Value
Search
Connector Style
D-Sub
Contact Function
Signal
Number of Rows
3
Number of Ports
1
Mounting Type
Cable Type
Mounting Feature
Shell with Open Hole
Termination
Solder
Contact Type
Female Pin
Number of Positions
15 Pin
Contact Finish
Tin Plated
Insulation Color
Blue
Contact Processing Technic
Stamped
