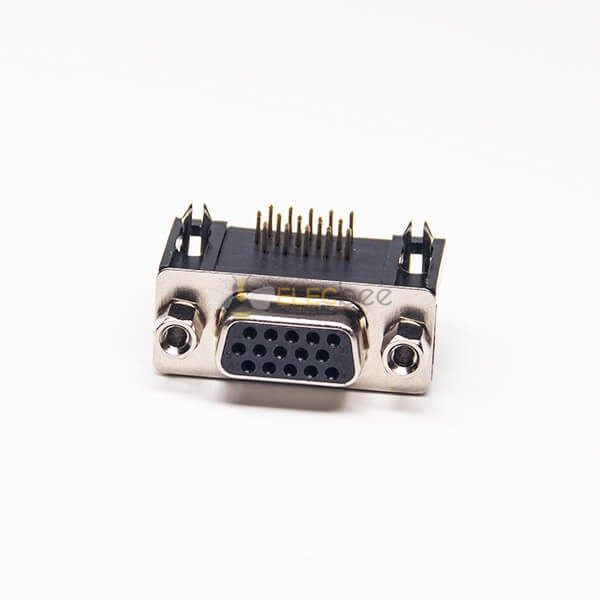

Elecbee 15 Pin hd d sub connector female FOR PCB connector right angled 20pcs
SKU: 20XEB-602-0051
Favorites
Key Features
Features:
- High Density D-Sub,Receptacle,15Pin,3 Rows,Single Port,Right Angle Type,Stamped Pin,Tin plated,Through Hole,Panel Mount,Front Open Screwlock(4-40),IP20,Without Filtered.
- Metal shell provides EMI/RFI shielding;
- High density design maximizes board space;
- High Quality with 30 days 100% Money back;
- From the OEM Original Factory, same quality with much better price.
Applications:
- data transmission
- Consumer Electronics
- telecommunications
- measurement
- regulation and control devices
- Military Equipment
Show More
Specifications
Attribute
Value
Search
Connector Style
D-Sub
Contact Function
Signal
Number of Rows
3
Number of Ports
1
Mounting Type
Panel Mount
Mounting Feature
Front Open Screwlock (4-40)
Termination
Angled DIP
Contact Type
Female Pin
Number of Positions
15 Pin
Contact Finish
Tin Plated
Insulation Color
Black
Contact Processing Technic
Stamped
