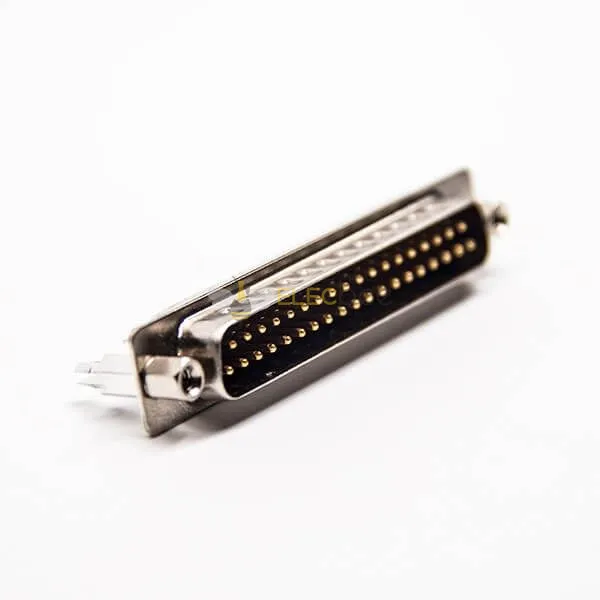

Elecbee 20pcs D-SUB 37-Pin Male Connector, PCB Through-Hole Mount, 180° Straight Staking Type, EIA Standard RS232/RS449 Interface Plug
SKU: 20XEB-600-0027
Favorites
Key Features
- High-Density Connectivity: Standard 37-Pin (DB37) male interface designed for high-density serial and parallel signal transmission in industrial controls.
- PCB Staking Design: Features a 180° straight "Staking Type" through-hole mount for superior mechanical stability and secure soldering on printed circuit boards.
- EIA Industry Standards: Fully compliant with industry-standard RS232 and RS449 mating configurations per EIA standards for universal hardware compatibility.
- Fire-Resistant Construction: Built with flame-retardant thermoplastic inserts (UL94V-0 rated) to ensure safety and reliability in high-heat environments.
- Bulk Manufacturing Pack: Includes 20 high-quality connectors, providing a cost-effective solution for small-to-medium scale PCB production and equipment repairs.
Show More
Specifications
Attribute
Value
Search
Connector Style
D-Sub
Contact Function
Signal
Number of Rows
2
Number of Ports
1
Mounting Type
Panel Mount
Mounting Feature
Front Close Screwlock (4-40)
Termination
Straight DIP
Contact Type
Male Pin
Number of Positions
37 Pin
Contact Finish
Gold Plated
Insulation Color
Black
Contact Processing Technic
Machined
Description
Ensure reliable, high-density signal routing with the Elecbee 37-Pin D-SUB Male PCB Connector. Engineered for high-performance data acquisition and industrial communication, this DB37 Plug is the professional choice for RS232 and RS449 interfacing. The straight 180-degree design combined with the staking-type mounting pins ensures that the connector remains physically secure on your PCB during repeated mating cycles.
This connector is built to withstand the rigors of industrial hardware. It features flame-retardant thermoplastic insulation and precision-machined pins that meet EIA global standards. Technical highlights include:
- Connector Type: D-SUB 37-Pin (Male / Plug).
- Mounting Style: Through-Hole (THT) Straight / 180°.
- Durability: Staking Type pins for enhanced mechanical bond to the PCB.
- Safety: UL-rated flame-retardant inserts for critical electronic assemblies.
- Standard Compliance: Mates with all standard DB37 female cables and chassis mounts.
Whether you are designing custom telecommunications hardware, PLC expansion modules, or high-channel-count sensor interfaces, the Elecbee DB37 Connector delivers the signal integrity and physical robustness required for 24/7 industrial operation. This 20-piece bulk pack is perfect for engineering labs, repair shops, and assembly lines looking for high-quality, standard-compliant components.
