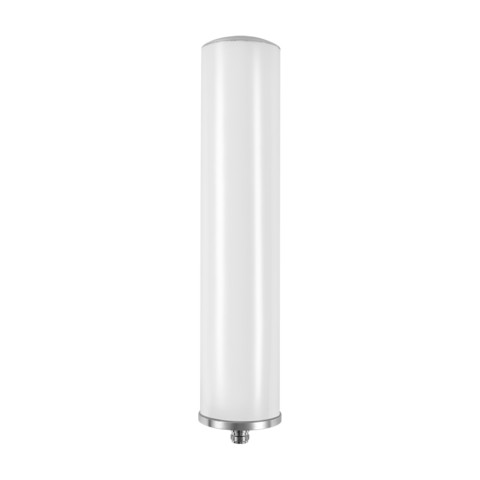

Elecbee 3G 4G 5G (617-2700 MHz) Outdoor Omni-Directional Antenna (50 Ohm)

Ultra-Wideband Outdoor Multi-Directional Omni Antenna.

5G antenna designed for maximum flexibility with multiple carriers and cell towers in most environments. Consider 4G omni antenna version for almost half the price. This 5G SureCall Omni Antenna is an omni-directional fiberglass outdoor antenna. It operates in a 360° field of propagation with a range of up to 30 miles. This Ultra-Wideband outdoor antenna transmits and receives signals in all directions.

It is designed to cover 2G/3G/4G/5G and WLAN systems for Cellular, PCS, AWS and LTE frequencies. 1.5 / 2 / 4 dBi Max Gain. N-Female connector. 50 Ohm. Ultra-Wideband: 617 - 2700 MHz. 5G Band 71 compatible that includes T-Mobile 5G Sub-6 Frequency. Wall mount or pole mount. Includes mounting hardware. Part Number: SC588W. UPC: 854328008435.

• Ultra-wideband: 2G, 3G, 4G, 5G (617 - 2700 MHz) outdoor omni-directional antenna.
• 1.5 / 2 / 4  dBi Max Gain.
• N-Female connector (50 ohm).
• Includes mounting hardware.
• Connects with SC-400 cable (sold separately).
• Mount upright using included mounting hardware.
• Easy to Install.

Installation.

This omni antenna is omni-directional, which receives and sends signals in a 360 degrees radius. The provided hardware allows for either a surface mount or pole-mount. This 5G antenna should be mounted in an upright position.

Option A - Mounting antenna to a vertical surface:

1. Using vertical plate of bracket, mark position of desired placement.
2. Unscrew nut on end of stucco screw and remove it along with lock washer and regular washer.
3. Place vertical plate into desired location and tap the screws, head-first, along with the sleeve into stucco with depth of 1/2 inches to 5/8 inches.
4. In this order, place washer, lock washer, and nut on each screw and tighten until secure. When tightening screw, sleeve will expand to secure plate.
5. Use provided screws to secure antenna base onto horizontal plate.
6. Connect antenna to cable connector for the outdoor cable provided with your kit and run along route to planned location of your booster.

Note: If desired surface for installation is wood or concrete, wood or masonry screws for L-plate mounting will have to be purchased separately.

Option B: Mounting antenna to Mast / Pole - For illustration of this option, please see 5G Ultra Wide Band Outdoor Omni Antenna Data Sheet.

Compatibility,

Phone Booster Compatibility: All brands 50 Ohm cell boosters kits including SureCall 2G-5G home and industrial in-building signal boosters. Cable Compatibility: Low coax cables with N Male on either end (SC400, SC240, etc). Accessory Compatibility: All 2G-5G cable couplers and 2G-5G cable splitters.

5G Omni Outdoor Antenna Specs.:
