Elecbee Wilson Electronics' weBoost 4G NMO Antenna Only

SKU: EB-201-2400

Favorites

Key Features

Description

Product Description

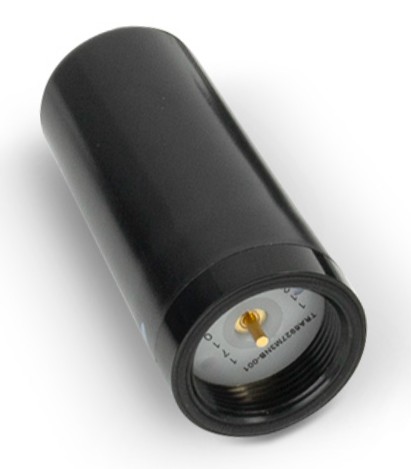

4G NMO Antenna Only | weBoost 314405 by Wilson Electronics / WilsonPro.

Wilson Electronics' weBoost 4G NMO Antenna Only. 3G and 4G LTE drilled-mount antenna for cars, trucks, RVs, boats works on any vehicle. It does not require roof that attracts magnets. Therefore, it works on non-magnetic roofs - No metal ground plane required. Purchase includes 4G NMO mount antenna without cable.

This is the same antenna used in the Drive Fleet Kit (470221). As a standalone, it can be used with the Drive 4G-M (470108, now 470121), Drive 4G-X (470510), Drive X (475021), as well as in M2M applications. This antenna requires an NMO mount which is not included. It can also be used with any other third party NMO mount. Main features of this antenna are increased gain over all earlier weBoost / Wilson Electronics exterior vehicle antennas, fixed tamper resistant mounting, and reduced cable clutter.

This is a 3.3 inches tall high-gain omni-directional 4G NMO cellular Antenna. It installs on NMO antenna mount. Covers 698-960 and 1710-2700 MHz cellular frequencies (see specifications in data sheet provided below).

Works on all worldwide cellular bands for voice and 4G data: LTE/ CDMA/ GSM/ UMTS/ AWS.
High gain omni-directional antenna.
Boost 698 to 960 & 1710 to 2700 MHz cellular frequencies.
Boosts voice & data.
Ideal for M2M installations.
Installs on any NMO antenna mount.
Works on both indoor/outdoor applications.
Perfect for car, truck, RV installation.
Connects to cell phone signal boosters and modems.

NMO stands for new Motorola. NMO mounts are frequently used when installing mobile antennas. Whether you are installing an antenna on a car, truck, RV, boat, or a fixed structure - this NMO mount with Multi-Band Omni-Directional antenna may be a great solution. The NMO antenna roof mount for cell phone antennas operates between 698 to 960 and 1710 to 2700 MHz.

It connects to all cellular modems and 50 Ohm signal boosters made by SureCall, Wilson Electronics, weBoost, HiBoost, etc. Works for all major cellular carriers in USA and Canada.

NMO Mounted Antenna Details.

NMO antennas can be drilled on to roof of a vehicle or its trunk. Operating concurrently between the 698-960 MHz and the 1710-2700 MHz, this omnidirectional antenna is outstanding in case you're interested in 3G and 4G LTE networks in areas where metallic tops and surface planes are absent. Its unique design can be used in external and internal areas. It features an extended bandwidth. It has a low pattern of radiation much higher than the typical gain antenna out there. This makes it most ideal for use in ground and ceiling mounts.

NMO Antenna Specifications (without cable).

Frequency Band (MHz)	698-800 / 824-894 / 880-960 / 1710-1880 / 1850-1990 / 2110-2700.
Signal Gain On Each Freq. Band	1.9dB / 5.1dB / 3.1dB / -4.0 / 6.1dB / 2.3dB.
Polarization	Vertical.
Impedance	50 Ohm.
Horizontal Beamwidth	360°.
Max Power	100 Watts.
Mount	3/4" NMO Mount (901150) [NOT INCLUDED].
Cable Type	14 ft. RG58 Cable with SMA Male Connector and NMO Mount [NOT INCLUDED].
Termination	NMO.

NMO Mounted Antenna Mechanical Specifications.

Model	314405.
Connector	NMO.
Dimensions (H x Diameter) (inches)	3.3 x 1.44.
Radome Material	High Heat ABS.
Antenna Color	Black.
Water Resistance	IPX Weather Rated.
Operating Temperature	-40 to +131.
