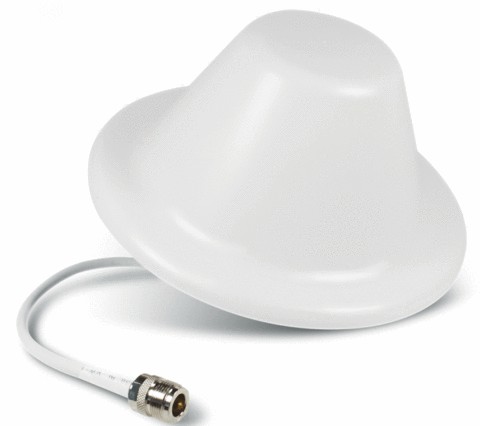

Elecbee Wide Band Dome Cell Antenna (50 Ohm) with TNC Connector (SC-222W-TNC)

SKU: E-201-2479

Favorites

Key Features

Description

Product Description

Wide Band Dome Cell Antenna (50 Ohm) with TNC Female Connector (SC-222W-TNC or SC222WTNC) works on all frequencies and mobile system platforms including 3G and 4G. It operates on 50 Ohm signal booster systems and is designed for all SureCall 7 series cellular amplifier kits such as the SureCall Fusion-7 and Force-7.

It is already included in those complete kits but this can be purchased separately to add to existing system for expanding indoor coverage in more indoor spaces and section / areas of any home, office, building. Since those kits are now discontinued, this antenna has also been discontinued by the manufacturer.

However, we have a few units of this in-building 50 Ohm dome antenna with TNC connector in stock (exact quantity in our inventory may be stated above beside the price, and near the "Add to Cart" button). If you do not see the quantity number there, it means we have more than 9 in stock. If you need more quantities, please call in advance to make sure we have that many in stock.

SureCall SC-222W-TNC Dome Indoor Antenna Set Up.

This full-band antenna is an omni-directional antenna designed to cover 360 degrees for 2G/ 3G/ 4G and WLAN systems for Cellular, PCS, AWS and LTE frequencies. It is a high gain indoor antenna suited for places where the signal needs to be broadcast over a central area or space. This ceiling mount antenna transmits and receives signal to cell phones.

Installation Steps.

1. Choose a location on the portion of the ceiling that is accessible from above so you can run antenna cable to signal booster or amplifier. Please make sure the location you choose for this inside antenna allows for necessary separation between this inside and another outside external antenna you have or plan to install (antenna separation is helpful to prevent oscillation).

2. Drill a 3/8 of an inch diameter hole in your ceiling. The ceiling thickness should be atleast half an inch to support this dome shaped indoor antenna.

3. Unscrew fixing nut from dome antenna. Place antenna cable through that hole. Screw fixing nut back onto antenna base and cable on an attic side of ceiling, and fasten.

4. Attach the connection from this interior dome shaped antenna to the cable leading to your amplifier or booster with connector marked, "Inside".

5. Finally, you can easily hand-tighten fixing nut to secure this internal antenna.

Storage and transportation: Place in a non-extreme room temperature and dry environment. Not to be placed near fireplace or any open flame.

SureCall SC-222W Specifications.

Frequency	698-960/ 1700-2700
Input Impedance	50 ohm
Antenna Gain	2±0.5dBi/ 5±0.5dBi
Beamwidth	360 Degrees
VSWR	≤2.0
Polarization Type	Vertical
Radiation	Omni-directional
Maximum Power	50W
Connector type	TNC-Female
Cable type	CM240 / CM400 / SC400
Height (inches)	3.5”
Diameter	7.25”
Weight	10.5 oz
Ground Plane	Built in ground plane
Mount	Mounts to ceiling
Color	White
