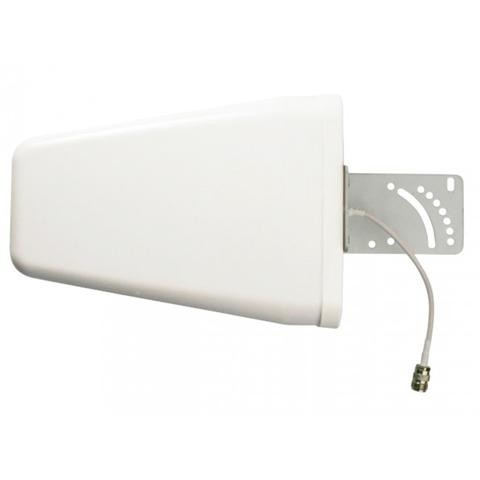

Elecbee Short Yagi Antenna (Directional, Full Band, 50 Ohm)

SKU: E-201-2441

Favorites

Key Features

Description

Product Description

Full Band Short Yagi Directional Antenna operates on 50 Ohm systems. This wide spectrum directional cell antenna is also more accurately called a log-periodic dipole array or LPDA antenna because it covers a wider frequency spectrum than traditional Yagi antennas.

Provides antenna reception Gain of 7.5 dB on 698 MHz to 806 MHz frequency, 8.5 dB on 806 MHz to 960 MHz frequency, and 10 dBi on 1710 MHz to 2700 MHz frequency. Purchase includes mounting kit as well. This shorter version of Yagi is also a directional antenna that is designed to be used in areas of weak cellular signal.

It is aimed directly at a cellular tower to provide the maximum connectivity. Antenna covers 2G, 3G, 4G LTE and WLAN systems, for full data coverage and access. It is weather resistant. It is easy to install. Once up and running, the Yagi short antenna gives you faster data speed, and improved cellular signal.

Wide band directional Yagi antenna is arguably one of the best antennas in terms of performance out there. With an impedance of 50 Ohm, the antenna is a high gain type, best for outdoors. Point it towards the cellular tower that is not only unobstructed but also the nearest. Do point it to the cell tower that belongs to the Carrier whose signals need to be boosted. This 3G and 4G antenna is created with the ability to cover diverse systems for the LTE, AWS, PCS and Cellular such as WLAN, 4G, 3G and 2G.

Summary:

Outside use.
Directional.
7.5 dB to 10 dB Gain.
2G, 3G, 4G, WLAN.
Full Band, Short Version Yagi.
Easy to install.
Includes mounting equipment.

These directional Yagi antennas are two of the best performing antennas on the market today. They are high gain outdoor antennas that should be pointed toward the nearest cellular tower. The 4G antenna is designed to cover 2G/ 3G/ 4G and WLAN systems for Cellular, PCS, AWS and LTE frequencies. This wide band or full band antenna is designed to work with wide-band or full-band in-building amplifiers for Cellular, PCS, and AWS bands.

Specifications.

Frequency.	698 - 806/ 806 - 960/ 1710 - 2700 MHz.
Input Impedance.	50 ohm.
Antenna Gain.	7.5 dB/ 8.5 dB/ 10 dBi.
Beamwidth.	E50 H85/ E60 H85/ E50 H60.
VSWR.	≤1.8.
Polarization Type.	Vertical.
Radiation.	Directional.
Maximum Power.	50 Watts.
Connector type.	N-Female or customized.
Cable type.	SC400 or SC240 recommended.
Fits:	Type 400 Cable with N-Male Connector.
Mount.	Mount on the roof.
Operating Temperature.	-22°F to +176°F.
Color.	White.
UPC.	697691007380.

Set Up & Installation Instructions.

Yagi antenna is a directional antenna. Directional antennas need to be pointed toward the nearest cellular tower for the best results. Yagi antenna includes mounting equipment (U-Bolts) to attach to a pole, 1.5 inch - 2 inch in diameter (pole not included).

1. Install U-bolt on pole.

2. Slide pipe clamp over U-Bolt, flat side away from pipe.

3. Slide antenna bracket onto U-Bolt in desired location.

4. Install flat washer, split lock washer and nut, tighten as appropriate.
