Elecbee Outside Cell Antenna For RV, Truck

SKU: EB-201-2427

Favorites

Key Features

Equipped with a 25 ft. length of RG-6 cable to the Outside Antenna.
Versatile, modular antenna design with a 9.5 inches to 28.5 inches height range.
Additional hardware includes side-exit adapter and spring base.
Allows for optimal placement within even the largest-sized RVs.
Elevates Outside Antenna above any RV cab to optimize performance.
Offers more mounting options and added durability in high wind.

Technical Specifications.

Model Number	311224.
Frequency Band (MHz)	698-806, 806-960, 1710-1880, 1900-2200, 2200-2700.
Peak Gain (dBi)	1.4, 2.4, 2.8, 2.3, 3.5.
Efficiency (%)	85.3, 87.2, 78.6, 75.9, 80.
Half-Power Azimuth Beamwidth (°)	360.
Half-Power Elevation Beamwidth (°)	91.9, 69, 48.9, 66.6, 33.
VSWR	<2:1.
Impedance	50 Ohm.
Maximum Input Power	50 watts.
Antenna Type	Wide-Band Directional.
Connectors	SMA Female.
Polarization	Vertical.
Antenna Dimensions	12 x 2.25 inches.
Antenna Shipping Dimensions	14.25 x 6.25 x 4.5 inches.
Weight	0.75 lbs.
Radiator Material	Aluminium.
Radome Material	Acrylonitrile Styrene Acrylate (ASA).
UPC	810005960885.

xa0

RV Antenna Kit Contents:

Outside Antenna, 25 ft. RG-6 Cable & Mast Extension.
Side-Exit Adapter & Spring.
Antenna Mount with Thread Lock.

Description

RV & Truck OTR Antenna | weBoost 311224 by Wilson Electronics / WilsonPro.

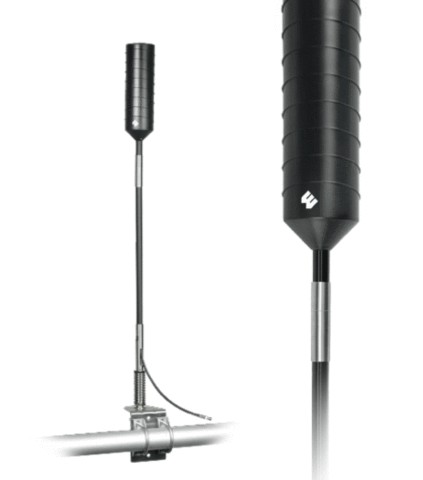

The RV Outside Antenna is an omni-directional, wideband antenna. It is designed for use with RVs and in-vehicle boosters. Its versatile, modular design allows it to expand from 9.5 inches to 28.5 inches in height. That height is well above any RV cab's obstructions to optimize performance.

With its side-exit adapter and hardware, Drive X RV Outside Antenna fits CB-antenna mounts and RV ladders. Its optional spring base helps protect against high winds and tree branches.

Specs. summary: 50 Ohm impedance. Omni Directional Antenna Function. Spring Mount with Side Exit Adapter. Mast Extension. 25 ft. RG58 Cable with SMA Male to SMA Male Connector.

This Drive X RV Outside Antenna comes equipped with a 25 feet length of RG6 cable to easily reach inside even the largest-sized RVs to wherever the booster is installed.
