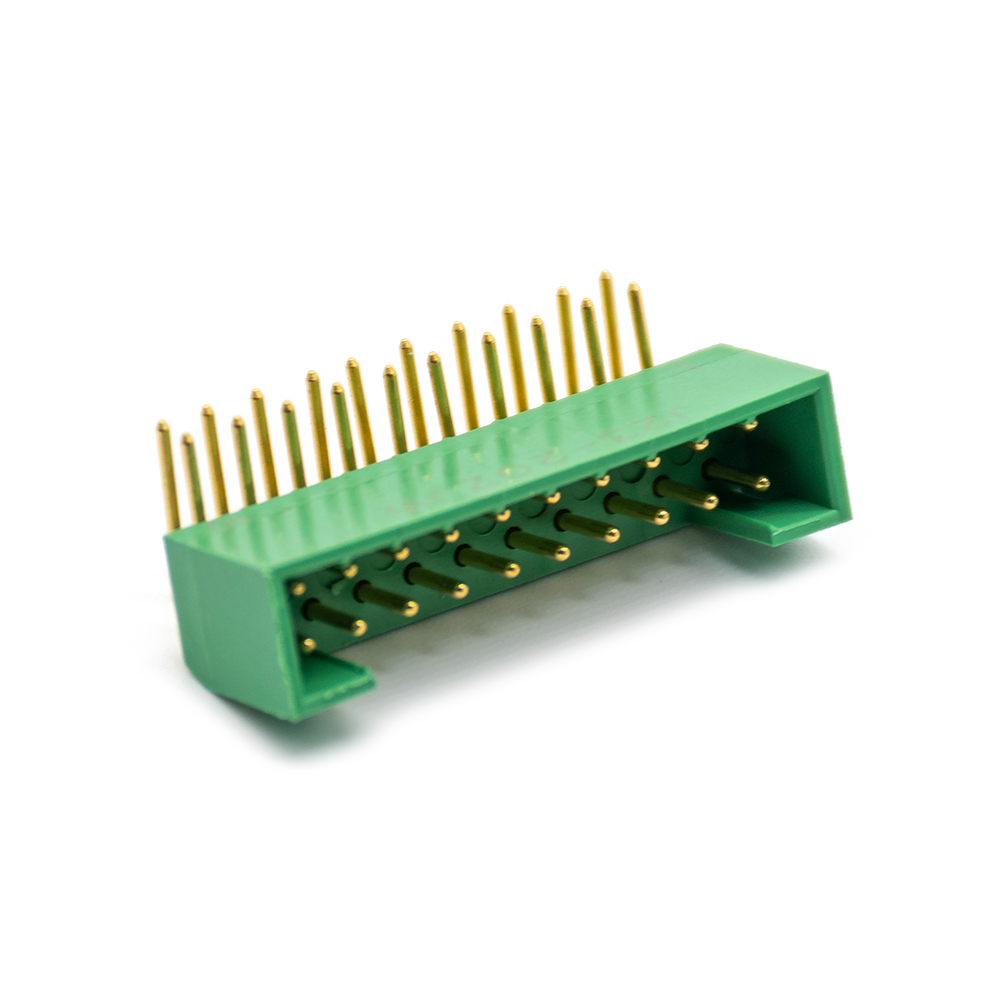

Elecbee JL23, Printed Circuit Connector, 20-Pin Male Soket, 90° Angle, Through Hole

SKU: EB-JL23-20ZJW

Favorites

Key Features

Features:

sockets,2,20,2.54mm,PCB Soldering,90° Bend,green,3.0A,300V,1000V AC,≤10mΩ,5000 MΩ Min,-65℃~+125℃,Gold,PA66,UL94 V-0

The jack adopts a Φ0.76 single-leaf rotary hyperbolic wire spring hole structure, the contact is gold-plated, and the performance is reliable;

Standard double row 2.54mm spacing, board-to-wire connection, wire core cross-section area 0.15mm2~0.2mm2 (default supply);

High quality original factory shipment, 30-day worry-free return and exchange;

From brand OEM original factory wholesale, same quality, more affordable price
