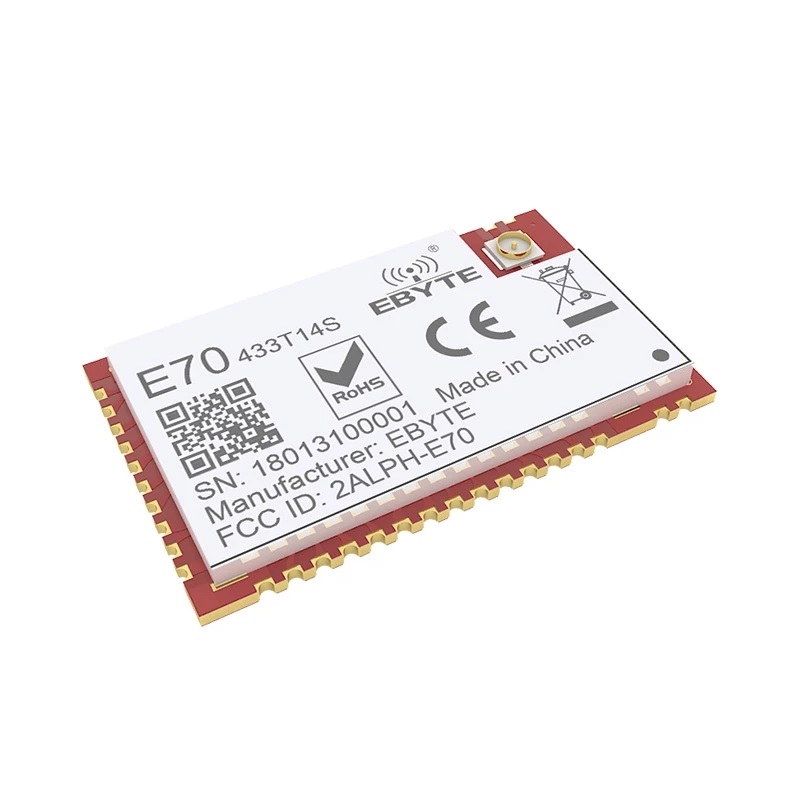

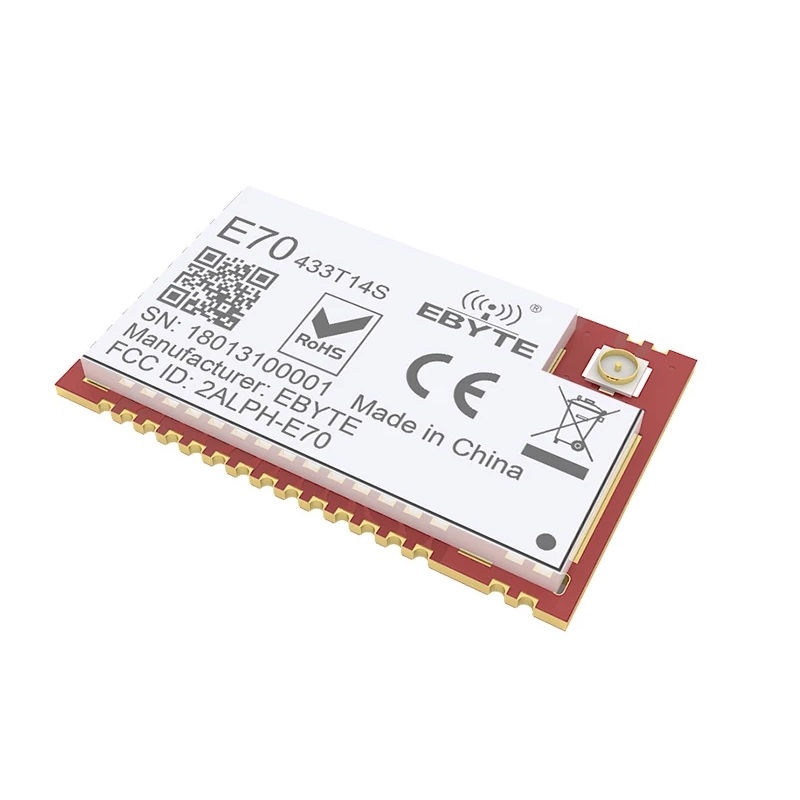

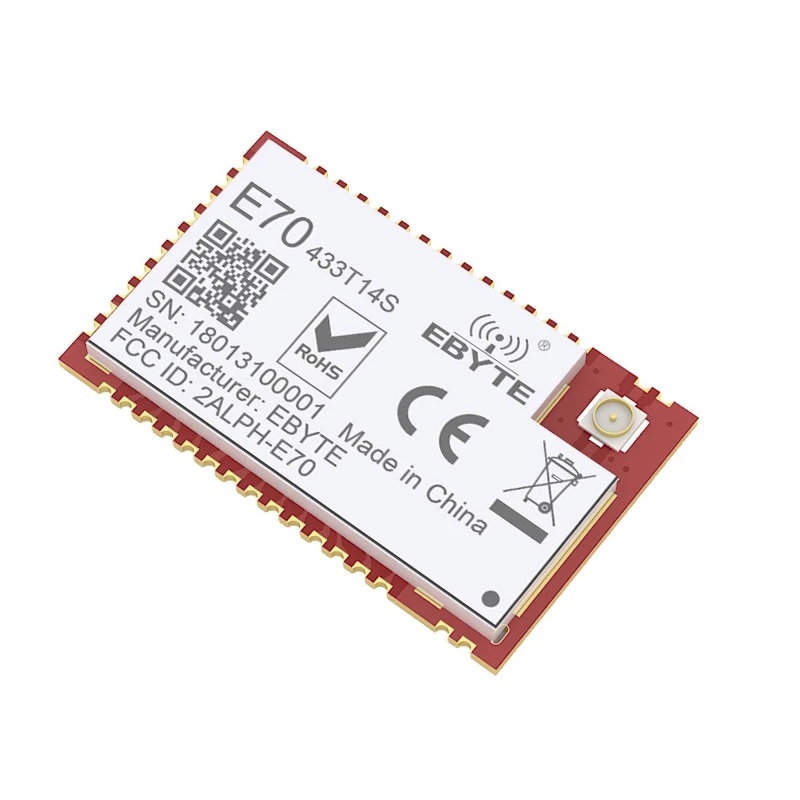

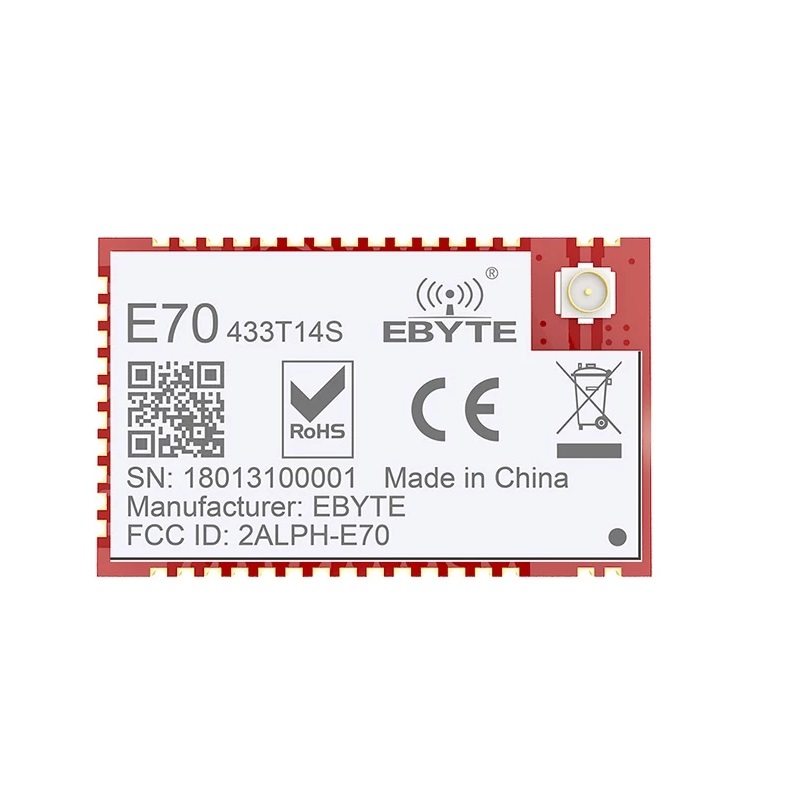

Elecbee E70-433T14S CC1310 14dBm 433MHz RF Module Transceiver Lower Power SMD SOC UART Wireless Receiver
SKU: EB0042958
Favorites
Key Features
Show More
In-Stock
Qty.
1
Unit Price
$ 8.75$ 10.29
Ext. Price
$ 8.75$ 10.29
$ 8.75$ 10.29
Description
Specification:
RF Parameter | Value | Remark |
Working frequency | 425~450.5 MHz | Default: 433MHz (24MHz oscillator) |
Transmitting power | 4~14dBm | Default: 14dBm(About 25mW) |
Receiving sensitivity | -110 dBm | Air data rate: 50kbps |
Air data rate | 2.5k~168kbps | Default: 2.5kbps |
Test distance | 1500m | In open and clear air, with maximum power, 5dBi antenna gain, height of 2m, air data rate: 2.5kbps |
Hardware Parameter | Value | Remark |

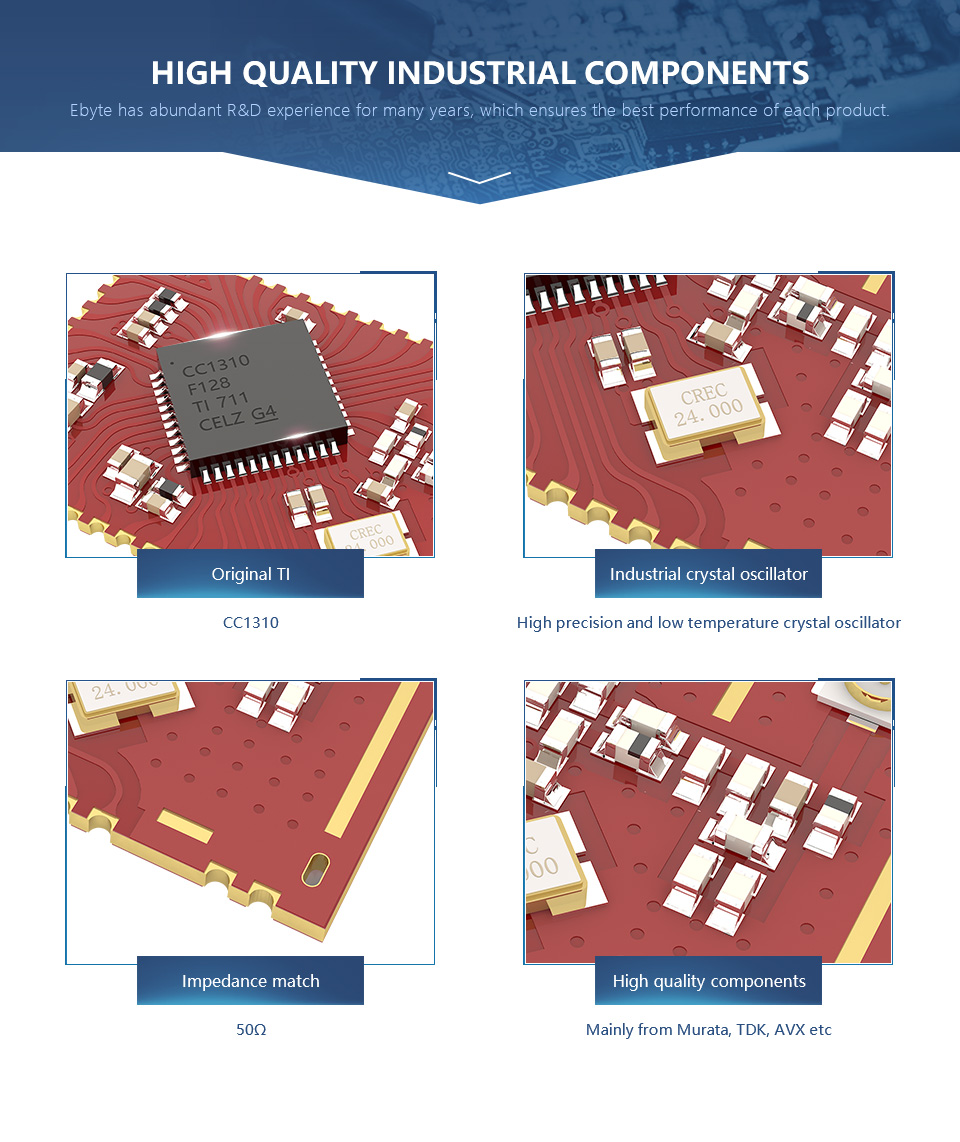

IC | CC1310F128RGZ |
|
FLASH | 128 KB |
|
RAM | 20 KB |
|
Core | COOCortex-M3(MCU)+Cortex-M0(RF) |
|

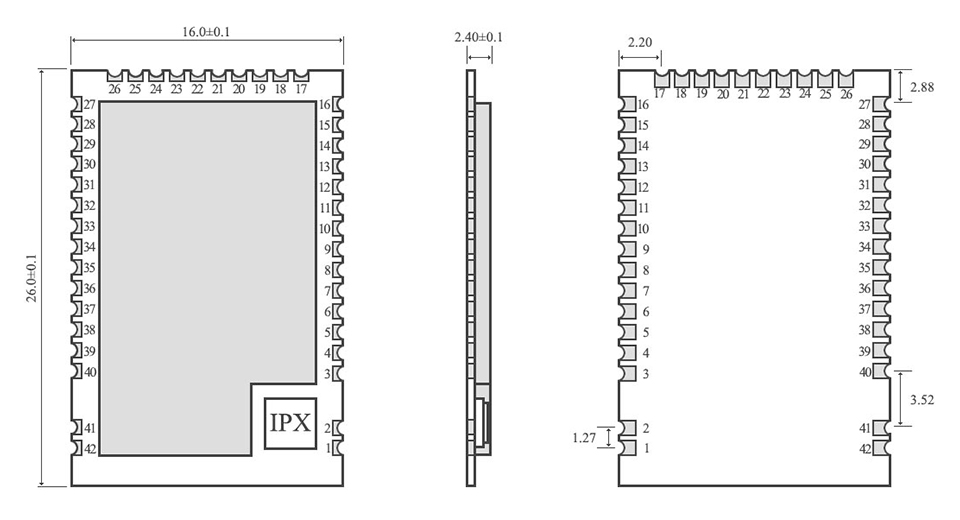

Size | 16* 26mm | Without SMA |
Antenna type | IPEX / Stamp hole |
|

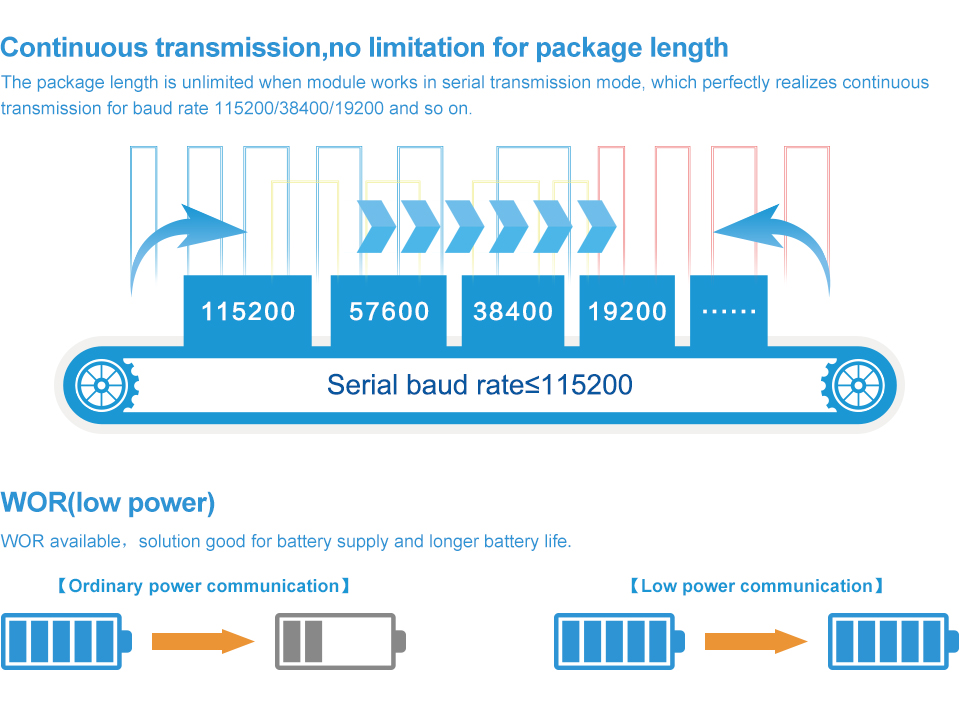

Communication interface | UART | Baud rate: 1200~115200, default: 9600 |
Package | SMD |
|
Buffer | 2048 bytes buffer | Defined by user |
Electronic parameter | Min. | Typ. | Max. | Unit | Condition |
Power supply | 2.1 | 3.3 | 3.8 | V |
|
Communication level | 2.1 | 3.3 | 3.8 | V |
|
Transmitting current | 25 | 27 | 30 | mA | 14dBm（25mW） |
Receiving current | 7 | 8 | 9 | mA |
|
Sleep current | 0.5 | 1.0 | 2.5 | μA |
|
Operating temperature | -40 | 20 | +85 | ℃ |
|
Operating humidity | 10 | 60 | 90 | % |
|
Storage temperature | -40 | 20 | +125 | ℃ |
|
Package included:
1 x RF Transceiver Module
